TPR400-05 Rotating Nozzle | 5800 PSI Extreme Turbo

TPR400-05 Rotating Nozzle | 5800 PSI Extreme Turbo

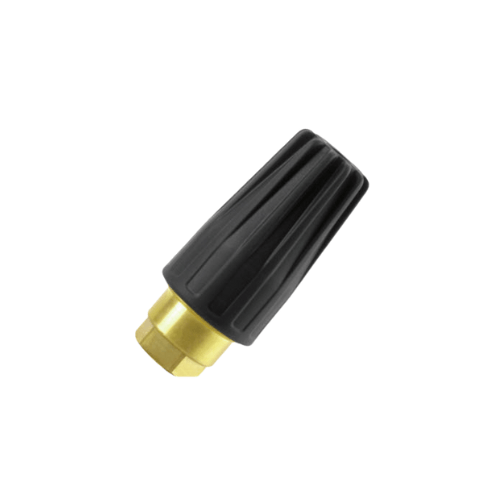

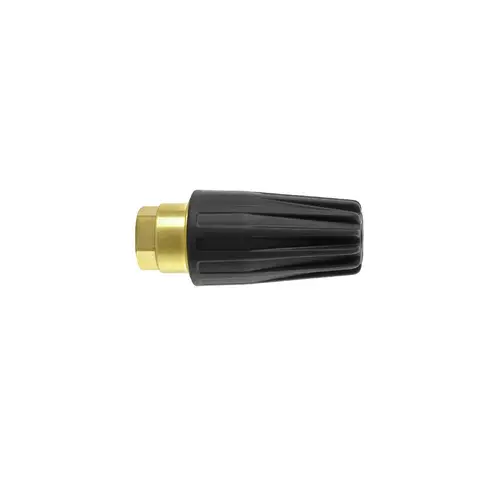

The Annovi Reverberi TPR400-05 Rotary Turbo Nozzle delivers high-flow, high-impact rotary cleaning performance for contractors and industrial users who need to move quickly across large surfaces. Equipped with a 5.0 orifice, a reinforced 1/4″ F inlet, and a maximum operating pressure of 5,800 PSI, this nozzle generates a powerful rotating jet capable of removing heavy contamination, scale, grease, and stubborn embedded debris. The increased flow rate of the 5.0 size makes it ideal for high-GPM units and large-area cleaning.

Constructed on AR’s reliable TPR400 high-pressure nozzle platform, this model features a brass body, precision ceramic orifice, and balanced rotor mechanism designed for long-term durability. Rated to 212°F, it works flawlessly with hot-water systems used in sanitation, degreasing, and industrial restoration. The TPR400-05 is an excellent choice when you need both speed and serious cutting action on demanding jobs.

Key Specifications

• Model: TPR400-05
• Nozzle Size: 5.0
• Max Pressure: 5,800 PSI
• Max Temperature: 212°F
• Inlet: 1/4″ female
• Spray Pattern: 20° rotating cone
• Body: Brass
• Orifice: Ceramic

Performance & Design Highlights

• High-flow 5.0 orifice: Moves more water for faster cleaning of large pads, walls, decks, and industrial surfaces.
• Rotary zero-degree jet: High-speed spinning stream multiplies impact energy for deep penetration.
• Hot-water capable: Fully rated for 212°F, ideal for grease-heavy industrial work.
• Contractor-grade durability: Built for daily use in harsh environments.

Typical Applications

• Large surface cleaning: Parking lots, warehouse floors, loading docks.
• Industrial equipment: Mixers, conveyors, tanks, machinery.
• Fleet maintenance: Trucks, buses, agricultural equipment.
• Restoration & prep: Removing coatings, sealers, grime prior to resurfacing.

Sizing & Compatibility

• Match the 5.0 orifice with higher-GPM machines.
• Do not exceed 5,800 PSI or 212°F.
• Fits standard 1/4″ F spray wands, guns, and QC adapters.

Maintenance

• Flush system before attaching nozzle.
• Start spray on durable surface while rotor accelerates.
• Adjust standoff distance for desired impact level.
• Inspect regularly and replace worn components promptly.
