TPR350-035 Rotating Nozzle | 5075 PSI Turbo Cleaner

TPR350-035 Rotating Nozzle | 5075 PSI Turbo Cleaner

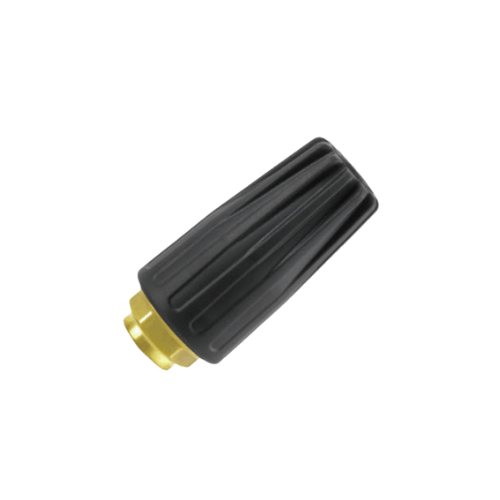

The Annovi Reverberi TPR350-035 Rotary Turbo Nozzle is a high-pressure rotating nozzle
designed for professionals who need aggressive cutting performance combined with a slightly broader,
more forgiving cleaning path. Featuring a 3.5 orifice size, a durable
1/4-inch female inlet, and a maximum operating pressure of
5,075 PSI, this turbo nozzle converts pressurized water into a high-speed,
rotating zero-degree jet that delivers exceptional impact on tough surfaces.

As part of AR’s TPR350 high-pressure rotary series, the TPR350-035 is engineered for
commercial and industrial users who demand reliability under extreme working conditions. It is
well suited for concrete restoration, industrial washdown, surface preparation, and heavy-duty
maintenance tasks where standard fan nozzles lack the power to break through stubborn buildup.
The slightly larger cleaning footprint compared to smaller rotary nozzles helps increase
productivity while still maintaining deep, aggressive cutting action.

By spinning a focused zero-degree jet at high RPM, the TPR350-035 multiplies the effective impact
of the water stream. This rotating action repeatedly strikes the surface, creating a chiseling
and scrubbing effect that dislodges compacted grime, mineral deposits, grease, and embedded dirt
far more efficiently than static spray patterns. The result is faster cleaning, fewer passes,
and more uniform results across large or textured surfaces.

Construction and Materials

The TPR350-035 is built to withstand the rigors of professional use. Its heavy-duty
brass housing provides excellent structural strength and corrosion resistance,
making it suitable for harsh environments and frequent pressure cycling. The nozzle is equipped
with a ceramic orifice, chosen for its superior wear resistance and ability to
maintain a consistent jet profile over extended service life.

Rated for water temperatures up to 212°F (100°C), this nozzle is fully compatible
with hot-water pressure washers. Hot water dramatically improves cleaning efficiency when
removing oils, greases, organic films, and industrial residues, making the TPR350-035 a strong
choice for sanitation work, degreasing, and heavy industrial washdown.

The nozzle’s design also promotes controlled startup behavior. The internal rotor spins up
smoothly when pressure is applied, helping reduce sudden kickback and improving operator control.
This stability is especially beneficial when working on vertical surfaces, uneven concrete, or
in confined industrial environments where precision and predictability matter.

Key Specifications

• Model: TPR350-035 High-Pressure Rotary Turbo Nozzle
• Nozzle Orifice Size: 3.5
• Maximum Operating Pressure: 5,075 PSI (350 bar)
• Maximum Water Temperature: 212°F (100°C)
• Spray Pattern: 20-degree rotating cone
• Inlet Connection: 1/4-inch female (1/4″ F)
• Body Material: Brass housing
• Orifice Material: Ceramic tip
• Approximate Weight: 0.8 lb
• Application Class: Commercial and industrial heavy-duty cleaning

Performance and Design Highlights

The TPR350-035 is designed to deliver an effective balance between cutting power and surface
coverage. Its 3.5 orifice size allows a slightly higher flow rate than smaller rotary nozzles,
producing a wider cleaning path while still maintaining the intense impact associated with
high-pressure rotary jets.

• Balanced 3.5 orifice: Provides a strong blend of concentrated impact and
  productive coverage, ideal for users who want faster progress without sacrificing cleaning
  strength.
• 5,075 PSI capability: Built to handle extreme pressure levels required for
  removing hardened deposits, severe staining, and industrial contamination.
• Rotating zero-degree jet: The internal rotor spins the jet at high speed,
  dramatically increasing effective impact compared with fixed fan or straight-stream nozzles.
• 20-degree rotary cone: The spinning jet sweeps a circular footprint that helps
  reduce striping and produces more even results on flat, textured, or porous surfaces.
• Hot-water ready: Compatible with hot-water systems for faster breakdown of
  grease, oils, and organic residues in demanding cleaning environments.
• Stable startup behavior: Smooth rotor spin-up improves control and reduces
  sudden movement when pressure is applied.

Typical Applications

Thanks to its durability and aggressive yet controllable cleaning action, the TPR350-035 is used
across a wide range of professional cleaning and preparation tasks.

• Concrete and flatwork restoration: Ideal for parking areas, sidewalks,
  loading docks, warehouse floors, and drive lanes with embedded dirt, tire marks, and mineral
  staining.
• Surface preparation: Prepares concrete or steel for sealing, coating, or
  recoating by breaking down chalked coatings, old sealers, and stubborn residues.
• Fleet and heavy equipment cleaning: Effective on trucks, trailers,
  construction equipment, and agricultural machinery with compacted mud, oil film, and road
  grime.
• Industrial and municipal maintenance: Suitable for plant floors, wash bays,
  maintenance yards, and infrastructure exposed to heavy contamination.
• Hard-to-reach and confined cleaning zones: When paired with appropriate
  accessories, the rotating jet can scour durable surfaces in pits, drains, and tight-access
  areas.

Sizing and Compatibility Recommendations

Proper nozzle sizing is essential for safe operation and optimal performance. The TPR350-035 is
intended for use with professional-grade pressure washers and should be matched carefully to
pump output.

• The 3.5 orifice size is best matched with high-pressure machines that deliver
  sufficient GPM at working pressures between approximately 3,000 and 5,000 PSI.
• Do not exceed the maximum pressure rating of 5,075 PSI or the temperature
  limit of 212°F.
• The 1/4-inch female inlet threads onto most professional spray wands, guns, and quick-connect
  adapters.
• Due to its aggressive rotary action, the nozzle is not recommended for delicate materials
  such as soft wood, thin siding, lightweight plastics, or freshly applied coatings.
• Clean, filtered water and a well-maintained pressure system help minimize abrasive wear and
  extend nozzle life.

Maintenance and Best Practices

Routine maintenance and proper operation help ensure consistent performance and long service life
from the TPR350-035.

• Flush hoses, filters, and supply lines before use to prevent grit or debris from entering the
  ceramic orifice and rotor assembly.
• Allow the rotor to reach stable speed by starting the spray on a durable surface such as
  concrete before moving closer to critical areas.
• Adjust standoff distance to balance cutting power and surface protection, especially near
  edges, joints, or coatings.
• Inspect the nozzle regularly for changes in sound, spray pattern, or visible leaks, which may
  indicate internal wear.
• For high-use operations, keeping a spare nozzle or compatible repair kit on hand helps reduce
  downtime and maintain productivity.

The TPR350-035 Rotating Turbo Nozzle offers an excellent combination of pressure,
flow, and coverage for professionals who need reliable rotary cleaning performance. Whether used
for concrete restoration, industrial washdown, or surface preparation, it delivers the durability,
control, and cutting power required to handle demanding cleaning challenges efficiently.
