TPR255-06 Rotating Nozzle | 3700 PSI Turbo Cleaner

TPR255-06 Rotating Nozzle | 3700 PSI Turbo Cleaner

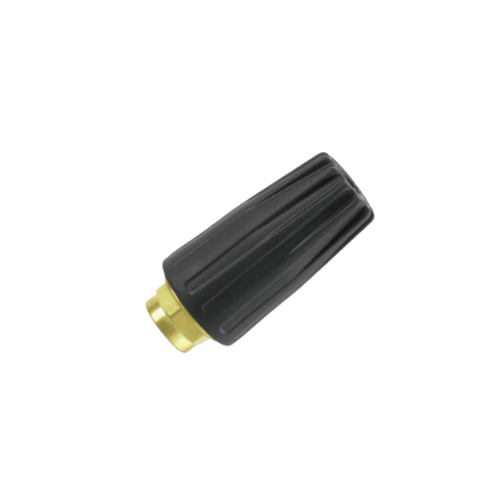

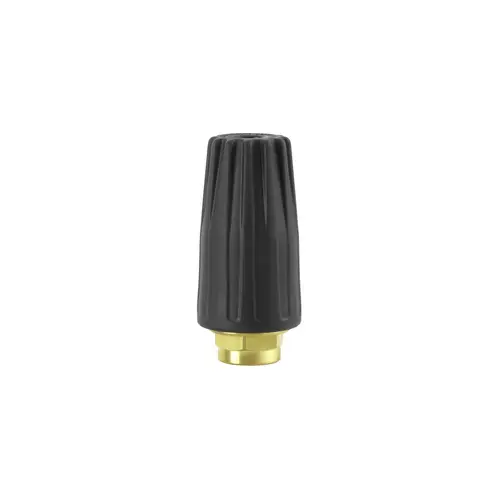

The Annovi Reverberi TPR255-06 Rotary Turbo Nozzle is a heavy-duty, high-flow rotating
nozzle engineered for professional pressure washing where aggressive cleaning power
and efficient coverage are both required. Designed for commercial and industrial
applications, this turbo nozzle combines the cutting force of a zero-degree jet with
the broader coverage of a rotating spray pattern. With a 6.0 orifice size and a
maximum working pressure of 3,700 PSI, the TPR255-06 is optimized for higher-flow
machines that need to remove stubborn buildup quickly and consistently.

Unlike standard fan tips that spread impact energy across a fixed angle, the TPR255-06
concentrates water into a high-energy jet and spins it rapidly in a circular motion.
This rotating action delivers intense cleaning force while covering more surface area
per pass, making it an excellent choice for large concrete slabs, steel structures,
industrial floors, and heavy equipment. The larger orifice size allows increased water
volume to drive the internal rotor, producing strong, stable rotation even under
continuous use.

Built on the proven TPR255-series platform, the TPR255-06 features a robust
brass housing paired with wear-resistant internal components. These internals,
typically ceramic or hardened alloy, are designed to withstand high pressure, elevated
water temperatures, and abrasive conditions common in industrial cleaning environments.
The result is a turbo nozzle that delivers reliable performance, long service life, and
consistent cleaning results when properly matched to the right pressure washer.

Key Specifications

• Model: TPR255-06 Rotary Turbo Nozzle
• Maximum Operating Pressure: 3,700 PSI (255 bar)
• Nozzle Orifice Size: 6.0 (high-flow configuration)
• Inlet Connection: 1/4-inch female inlet, compatible with common quick-connect and threaded adapters
• Spray Pattern: Rotating zero-degree jet forming a high-impact spinning cone
• Construction: Brass body with hardened or ceramic internal components
• Maximum Water Temperature: Approximately 210–212°F (hot-water compatible)
• Application Class: Professional commercial and industrial pressure washing

How the TPR255-06 Turbo Nozzle Works

At the core of the TPR255-06 is a precision-engineered internal rotor assembly. When
pressurized water flows through the 6.0 orifice, the increased volume spins the
rotor at high speed. This converts the focused zero-degree jet into a rapidly rotating
cone-shaped spray pattern that strikes the surface in a circular path.

• The rotating cone spreads impact energy evenly, reducing streaking while maintaining
  the aggressive cutting action of a straight jet.
• The larger orifice allows more water to pass through, making the nozzle particularly
  effective on large surfaces where coverage speed matters.
• Rotation increases cleaning efficiency by reducing the number of overlapping passes
  required compared to fixed fan tips.
• Operators often experience significantly faster job completion times, especially on
  expansive concrete or industrial floors.

Because the spray is constantly moving, the TPR255-06 delivers high impact without
holding pressure on a single point for too long. This helps reduce visible striping
and can make cleaning more uniform across wide areas.

Performance Advantages of the 6.0 Orifice

The 6.0 orifice size is designed for pressure washers with higher flow output.
Compared to smaller turbo nozzles, the TPR255-06 allows more water volume to reach the
rotor, resulting in stronger rotation and a wider effective cleaning path. This makes
it especially useful in applications where productivity and throughput are critical.

• Higher flow helps carry loosened debris away from the surface more efficiently.
• Larger coverage area reduces operator fatigue on long jobs.
• Improved rinsing action helps prevent redepositing dirt or slurry during cleaning.
• Well suited for industrial machines that prioritize GPM alongside PSI.

Typical Applications

The TPR255-06 is designed for demanding cleaning environments where standard fan nozzles
are too slow or ineffective. Its aggressive yet efficient spray pattern makes it a
versatile tool across many industries.

• Large concrete surfaces: Parking lots, warehouse floors, loading docks,
  fueling pads, and industrial slabs with embedded grime, oil, or tire marks.
• Heavy equipment cleaning: Construction machinery, agricultural equipment,
  trailers, and fleet vehicles with caked mud or grease.
• Industrial facility maintenance: Plant floors, wash bays, processing areas,
  and municipal maintenance facilities.
• Surface preparation: Concrete, block, brick, and masonry prep prior to
  sealing, coating, painting, or repair.
• Agricultural and municipal cleaning: Barn floors, yards, refuse areas,
  and other high-soil environments requiring sustained cleaning power.

Sizing and Compatibility Recommendations

Proper sizing is critical for turbo nozzle performance. The TPR255-06 is intended for
pressure washers capable of delivering sufficient water volume to fully drive the
internal rotor. Machines with inadequate flow may experience weak rotation or reduced
cleaning effectiveness.

• Verify your pressure washer’s PSI and GPM ratings before selecting a 6.0
  orifice turbo nozzle.
• Higher-flow gas or industrial electric machines are typically best suited for this
  nozzle size.
• The 1/4-inch female inlet allows quick-connect compatibility with most professional
  spray guns and wands.
• When used with hot-water systems, ensure all hoses, guns, and fittings are rated for
  elevated temperatures.
• Avoid use on delicate materials such as wood, thin siding, or painted surfaces
  without testing and increasing standoff distance.

Maintenance and Best Practices

Routine care helps maintain performance and extend the service life of the TPR255-06.
Turbo nozzles rely on tight tolerances and clean water flow, making proper filtration
and handling essential.

• Flush hoses and lines before attaching the nozzle to remove grit or debris.
• Start spraying away from the work surface to allow the rotor to spin up smoothly.
• Maintain a consistent standoff distance to balance cleaning power and surface safety.
• Inspect the spray pattern regularly for signs of wear or uneven rotation.
• Replace worn internals or the nozzle itself if performance drops or leaks develop.

When properly matched to the right machine and maintained correctly, the
TPR255-06 Rotating Turbo Nozzle delivers powerful, time-saving performance for
heavy-duty pressure washing. Its combination of high flow, aggressive impact, and
rotary coverage makes it an excellent choice for professionals who need reliable,
high-output cleaning on large and heavily soiled surfaces.
