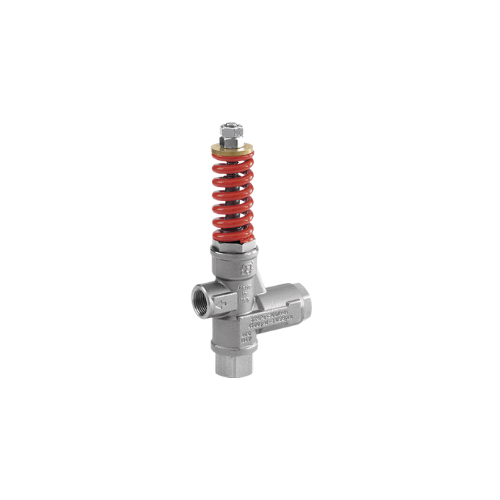

SVX-310 | Stainless Safety Valve 4500 PSI 3/8 in NPT Port

SVX-310 | Stainless Safety Valve 4500 PSI 3/8 in NPT Port

• The AR SVX-310 Safety Relief Valve is a precision-engineered stainless-steel
  overpressure protection component for industrial, commercial, and high-performance hydraulic systems.
• Rated for 4,500 PSI, it automatically relieves excess system pressure to prevent pump
  damage, burst lines, and seal failure in demanding applications.
• Built from 303 stainless steel with 3/8″ NPT female ports, it offers exceptional
  corrosion resistance and easy integration into standard pressure washer and hydraulic circuits.

Engineering & Construction

• Body Material: 303 stainless steel for corrosion resistance, mechanical integrity, and thermal stability.
• Port Size: 3/8″ NPT female threads for universal compatibility with common fittings and manifolds.
• Internal Assembly: Precision-machined stainless-steel spring and piston for smooth, friction-free movement.
• Sealing Elements: High-grade elastomer seals designed for heat resistance and long-cycle durability.
• Compact Design: Space-saving form factor ideal for mobile rigs, control blocks, and tight equipment layouts.

Functional Advantages SVX-310 | Stainless Safety Valve 4500 PSI 3/8 in NPT Port

• Automatic Overpressure Relief: Opens instantly when system pressure exceeds 4,500 PSI, venting excess fluid to stabilize the circuit.
• Self-Reseating Operation: Mechanism automatically reseals when pressure normalizes—no manual reset or recalibration needed.
• Repeatable Accuracy: Tight manufacturing tolerances and calibrated spring ensure consistent activation at the rated threshold.
• Flow-Efficient Design: Minimizes backpressure and turbulence, maintaining optimal hydraulic performance while relieving pressure.
• Corrosion Resistance: 303 stainless composition resists oxidation, scaling, and pitting in wet, chemical, or humid environments.

Installation & Maintenance

• Simple Installation: 3/8″ NPT threads allow direct installation into manifolds, pump heads, or control blocks with standard tools.
• Low Service Requirements: Periodic inspection and cleaning of the seat and spring assembly are typically all that’s required.
• Fast Replacement: Compact, threaded design enables quick swap-out during scheduled maintenance or upgrades.
• Hot or Cold Fluids: Suitable for use in systems handling both heated and ambient-temperature liquids.

Safety Role & Applications

• Secondary Safeguard: Works alongside unloaders, regulators, and control valves as a redundant layer of protection.
• Failure Protection: Prevents catastrophic damage during unloader malfunctions, blocked discharge lines, or operator error.
• Typical Uses: Industrial and commercial pressure washers, hydraulic power units, marine cleaning systems, fluid transfer lines, and process machinery.

Quality & Testing

• Each valve is factory-tested and calibrated by AR North America to verify activation pressure, reseating reliability, and leak-free performance.
• Internal components are manufactured to tight tolerances, ensuring precise, repeatable response over thousands of pressure cycles.

Key Specifications

• Model: AR SVX-310 Safety Relief Valve
• Working Pressure: 4,500 PSI
• Body Material: 303 stainless steel
• Ports: 3/8″ NPT female
• Function: Automatic overpressure relief with self-resetting piston and spring assembly
• Media: Compatible with water, detergents, and many industrial chemicals (check chemical compatibility requirements).

SVX-310 | Stainless Safety Valve 4500 PSI 3/8 in NPT Port

• The AR SVX-310 combines a 4,500 PSI rating, 3/8″ NPT connections, and durable
  303 stainless-steel construction to deliver reliable, maintenance-light overpressure protection
  for high-demand fluid systems.
• Its compact footprint, corrosion resistance, and precision self-resetting design make it a trusted
  safeguard for professionals who require the highest level of pressure control, safety, and long-term
  reliability in their equipment.
