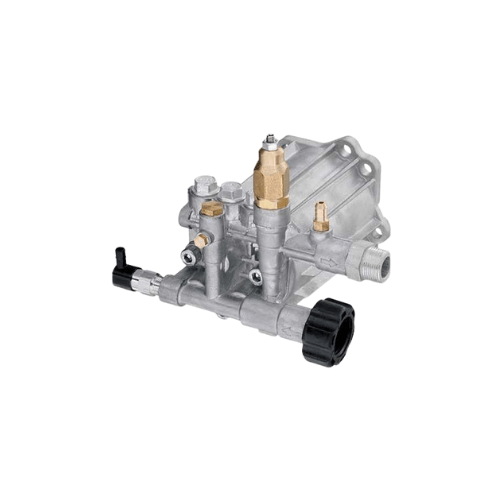

SRMV22G26-EZ-PKG | 2.2 GPM 2600 PSI EZ Pressure Pump Package

SRMV22G26-EZ-PKG by Annovi Reverberi — Complete SRMV Series Axial Radial Pump Package | 2.2 GPM | 2,600 PSI | Aluminum Manifold Head | Easy Start | F7 3/4″ Shaft | Fixed 12% Injector | Thermal Relief | 22mm Outlet | 5,720 Cleaning Units

The SRMV22G26-EZ-PKG by Annovi Reverberi is a complete, installation-ready SRMV Series axial radial pump package engineered for direct drive gas engine-powered pressure washing systems requiring 2.2 GPM at 2,600 PSI with Easy Start zero-back-pressure startup from the higher-pressure SRMV platform. Rated at 2.2 GPM and 2,600 PSI, the SRMV22G26-EZ-PKG delivers 5,720 cleaning units — through an aluminum manifold head precision-engineered for the elevated SRMV pressure specification, ceramic pistons, Easy Start technology, a fixed 12% chemical injector, thermal relief protection, and a 3/4″ hollow F7 shaft for direct coupling to compatible 5–7 HP gasoline engines — all in one organized, factory-assembled box. The SRMV Series is Annovi Reverberi’s higher-pressure axial radial platform, delivering elevated PSI capability above the standard RMV operating range in the same compact, rebuildable, direct-drive axial format. Backed by AR North America’s nationwide service network. Protected by a 2-year US limited warranty. Fully rebuildable. As part of Annovi Reverberi’s pump package lineup stocked and supported by WSHPWR, the SRMV22G26-EZ-PKG is the complete Easy Start solution for residential and contractor operators who need the SRMV elevated pressure specification with the simplest startup experience on every pull.

Everything in One Box — The SRMV22G26-EZ-PKG Complete Package Contents

SRMV Higher-Pressure Platform. Aluminum Head. Easy Start. 2,600 PSI. Factory-Assembled.

• SRMV22G26 axial radial pump with aluminum manifold head and Easy Start — factory-assembled and ready to mount. Aluminum manifold head precision-engineered for 2,600 PSI SRMV specification, ceramic pistons, Easy Start bypass circuit for zero-back-pressure startup. 3/4″ hollow F7 shaft for direct 5–7 HP gasoline engine coupling at 3,400 RPM. 7.5 lbs.
• Easy Start (EZ) feature — bypass circuit opens at startup, pump starts against zero hydraulic back pressure. Engine engages freely, builds to 2,600 PSI at operating speed. Every startup is the easy startup. Less pull-cord effort. Less starter wear. Longer engine life.
• Fixed 12% chemical injector — integrated. Connect the chemical tube and filter — system draws detergent automatically at the correct 12% draw rate. No separate injector required.
• Chemical tube and chemical filter — complete detergent delivery assembly. Flush with clean water after every chemical use.
• Easy-grip swivel type garden hose adapter — swivel design for tool-free hookup to standard garden hose supply lines.
• Stainless steel filter screen — inlet particulate protection for the aluminum manifold head and ceramic pistons.
• Thermal relief protection valve — auto-activates during extended bypass, vents hot water, draws cooler supply. Auto-resets when temperature normalizes.
• Hex Allen style low-profile fasteners with locking washers — vibration-resistant mounting hardware for secure engine-to-pump installation.
• 22mm outlet threads — universal pressure washer hose connection.
• Operations manual with parts schematic — complete procedures with every AR North America part number for every serviceable component in the SRMV22G26-EZ-PKG.

Decoding the SRMV22G26-EZ-PKG

What This Annovi Reverberi Designation Tells You

• SRMV — Pump series: SRMV Series axial radial pump — Annovi Reverberi’s higher-pressure RMV platform with aluminum manifold head, engineered for sustained performance at elevated PSI ratings above the standard RMV specification
• 22G — Pump series identifier: 2.2 GPM flow rate
• 26 — Maximum pressure: 2,600 PSI — 2.2 × 2,600 = 5,720 cleaning units
• EZ — Easy Start: bypass circuit opens at startup for zero back-pressure engine engagement; system builds to operating pressure once engine reaches running speed
• PKG — Complete package: SRMV pump with aluminum head and Easy Start, 12% injector, chemical tube and filter, swivel GHA, stainless filter screen, thermal relief valve, hex Allen locking fasteners, 22mm outlet, and operations manual with parts schematic

SRMV PKG Family — Choosing the Right Pressure Rating

Both models share the SRMV Series aluminum manifold head platform and F7 3/4″ shaft. Pressure rating and Easy Start drive the selection:

• SRMV22G26-EZ-PKG (this model) — 2,600 PSI / 5,720 CU / aluminum head / Easy Start. The preferred specification when effortless startup on every pull is a priority alongside elevated PSI performance.
• SRMV22G28D-PKG — 2,800 PSI / 6,160 CU / aluminum head / standard direct drive. Higher pressure at the SRMV platform ceiling for machines originally rated at 2,800 PSI.

Key Specifications

SRMV22G26-EZ-PKG Technical Details at a Glance

• Flow Rate: 2.2 GPM (8.3 L/min)
• Maximum Pressure: 2,600 PSI (173 bar)
• Cleaning Units: 5,720 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Power Required: 3.9 EBHP minimum
• Pump Type: SRMV Series axial radial — higher-pressure RMV platform, wobble plate design, fully rebuildable
• Manifold/Head: Aluminum — SRMV higher-pressure platform specification
• Pistons: Ceramic
• Bore Diameter: 12mm / Stroke: 8.3mm

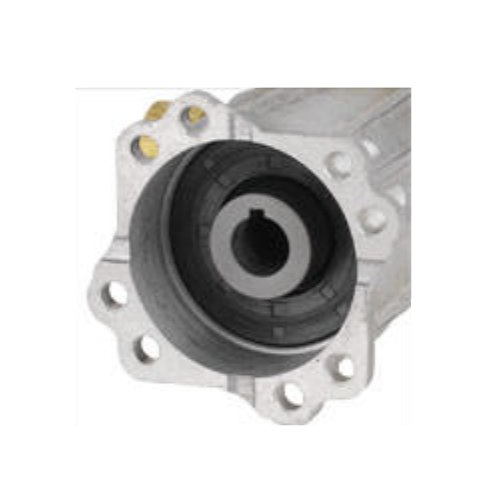

• Shaft: D — 3/4″ hollow keyway, F7 SAE J609a flange, direct drive gas engine
• Inlet: 3/4″ GHA
• Outlet: 22mm × 1.4 M threads — universal pressure washer hose connection
• Max Temperature: 140°F
• Oil Capacity: 2.2 oz
• Weight: 7.5 lbs
• Easy Start: EZ — zero back-pressure startup
• Chemical Injector: Fixed 12% — integrated
• Thermal Relief: Included — auto-activates and auto-resets
• Inlet Adapter: Easy-grip swivel type garden hose adapter
• Filtration: Stainless steel filter screen
• Fasteners: Hex Allen low-profile with locking washers
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 2-year limited warranty — US-based coverage through Annovi Reverberi North America

Engine Compatibility — What Drives the SRMV22G26-EZ-PKG

F7 SAE J609a. 3/4″ Hollow Shaft. 3.9 EBHP Minimum. Any 5–7 HP Engine Has Comfortable Overhead.

• Harbor Freight Predator 224cc / 6.6 HP Max Performance — the preferred Predator pairing. 6.6 HP — well above the 3.9 EBHP minimum. 3/4″ keyway shaft. Easy Start makes every startup effortless regardless of engine condition.
• Harbor Freight Predator 212cc / 6.5 HP — 3/4″ keyway shaft. 6.5 HP — comfortable overhead above minimum. Compatible.
• Honda GX200 / 5.5 HP — 196cc, 3/4″ keyway shaft. 5.5 HP — well above the 3.9 EBHP minimum. Direct-mount compatible with the SRMV22G26-EZ-PKG F7 flange.
• Briggs & Stratton XR950 — 3/4″ keyway shaft. Compatible for residential builds.
• Kohler CH270 / Command series — 3/4″ keyway shaft. Compatible for applicable configurations.

SRMV Series — The Higher-Pressure Axial Platform

• Elevated PSI in a compact axial format — the SRMV22G26-EZ-PKG delivers 2,600 PSI from the same compact, direct-drive axial design as the standard RMV platform. Where the RMV25G24-PKG covers the 2,400 PSI residential specification, the SRMV22G26-EZ-PKG steps up to 2,600 PSI while maintaining the compact form factor, manageable weight, and full rebuildability that the axial platform is known for.
• Fully rebuildable — every wear component in the SRMV22G26-EZ-PKG — aluminum head seals, ceramic pistons, chemical injector, thermal relief valve, stainless filter screen — is individually available through AR North America’s nationwide distribution. Rebuild it when the time comes. Keep running.
• Easy Start on every pull — the EZ bypass circuit eliminates hydraulic back pressure at startup. On machines that start dozens of times per week across a full season, the reduced starter stress translates directly to longer recoil starter service life and fewer cold-start frustrations.
• Match the nozzle to the pressure — at 2,600 PSI and 2.2 GPM, nozzle selection drives cleaning effectiveness on every surface. Explore WSHPWR’s complete selection of spray nozzles and rotating heads to get the full performance from this pump package.

Typical Applications

• Residential pump replacement at the elevated SRMV pressure level — the SRMV22G26-EZ-PKG is the correct specification for operators replacing a worn pump on a residential machine originally running at 2,600 PSI with the SRMV platform construction
• Residential exterior cleaning — driveways, siding, decks, patios, and vehicles — aluminum head 2,600 PSI performance with Easy Start and integrated 12% chemical delivery
• Property maintenance contractors — complete kit format, Easy Start, integrated chemical delivery, and AR North America parts availability for contractors running 5–7 HP compact gas platforms
• Agricultural equipment rinse-down and barn cleanup — stainless filter screen and thermal relief protection for agricultural operating conditions; Easy Start on cold mornings

2-Year US Warranty, Nationwide Service Centers, and Wholesale Pricing

Engineered for Professional Pressure Washing. Backed Across North America. Rebuildable.

The SRMV22G26-EZ-PKG is protected by Annovi Reverberi’s 2-year limited warranty through the US-based warranty and service network administered by AR North America. Every wear component is stocked nationally through authorized AR North America service centers. Contractors, residential users, agricultural operations, OEM builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the SRMV22G26-EZ-PKG and the complete WSHPWR pump package lineup.

5,720 Cleaning Units. 2,600 PSI. 2.2 GPM. SRMV Aluminum Head. Easy Start. Fixed 12% Injector. F7 3/4″ Shaft. Everything in One Box.

Annovi Reverberi SRMV Series. Higher-Pressure Platform. Easy Start. Fully Rebuildable. Nationwide Service. 2-Year US Warranty.

The SRMV22G26-EZ-PKG is the higher-pressure Easy Start solution for residential users and contractors who need 2,600 PSI with the simplest startup experience on every pull. SRMV aluminum manifold head. Easy Start. Fixed 12% integrated injector. Swivel garden hose adapter. Stainless filter screen. Thermal relief valve. Hex Allen locking fasteners. 22mm outlet. Operations manual with parts schematic. Two-year US warranty. Nationwide service centers. 7.5 lbs. Fully rebuildable.

Volume buyers can reach the WSHPWR wholesale team at wholesale@wshpwr.com.
