SNA1-TPR10 Sewer Nozzle 4350 PSI Thrust 6 Front

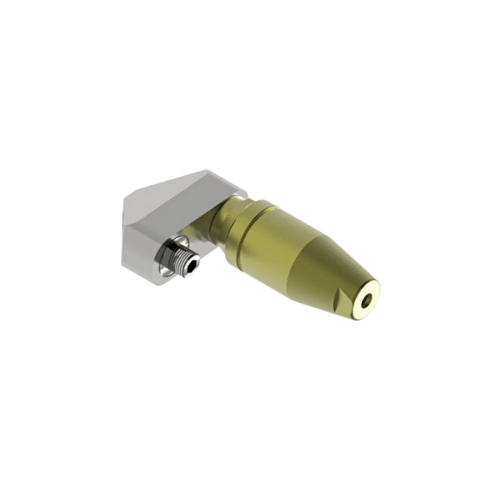

SNA1-TPR10 – Sewer Arrow Nozzle – 4,350 PSI – 1 Rear & 6 Forward Jets

Overview

• The Arrow Line SNA1-TPR10 Sewer Arrow Nozzle, distributed in North America by AR North America,
  is a specialized cleaning tool engineered for precision and durability in sewer and drain maintenance.
• Designed to operate at pressures up to 4,350 PSI and water temperatures as high as
  320°F, it delivers a balanced combination of propulsion, cutting power, and longevity for
  municipal, commercial, and residential applications.
• A dedicated rear propulsion jet and six forward-facing jets work together to
  penetrate obstructions, break them up, and flush debris downstream for fast and efficient line restoration.

SNA1-TPR10 Jet Configuration

• The SNA1-TPR10 is optimized for dual functionality: strong propulsion and precision cleaning.
• 1 Rear Jet (Propulsion): Provides the hydraulic thrust needed to pull the nozzle deep into
  pipelines, maintaining steady movement even in longer runs, bends, and tight sections.
• The propulsion jet reduces operator effort while keeping the nozzle advancing consistently through the line.
• 6 Forward Jets (Cutting/Scouring): Deliver a concentrated spray pattern aimed directly at the
  blockage, cutting through grease, hardened scale, soap deposits, sludge buildup, and light root
  intrusions.
• This jet layout enables operators to target and dismantle clogs at the source, rather than relying on
  broad flushing alone.

Arrow-Style Body

• The SNA1-TPR10 features an arrow-shaped body that actively enhances cleaning performance and control.
• Directional control: The pointed design helps maintain accurate aiming inside the pipe, reducing
  spray drift and keeping hydraulic force concentrated on the problem area.
• Penetration: The streamlined profile allows the nozzle to pierce into debris piles, hardened grease,
  and compacted sludge before the forward jets apply full cutting power.
• Maneuverability: Compact and stable, the arrow profile navigates elbows, offsets, and transitions
  smoothly, making it especially valuable in smaller-diameter lines where control is critical.

Construction & Testing

• Built from durable, wear-resistant materials, the SNA1-TPR10 is engineered for long service life in
  high-pressure, abrasive environments.
• High-pressure endurance: Rated up to 4,350 PSI, suitable for professional and
  contractor-grade jetting rigs.
• Heat tolerance: Operates with water temperatures up to 320°F, ideal for hot-water
  jetting in grease-heavy restaurant and food-processing lines.
• Corrosion resistance: Withstands wastewater, detergents, and chemical residues common in sewer and
  drain systems.
• Factory tested: Every nozzle is individually tested to confirm accurate spray angles,
  secure fittings, and consistent flow patterns, reducing field failures and ensuring ready-to-use reliability.

SNA1-TPR10 Applications

• Municipal sewer cleaning: Restores flow in branch lines and service laterals where buildup and
  localized obstructions are common.
• Commercial drain maintenance: Ideal for restaurants, retail facilities, and high-traffic businesses
  that regularly contend with grease, sludge, and food waste.
• Residential pipe servicing: Clears soap buildup, hair clogs, and grease from household lines with
  focused, directional cleaning.
• Grease & scale removal: Forward jets concentrate cleaning power on tough deposits found in food
  prep and manufacturing environments.
• Sludge clearance: Penetrates and flushes compacted organic matter, helping restore proper line
  function without invasive pipe replacement.

Technical Specifications

• Model: SNA1-TPR10
• Type: Sewer arrow nozzle with forward/rear jet configuration
• Maximum Pressure: 4,350 PSI
• Maximum Temperature: 320°F
• Jet Layout: 1 rear propulsion jet + 6 forward cutting/scouring jets
• Connection: 1/4″ male threaded inlet
• Body Design: Arrow-style profile for targeting, penetration, and directional stability
• Construction: Wear-resistant, corrosion-resistant materials
• Testing: Factory tested for spray pattern consistency, jet performance, and secure fit

SNA1-TPR10

• The SNA1-TPR10 Sewer Arrow Nozzle offers a powerful, precise solution for contractors and
  maintenance crews tasked with keeping pipelines free of obstructions.
• Its rear propulsion jet and six forward jets combine strong thrust with aggressive
  cutting action, while the arrow-style body delivers control and stability inside tight or complex lines.
• Rated at 4,350 PSI and 320°F, it is engineered to handle demanding cleaning
  scenarios in municipal, commercial, and residential settings.
• Compact, durable, and factory-tested, the SNA1-TPR10 provides consistent performance, extended service life,
  and professional-grade results—a nozzle purpose-built for precision cleaning and reliable blockage removal.
