RTX150 | 39.6 GPM 1450 PSI Pump 1450 RPM 30mm Keyway Shaft

RTX150 | 39.6 GPM 1450 PSI Pump 1450 RPM 30mm Keyway Shaft

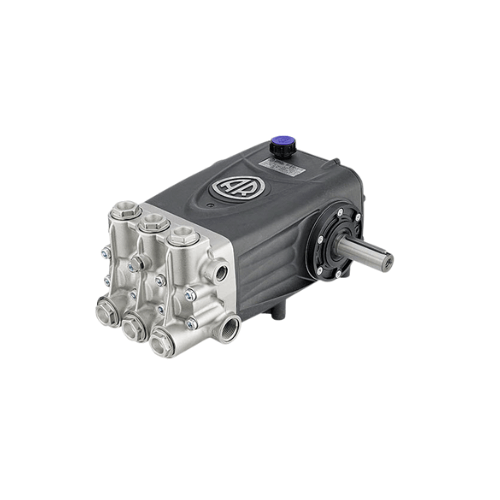

The Annovi Reverberi RTX150 is a purpose-built, high-flow industrial triplex plunger pump
engineered for operations where maximum water volume is the primary requirement and pressure
must remain stable and controllable. Delivering an exceptional 39.6 GPM at 1,450 PSI while
operating at a slow and efficient 1,450 RPM, the RTX150 is the highest-flow model in the
RTX Series and is designed for continuous-duty service in large-scale industrial environments.

Unlike high-pressure-focused pumps, the RTX150 is optimized for throughput. Its performance
profile makes it ideal for wash systems where coverage, flushing capacity, and volume-driven
cleaning are critical. Typical installations include processing plants, marine washdown systems,
wastewater recycling loops, agricultural sanitation, mining operations, and municipal facilities
that rely on high water movement rather than extreme cutting pressure.

At the heart of the RTX150 is a robust 30mm solid keyed shaft that provides excellent torque
transfer and compatibility with commercial electric motors, belt-drive systems, gear reducers,
and coupling-driven assemblies. This heavy-duty shaft design ensures rotational stability under
high hydraulic load, making the pump suitable for both fixed installations and large mobile
systems.

Key Specifications

• Flow Rate: 39.6 GPM for high-throughput industrial wash and recirculation systems
• Pressure Rating: 1,450 PSI for controlled, surface-safe cleaning
• Operating Speed: 1,450 RPM slow-speed industrial duty
• Shaft Size: 30mm solid keyed shaft for high-torque applications
• Pump Type: Industrial triplex plunger pump

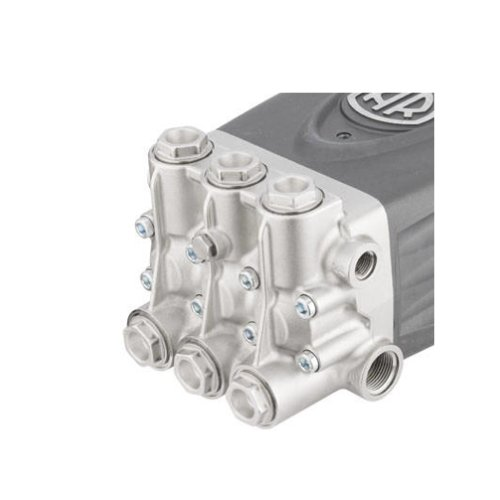

• Construction: Forged brass manifold, bronze connecting rods, ceramic plungers, stainless steel valves
• Lubrication: Oil-bath crankcase with sight glass and vented dipstick
• Warranty: 5-year commercial-use warranty with U.S.-based support

What’s Included with the RTX150 Pump

• Factory pre-filled break-in oil for immediate installation
• Oil sight glass for fast, visual oil level checks
• Vented dipstick to regulate crankcase pressure and simplify oil changes
• User manual with operating and maintenance instructions
• Detailed service schematic for parts identification and repair
• Factory performance test report verifying flow and pressure output
• 5-year commercial warranty backed by U.S. service centers

How the RTX150 Works

The RTX150 utilizes a precision triplex plunger design, employing three ceramic plungers
operating in a phased sequence to deliver smooth, low-pulsation output. This configuration
reduces pressure spikes and mechanical shock, protecting downstream components such as piping,
filters, valves, and spray manifolds.

At 39.6 GPM, the pump is capable of moving a substantial volume of water with every
rotation. This makes it particularly effective for continuous rinsing, flushing, and
recirculation duties where speed and coverage are more important than high PSI. The
1,450 PSI operating pressure provides enough force for industrial cleaning without
damaging sensitive surfaces, coatings, or equipment.

The 30mm keyed shaft ensures secure mechanical coupling and minimizes the risk of slippage
or misalignment under load. Oversized bearings support the crankshaft and reduce friction,
allowing the pump to operate cooler during extended runtimes. Bronze connecting rods, stainless
steel valves, and ceramic plungers work together to handle heat, abrasion, and chemical exposure
common in industrial wash environments.

Benefits of the RTX150

• Maximum Flow Capacity: 39.6 GPM supports large-scale wash and recirculation systems.
• Controlled Pressure: 1,450 PSI is effective while remaining surface-safe.
• Industrial-Grade Construction: Forged brass, bronze, ceramic, and stainless components.
• Stable Power Transfer: 30mm keyed shaft handles high torque without flex or slip.
• Reduced Pulsation: Triplex design protects system components.
• Slow-Speed Longevity: 1,450 RPM minimizes heat and internal wear.
• Service-Friendly Design: Sight glass and vented dipstick simplify routine maintenance.
• Reliability: Factory-tested and backed by a 5-year commercial warranty.

Typical Use Cases

• Processing Plants: High-volume washdown and sanitation operations.
• Marine Vessel Cleaning: Deck, hull, and dock wash systems.
• Mining Operations: Wash stations and dust suppression.
• Agriculture: Livestock areas, irrigation support, and equipment cleaning.
• Wastewater Recycling: Recirculation loops and filtration systems.
• Industrial Facilities: Factories, steel mills, and municipal wash stations.

Why Choose the RTX150

• Delivers the highest flow output available in the RTX Series.
• Designed specifically for continuous-duty industrial operation.
• Optimized for volume-driven cleaning rather than excessive pressure.
• Installation-ready with pre-filled oil and test documentation.
• Supported by nationwide parts availability and service infrastructure.
• Ideal for facilities where throughput, uptime, and reliability are critical.

RTX150 | 39.6 GPM 1450 PSI Pump 1450 RPM 30mm Keyway Shaft

The Annovi Reverberi RTX150 sets the benchmark for high-flow industrial pumping, delivering
39.6 GPM at 1,450 PSI with the durability of a 30mm solid keyed shaft and the efficiency
of slow-speed 1,450 RPM operation. Built with ceramic plungers, stainless steel valves,
bronze connecting rods, a forged brass manifold, and oversized bearings, it is engineered for
long service life in demanding environments.

Whether deployed in agriculture, marine operations, wastewater systems, mining facilities, or
large-scale industrial wash bays, the RTX150 provides unmatched volume output with dependable,
continuous performance. Factory-tested, shipped ready to install, and protected by a 5-year
commercial warranty, it is the pump of choice for professionals who require maximum flow with
industrial-grade reliability.
