RTR-SXMV35G40 Pump Kit | SXMV35G40D-F24 Triplex

RTR-SXMV35G40 by Annovi Reverberi — Ready to Run SXMV Series Triplex Pump Package | 3.5 GPM | 4,000 PSI | Bronze Connecting Rods | Forged Brass Manifold | Aluminum Crankcase | F24 SAE J609a 1″ Shaft | Factory Operationally Tested and Pressure-Set | 14,000 Cleaning Units

The RTR-SXMV35G40 by Annovi Reverberi is a factory operationally tested, pressure-set, and field-ready SXMV Series triplex ceramic plunger pump package engineered for service professionals, contractors, and fleet operators who need a replacement pump that is fully calibrated and ready to run the moment it is bolted on. Rated at 3.5 GPM and 4,000 PSI, the RTR-SXMV35G40 delivers 14,000 cleaning units — through bronze connecting rods, solid ceramic plungers, a forged brass manifold, an aluminum crankcase with cooling fins, dual redundant packing seals, and an F24 SAE J609a direct-drive flange with 1″ shaft. The RTR designation changes everything about the installation experience: the factory service department has operationally tested this pump, set the pressure, and verified performance before shipment. There is nothing to fine-tune. No adjustment period. No startup variables to resolve under deadline. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RTR-SXMV35G40 is the correct choice when the job cannot wait for calibration.

The RTR-SXMV35G40 is built on the SXMV Series platform — Annovi Reverberi’s reinforced evolution of the XMV pump family, engineered specifically for 4,000 PSI continuous-duty operation. Every RTR-SXMV35G40 exits the Annovi Reverberi factory operationally tested and pressure-set, not just assembly-inspected. The distinction matters in the field: a standard package pump arrives factory-assembled and ready to mount, requiring the installer to set working pressure and verify performance during commissioning. The RTR-SXMV35G40 arrives with that work already done. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced, this is a decade-of-service investment that starts earning the moment it is installed.

RTR — Ready to Run: What It Means and Why It Matters

Factory Operationally Tested. Pressure-Set. Fine-Tuning Complete. Bolt On and Wash.

The RTR designation on the RTR-SXMV35G40 is not a marketing term — it is a factory service specification that defines a specific level of pre-shipment preparation beyond standard assembly and leak testing:

• Operationally tested at the factory — every RTR-SXMV35G40 is run under operating load by Annovi Reverberi’s factory service department before shipment. Flow, pressure, bypass behavior, and seal integrity are verified under actual working conditions — not just static pressure test. The pump that arrives at your door has already been run.
• Pressure-set and calibrated — working pressure is set at the factory to the rated 4,000 PSI specification. The bypass and unloader are calibrated and locked. When the RTR-SXMV35G40 is installed and the engine starts, it runs at specification from the first cycle — no adjustment knob, no pressure gauge required at installation.
• Zero fine-tuning in the field — service professionals replacing a pump under time and space constraints cannot afford startup troubleshooting. The RTR-SXMV35G40 eliminates every variable that standard pump installation requires. Mount to the engine. Connect hoses. Start. The system is operational.
• Built for field service replacement — when a pump fails on a contractor’s rig at a job site, on a fleet truck in a wash bay, or on a stationary industrial system in production, every minute of downtime has a cost. The RTR-SXMV35G40 is the answer when the correct response to a pump failure is replacement, not rebuild — and that replacement needs to be up and running before the service tech’s day ends.
• The difference from a standard package pump — a standard PKG pump is factory-assembled, factory-tested for leaks and output, and shipped ready to mount. The RTR-SXMV35G40 goes further: operational testing under load, pressure calibration, and fine-tuning verification are completed at the factory service department. The installer’s job is installation, not commissioning.

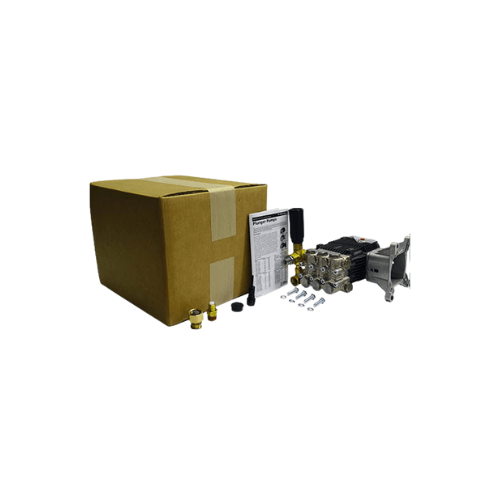

Everything Included — The RTR-SXMV35G40 Package Contents

Factory-Tested. Pressure-Set. Ready to Mount. Nothing to Source.

• RTR-SXMV35G40 SXMV Series triplex ceramic plunger pump — factory operationally tested and pre-lubricated with break-in oil. Bronze connecting rods, solid ceramic plungers, forged brass manifold, aluminum crankcase with cooling fins, dual redundant packing seals — factory-installed, factory-run, and factory-verified before shipment.
• Factory-matched unloader — pressure-set at 4,000 PSI — calibrated and locked at the factory service department. No field pressure adjustment required. The bypass and unloader arrive set to specification for the 3.5 GPM / 4,000 PSI operating point on the RTR-SXMV35G40.
• Fittings and mounting hardware — every fitting and fastener required for installation onto compatible engines, contractor skids, fleet wash frames, and OEM installations.
• Chemical injector and suction hose — not included — the RTR-SXMV35G40 delivers straight 4,000 PSI high-pressure water output. Downstream chemical delivery sourced separately when detergent capability is required.
• Factory break-in oil — pre-filled. First-startup protection already handled.
• Installation and service manual — complete procedures with Annovi Reverberi part numbers for every serviceable component. AR North America parts availability confirmed across North America.

Decoding the RTR-SXMV35G40

What This Annovi Reverberi Designation Tells You

• RTR — Ready to Run: factory operationally tested, pressure-set, and fine-tuning verified by Annovi Reverberi’s factory service department before shipment. No field calibration required.
• SXMV — Pump series: SXMV Series — Annovi Reverberi’s reinforced and strengthened evolution of the XMV platform, engineered specifically for 4,000 PSI continuous-duty performance
• 35G — Pump series identifier for this SXMV configuration
• 40 — Maximum pressure: 4,000 PSI — 3.5 × 4,000 = 14,000 cleaning units
• D — Shaft version: Direct Drive — 3,400 RPM for direct gas engine coupling
• F24 — Flange type: SAE J609a — 1″ hollow keyway shaft for direct coupling to compatible gas and diesel engines (Annovi Reverberi part AR41866)

Key Specifications

RTR-SXMV35G40 Technical Details at a Glance

• Flow Rate: 3.5 GPM (gallons per minute / approximately 13.2 L/min)
• Maximum Pressure: 4,000 PSI (approximately 276 bar)
• Cleaning Units: 14,000 (GPM × PSI)
• Operating Speed: 3,400 RPM — direct drive gas engine
• Pump Type: SXMV Series triplex ceramic plunger pump — reinforced XMV platform for 4,000 PSI continuous duty
• Flange: F24 — SAE J609a, 1″ hollow keyway shaft, direct drive gas and diesel engine compatible (Annovi Reverberi part AR41866)
• Inlet Port: 1/2″ female — standard commercial hose connection
• Outlet Port: 3/8″ female — standard commercial high-pressure hose connection
• Connecting Rods: Bronze — required specification for sustained 4,000 PSI continuous-duty operation
• Manifold: Forged brass — corrosion resistance and fatigue resistance under high-pressure sustained operation
• Crankcase: Aluminum with cooling fins — efficient heat dissipation and weight reduction for skid and mobile applications
• Plungers: Solid ceramic — thermal resistance and wear resistance under heavy-duty cycles
• Packing: Dual redundant — leak-free operation and extended reliability under demanding conditions
• Oil Capacity: Approximately 14.5 oz — adequate lubrication for crankcase bearings under intensive commercial use
• Maximum Fluid Temperature: 140°F (60°C) — compatible with warm water cleaning when properly configured
• Weight: Approximately 16 lb — compact and manageable for engine-mounted skids, mobile rigs, and portable units
• Pre-Shipment Status: RTR — factory operationally tested, pressure-set at 4,000 PSI, fine-tuned and verified
• Chemical Injector: Not included — straight 4,000 PSI water output
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

SXMV Series — Reinforced Platform for 4,000 PSI Duty

Strengthened XMV Construction. Aluminum Crankcase with Cooling Fins. Built for 4,000 PSI.

• Reinforced SXMV platform — the SXMV Series is Annovi Reverberi’s strengthened evolution of the XMV pump family, purpose-engineered to handle the structural and thermal demands of 4,000 PSI continuous-duty operation with the reliability margin that professional field service replacement demands
• Aluminum crankcase with cooling fins — the RTR-SXMV35G40’s aluminum crankcase combines lightweight construction — approximately 16 lb total — with integrated cooling fins that actively dissipate heat during extended 4,000 PSI duty cycles. Cooler running means longer bearing life, longer seal life, and more reliable performance across the service intervals between planned maintenance stops
• Bronze connecting rods at 4,000 PSI — above the 3,600 PSI threshold where bronze rods are the required specification. The RTR-SXMV35G40’s bronze rods deliver the strength and fatigue tolerance needed for sustained high-pressure operation on contractor rigs, fleet wash systems, and industrial cleaning stations
• 16 lb compact weight — the RTR-SXMV35G40’s lightweight aluminum crankcase keeps total package weight at approximately 16 lb, simplifying integration into skid systems, truck-mount builds, and portable contractor rigs where every pound of carried weight matters across a full work day

Engine Compatibility — What Drives the RTR-SXMV35G40

F24 SAE J609a. 1″ Hollow Keyway Shaft. Predator-Compatible. Direct-Mount Ready.

• Harbor Freight Predator 420cc / 13 HP — compatible with the RTR-SXMV35G40 F24 1″ keyway shaft. Confirm HP is appropriate for sustained 4,000 PSI duty. Direct value-priced replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440 — the primary contractor choice for Predator-powered rigs being field-serviced with an RTR-SXMV35G40.
• Harbor Freight Predator 459cc / 15.8 HP Max Performance — up to 10% more torque than the standard 420cc. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440. Compatible with the RTR-SXMV35G40 F24 1″ keyway shaft — the preferred single-cylinder Predator pairing for sustained high-pressure continuous-duty operation.
• Harbor Freight Predator 670cc / 22 HP V-Twin — preferred for sustained 4,000 PSI continuous-duty applications. Replaces Honda GX630/660/690 and Briggs & Stratton Vanguard. The RTR-SXMV35G40’s RTR pre-set calibration makes it the drop-in replacement for high-output Predator-powered flatbed and truck-mount systems that cannot afford commissioning time.
• Honda GX390 — 1″ SAE J609a keyway shaft. Direct-mount compatible with the RTR-SXMV35G40 F24 flange.
• Briggs & Stratton XR2100 / Vanguard series — 1″ SAE keyway. Direct-mount compatible.
• Kohler CH440 / Command series — 1″ SAE keyway. Direct-mount compatible.

Typical Applications

Where the RTR-SXMV35G40 Delivers Best Results

• Field service pump replacement under time and space constraints — the RTR-SXMV35G40’s factory operational testing and pressure-set calibration eliminate commissioning time at the job site, in the wash bay, or on the production floor. The service tech arrives with a pump that is already calibrated. Installation is installation, not commissioning.
• Truck-mount wash rigs and fleet maintenance systems — high-pressure output removes grease, oil, and road grime efficiently on truck-mount and fleet wash systems where RTR pre-calibration keeps the replacement fast and the vehicle back in service
• Industrial cleaning — warehouses, service bays, loading docks, and concrete surfaces — the RTR-SXMV35G40’s 14,000 cleaning unit output and RTR operational verification handle industrial surface contamination in environments where production schedules cannot accommodate extended commissioning
• Construction and concrete cleanup — removing slurry, curing compounds, and construction residue where the RTR-SXMV35G40’s 4,000 PSI direct-drive output and factory-set calibration support fast mobilization on active job sites
• OEM skid and engine-mounted system replacement — OEM builders and integrators replacing pumps in the field benefit from RTR pre-calibration, which eliminates the need to re-set unloader pressure and verify bypass behavior during replacement service calls
• Marine and saltwater rinse applications — the RTR-SXMV35G40’s durable construction supports occasional use for boat hull and marine equipment rinse with proper post-use rinsing and maintenance protocols observed

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

Factory-Tested. Pressure-Set. Backed for Five Years. Parts Available Nationally.

The RTR-SXMV35G40 is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — ceramic plungers, bronze connecting rods, forged brass manifold seals and o-rings, dual redundant packing kits, unloader service parts, and crankcase bearings — is stocked nationally through authorized AR North America distribution channels. Contractors, fleet operators, service operations, OEM equipment builders, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RTR-SXMV35G40 and the complete WSHPWR pump package lineup. WSHPWR maintains one of the most complete Annovi Reverberi inventories available through any US web store — with thousands of products in stock and a continually expanding catalog.

14,000 Cleaning Units. 4,000 PSI. 3.5 GPM. RTR Factory-Set. SXMV Reinforced. F24 SAE J609a. Bolt On and Wash.

Italian Engineering. Ready to Run. Factory Operationally Tested. 5-Year US Warranty.

When the pump fails and the job cannot wait — the RTR-SXMV35G40 is the answer. Factory operationally tested. Pressure-set at 4,000 PSI. Fine-tuning complete. Bronze connecting rods. Forged brass manifold. Aluminum crankcase with cooling fins. Dual redundant packing seals. SXMV reinforced platform. Every fitting and every bolt. Pre-lubricated. Five-year US warranty. One box. Mount it. Start the engine. The system is operational.

Volume buyers and service operations stocking RTR replacement inventory can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing across the complete Annovi Reverberi pump package lineup.
