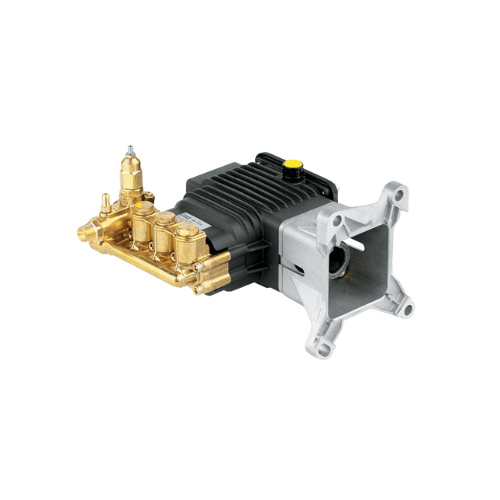

RSV3G34D-F40 3.0 GPM 3400 PSI | 3400 RPM F40-shaft pump

RSV3G34D-F40 by Annovi Reverberi — RSV Series Triplex Plunger Pump with Integrated Unloader | 3.0 GPM | 3,400 PSI | Forged Brass Manifold | Bronze Connecting Rods | Fixed 12% Injector | 10,200 Cleaning Units

The RSV3G34D-F40 by Annovi Reverberi is an RSV Series triplex plunger pump with integrated unloader delivering 3.0 GPM at 3,400 PSI — engineered for direct gas engine coupling via the F40 1″ Shaft interface. Rated at 3.0 GPM and 3,400 PSI, the RSV3G34D-F40 delivers 10,200 cleaning units — through a forged brass manifold, solid ceramic plungers, bronze connecting rods, stainless steel valves, an integrated adjustable unloader, and a fixed 12% chemical injector in one factory-assembled pump body. Protected by a 5-year US limited warranty and built to be fully rebuilt rather than replaced. As part of Annovi Reverberi’s pump and unloader assemblies stocked and supported by WSHPWR, the RSV3G34D-F40 is the complete integrated triplex pump solution for gas engine-powered pressure washing at 3,400 PSI.

Fixed 12% Chemical Injector — Integrated. Detergent Hose and Filter Sold Separately.

Injector Ready. Complete the System with the DETHOSE-FIL6X.

The RSV3G34D-F40 ships with a fixed 12% chemical injector integrated directly into the pump body. The injector automatically draws detergent when the downstream nozzle creates the correct pressure differential — no separate injector tee, no compatibility guesswork. What is not included: the detergent hose and filter. To complete the chemical delivery system, the DETHOSE-FIL6X 6ft Detergent Hose with Red Filter is the correct accessory — a 6-foot red chemical suction hose with inline filter sized for the RSV3G34D-F40 injector port. Keeps particulate out of the injector, extends injector service life, and gives the operator reach from a stationary detergent container on contractor rigs and wash stations.

Engine Compatibility — What Drives the RSV3G34D-F40

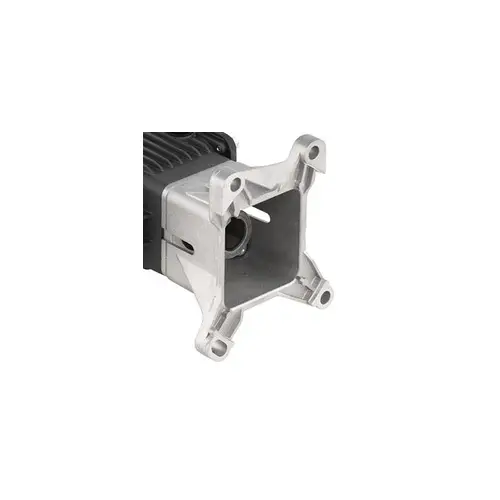

F40 SAE J609a. 1″ Hollow Keyway Shaft. 7.0 EBHP Minimum. Predator and Honda Compatible.

• Harbor Freight Predator 459cc / 15.8 HP Max Performance — the preferred single-cylinder Predator pairing. 1″ keyway shaft. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440.
• Harbor Freight Predator 420cc / 13 HP — 1″ keyway shaft. Direct replacement for Honda GX390, Briggs & Stratton XR2100, and Kohler CH440.
• Honda GX390 — 389cc, 1″ SAE J609a keyway shaft. Direct-mount compatible with the RSV3G34D-F40 F40 flange.
• Briggs & Stratton XR2100 / Vanguard series — 1″ SAE keyway. Direct-mount compatible.
• Kohler CH440 / Command series — 1″ SAE keyway. Direct-mount compatible.

Key Specifications

RSV3G34D-F40 Technical Details at a Glance

• Flow Rate: 3.0 GPM (gallons per minute)
• Maximum Pressure: 3,400 PSI (234 bar)
• Cleaning Units: 10,200 (GPM x PSI)
• Operating Speed: 3,400 RPM
• Power Required: 7.0 EBHP minimum
• Pump Type: RSV Series triplex plunger pump — integrated unloader, fully rebuildable

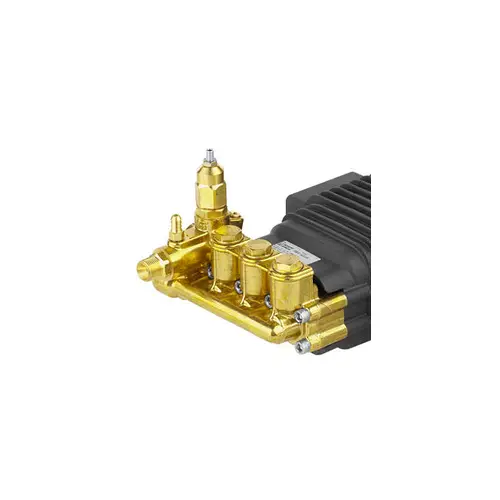

• Manifold: Forged brass
• Plungers: Solid ceramic
• Connecting Rods: Bronze
• Valves: Stainless steel inlet and discharge
• Shaft/Flange: 1″ hollow keyway shaft — F40 SAE J609a — direct drive contractor-grade gasoline engine
• Bore Diameter: 15mm / Stroke: 7.6mm
• Oil Capacity: 16 oz
• Max Temperature: 140 degrees F
• Weight: 14 lbs
• Easy Start: Not included on this model
• Integrated Unloader: Adjustable — set working pressure to match nozzle selection and application requirements
• Chemical Injector: Fixed 12% — integrated into pump body; detergent hose and filter sold separately
• Serviceability: Fully rebuildable — all components nationally available through AR North America
• Warranty: 5-year limited warranty — US-based coverage through Annovi Reverberi North America

Typical Applications

Where the RSV3G34D-F40 Delivers Best Results

• Contractor pressure washing — surface prep, equipment washdown, and property maintenance — 3.0 GPM / 3,400 PSI RSV triplex output with integrated unloader for professional cleaning programs
• OEM equipment builds and replacements — the RSV3G34D-F40 integrated pump-and-unloader format simplifies OEM design and field replacement with AR North America nationally stocked parts
• Fleet wash systems and facility cleaning — 10,200 cleaning units with integrated pressure regulation for consistent output across daily fleet washing and facility maintenance programs
• Complete the chemical delivery system — the RSV3G34D-F40 12% injector is ready. Add the DETHOSE-FIL6X 6ft detergent hose with filter to complete downstream chemical delivery.

5-Year US Warranty, National Parts Availability, and Wholesale Pricing

RSV3G34D-F40 — RSV Triplex Platform. Integrated Unloader. Backed for Five Years.

The RSV3G34D-F40 is protected by Annovi Reverberi’s 5-year limited warranty through the US-based warranty and service network administered by AR North America. Every internal wear component — forged brass manifold seals, solid ceramic plungers, bronze connecting rod assemblies, stainless valve seats, integrated unloader service parts, and packing kits — is stocked nationally through authorized AR North America distribution channels. Contractors, OEM builders, fleet operators, agricultural operations, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RSV3G34D-F40 and the complete WSHPWR pump package lineup.

10,200 Cleaning Units. 3,400 PSI. 3.0 GPM. Forged Brass. Bronze Rods. Integrated Unloader. Fixed 12% Injector. F40 1″ Shaft. 5-Year US Warranty.

Annovi Reverberi RSV Series. Triplex Plunger. Integrated Unloader. Fully Rebuildable. Nationwide Service.

The RSV3G34D-F40 is the complete RSV Series integrated triplex plunger solution for gas engine-powered pressure washing at 3,400 PSI. Forged brass manifold. Bronze connecting rods. Ceramic plungers. Integrated adjustable unloader. Fixed 12% chemical injector. Five-year US warranty. Nationwide AR North America service centers. Fully rebuildable. Complete the chemical delivery system with the DETHOSE-FIL6X detergent hose and filter.

Volume buyers can reach the WSHPWR wholesale team at wholesale@wshpwr.com.
