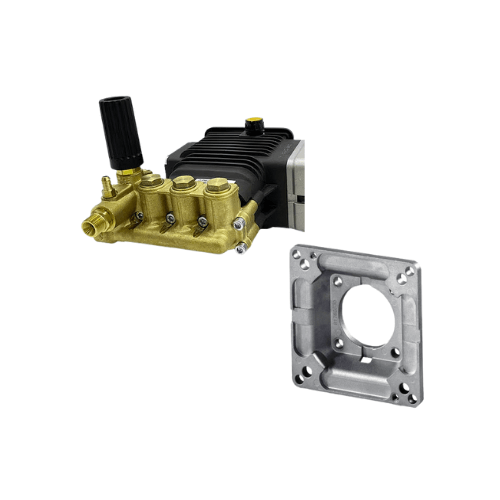

RSV23G33D-F32EZ 2.3 GPM 3300 PSI Pump | RSV F32 EZ Industrial

Overview

• The AR RSV23G33D-F32EZ is a professional-grade axial cam pressure washer pump
  engineered for superior cleaning power, smooth performance, and long-term reliability in both commercial and
  residential environments.
• Rated at 2.3 GPM and 3,300 PSI at 3,400 RPM, it delivers
  high-efficiency performance in a compact, durable, and low-maintenance package.
• As part of AR North America’s RSV F32 EZ Series, it is designed for dependable operation and
  easy integration into a wide range of pressure washer configurations.

Easy Start System & Operating Benefits

• Features AR’s Easy Start System, which reduces initial pressure buildup during startup so
  motors and engines can engage smoothly without excessive load or torque strain.
• Lower startup stress helps extend engine and pump life and reduces nuisance trip-outs,
  especially on electric or smaller gasoline power sources.
• The axial cam mechanism is precision-balanced for quiet, efficient operation with minimal
  vibration and wear, maintaining stable hydraulic performance during extended use.

Hydraulic Design & Core Construction

• Utilizes three stainless-steel pistons working with solid ceramic plungers
  for superior wear resistance, heat tolerance, and long-term sealing integrity.
• Provides smooth pressure output and reliable performance over thousands of operating hours,
  ideal for demanding daily cleaning applications.
• A precision-machined brass manifold forms the structural core, offering excellent corrosion
  resistance, dimensional stability, and strength under continuous high-pressure cycles.

Drivetrain, Crankcase & Lubrication

• The die-cast aluminum crankcase adds strength while promoting efficient heat dissipation,
  keeping internal components cooler for longer life.
• A hardened steel crankshaft runs on oversized ball bearings to maintain alignment, reduce
  friction, and deliver smooth rotation and consistent output.
• An integrated oil-bath lubrication system provides continuous coverage for all moving parts,
  reducing wear and maintaining mechanical efficiency.
• The built-in oil sight glass allows quick visual checks of fluid level to simplify
  preventive maintenance.

Direct-Drive, Flange Mount & Integration of RSV23G33D-F32EZ

• Direct-drive configuration connects directly to the motor or engine shaft, maximizing torque
  transfer and reducing mechanical losses.
• The F32 flange mount system allows quick, secure mounting to a variety of power sources,
  simplifying installation and ensuring proper alignment.
• This layout minimizes maintenance requirements and efficiently converts engine power into hydraulic pressure.

Performance & Cleaning Capability

• Rated at 2.3 GPM @ 3,300 PSI, the RSV23G33D-F32EZ provides powerful, controlled cleaning
  performance for tough dirt, grease, oil, and buildup.
• Ideal for surfaces such as concrete, vehicles, equipment, and machinery where consistent,
  high-pressure cleaning is required.
• Optimized for cold-water systems and compatible with detergent injectors and various spray
  nozzles for task-specific cleaning.

Valves, Seals & Internal Components of the RSV23G33D-F32EZ

• Precision-engineered stainless-steel check valves ensure optimal flow consistency and prevent
  backflow, supporting steady suction and discharge.
• High-performance elastomer seals and O-rings are formulated to resist heat, pressure, and
  chemical exposure from detergents and cleaning solutions.
• Internal design minimizes pressure spikes and flow disturbances, contributing to a smooth, low-vibration
  operating feel.

Maintenance, Serviceability & Testing

• Routine care is simple: periodic oil changes and inspection of seals, valves, and pistons are
  typically sufficient to maintain long-term reliability.
• Modular construction enables quick access and replacement of wear parts, minimizing downtime
  and service costs.
• Each RSV23G33D-F32EZ is factory-tested by AR North America to verify flow rate, pressure
  calibration, and leak-free performance before shipment.

Typical Applications for RSV23G33D-F32EZ

• Mid-range commercial pressure washers used by contractors and professional cleaners.
• Mobile cleaning rigs and fleet maintenance setups that demand daily,
  reliable operation.
• Light industrial wash bays and heavy-duty residential cleaning where
  professional-grade performance is desired.
• Situations where compact size, low vibration, and smooth power delivery improve operator
  comfort during prolonged use.

Summary

• The AR RSV23G33D-F32EZ combines a corrosion-resistant brass manifold, solid ceramic plungers,
  stainless-steel internals, and AR’s Easy Start technology to deliver professional-grade cleaning
  power in a compact, maintenance-friendly package.
• With 2.3 GPM @ 3,300 PSI, direct-drive efficiency, and long-life components, it is an ideal
  choice for professionals and homeowners seeking a powerful, reliable pressure washer pump that performs
  consistently over years of demanding service.
