RKV55G40HD-F24 5.5 GPM 4000 PSI | Heavy-Duty Triplex

AR RKV55G40HD-F24 Triplex Plunger Pump

The AR RKV55G40HD-F24 is a high-output triplex plunger pump engineered for demanding wash applications that
require both strong pressure and significant water volume. Delivering 5.5 GPM at 4,000 PSI and operating at
3,400 RPM, this model supports contractor-grade, industrial, and heavy-equipment cleaning environments where
throughput, durability, and consistent performance are essential. With an F24 engine flange and a 1″ hollow
keyway shaft, the pump mounts directly to compatible gas or diesel engines, providing reliable torque transfer
with minimal alignment complexity.

Built using premium materials—including ceramic plungers, stainless-steel valves, and a nickel-plated pump
head—the RKV55G40HD-F24 withstands continuous-duty operation in harsh, high-pressure environments. Its
heavy-duty crankcase, oversized bearings, and pressurized lubrication system ensure reliable long-term service,
making this pump a preferred choice for high-flow industrial cleaning tasks and large-area surface preparation
work.

Key Specifications

• 5.5 GPM flow capacity for rapid cleaning and high-throughput applications.
• 4,000 PSI operating pressure for heavy-duty washing and surface preparation.
• 3,400 RPM operating speed designed for direct engine drive.

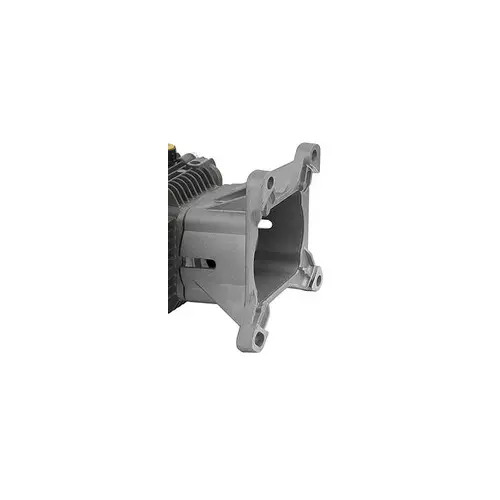

• F24 engine flange for secure gas or diesel engine coupling.
• 1″ hollow keyway shaft for efficient torque transfer.
• Triplex plunger design for smooth, consistent hydraulic performance.
• Nickel-plated pump head for enhanced corrosion resistance.
• Stainless-steel valves and ceramic plungers for long service life.
• 5-year manufacturer’s warranty.

Performance Characteristics

• High-flow output increases surface coverage and reduces cleaning time.
• Strong pressure capability supports aggressive removal of mud, grease, and buildup.
• Triplex plunger system minimizes pulsation for stable spray performance.
• Designed to maintain consistent PSI under load for demanding field operations.

What’s Included

• Factory-assembled RKV55G40HD-F24 pump prefilled with break-in oil.
• Vented dipstick for quick oil checks.
• Oil sight glass for continuous crankcase monitoring.
• Nickel-plated head for extended corrosion resistance.
• Stainless-steel valves and ceramic plungers installed from the factory.
• Operation manual and detailed parts schematic.

Installation Advantages

• F24 flange ensures direct bolt-on mounting to compatible engines.
• 1″ hollow shaft simplifies coupling and reduces alignment requirements.
• Compact, rigid pump body integrates easily with skid mounts and portable frames.
• Engineered for stable torque transfer at high operating speeds.

How the Pump Works

• Three ceramic plungers reciprocate within precision-machined cylinders to generate high flow and pressure.
• A hardened steel crankshaft drives the plungers, supported by oversized bearings for durability.
• Stainless-steel valves regulate suction and discharge cycles with high accuracy.
• The nickel-plated head resists corrosion and impact from harsh detergents or environmental exposure.
• The pump’s 3,400 RPM operation provides fast cleaning output for high-production tasks.
• The ergonomically designed dipstick and sight glass allow ongoing monitoring of oil condition.

Operational Behavior

• Low pulsation improves operator control across large wand and surface-cleaner tools.
• Stable performance under extended run times supports industrial-duty cycles.
• Corrosion-resistant materials maintain long-term performance in wet environments.

Benefits of the RKV55G40HD-F24

• 5.5 GPM at 4,000 PSI provides commercial-grade power for large and demanding tasks.
• F24 flange and 1″ shaft ensure reliable, efficient engine coupling.
• Heavy-duty construction supports long-term industrial use.
• Ceramic plungers and stainless valves reduce wear and extend service intervals.
• Nickel-plated head enhances durability in corrosive or harsh wash environments.
• Easy-to-service components simplify routine maintenance.

Durability Advantages

• Reinforced crankcase provides mechanical stability during high-load operation.
• Oversized bearings support continuous-duty performance.
• Premium coatings and materials resist pitting, rust, and chemical exposure.

Typical Applications

• Heavy equipment cleaning for construction, mining, and agriculture.
• Concrete and hard-surface cleaning including pads, lots, garages, and industrial floors.
• Fleet washing for trucks, buses, trailers, and commercial vehicles.
• High-throughput wash bay systems and contractor rigs.
• Industrial facility maintenance requiring strong water volume and pressure.

Where This Pump Excels

• High-flow cleaning systems requiring rapid material removal.
• Contractor-grade pressure washer builds using gas or diesel engines.
• Applications requiring long run times and reliable PSI consistency.

Why Choose the RKV55G40HD-F24

• Built for industrial workloads where uptime is critical.
• Direct bolt-on engine mounting simplifies integration and reduces setup time.
• Materials and engineering designed for extended service life in harsh environments.
• Supported by AR’s long-standing reputation for precision and manufacturing quality.

Conclusion

The AR RKV55G40HD-F24 delivers exceptional cleaning performance through its high-flow, high-pressure triplex
design, rugged construction, and direct engine compatibility. Built for contractors, industrial wash systems,
and heavy-equipment cleaning, it provides the durability, output, and reliability required for demanding
environments where productivity and equipment performance directly impact results.
