RKV4G40-D25056 4.0 GPM 4000 PSI Pump | 3400 RPM

Overview

• The Annovi Reverberi RKV4G40-D25056 is a professional-grade triplex plunger pump
  delivering 4.0 GPM at 4000 PSI for demanding commercial and industrial cleaning.
• Designed for high-output operation at 3400 RPM, providing the flow and pressure
  needed for heavy equipment washing, concrete cleaning, and other tough jobs.
• Built for continuous, heavy-duty service so contractors and industrial users can depend on
  consistent performance day after day.
• Combines high flow with strong pressure, offering an excellent balance of production speed and
  cleaning power for large surfaces and dirty equipment.
• Backed by a 5-year manufacturer’s warranty, giving long-term confidence in
  critical cleaning applications.

Key Specifications

• Model: RKV4G40-D25056.
• Flow rate: 4.0 gallons per minute (GPM).
• Maximum pressure: 4000 PSI.
• Operating speed: 3400 RPM.
• Pump type: Triplex plunger pump with smooth, low-pulsation output.
• Mounting style: F24 flange for direct gas or diesel engine coupling.
• Shaft size: 1-inch hollow keyway shaft for secure engine connection.
• Head material: Rugged nickel-plated head for added corrosion resistance.
• Warranty: 5-year factory warranty.

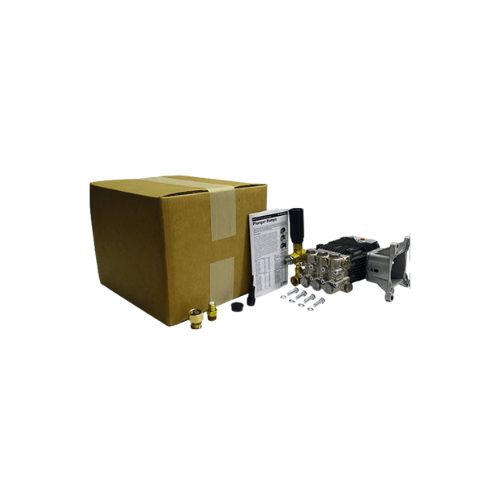

What’s Included

• RKV4G40-D25056 pump factory-tested and pre-filled with break-in oil.
• Vented dipstick for fast, easy oil level checks.
• Oil sight glass for convenient visual monitoring of crankcase oil.
• Solid ceramic plungers for superior heat and wear resistance.
• Stainless steel valves for precise, reliable water regulation under pressure.
• Nickel-plated pump head for durability in harsh environments.
• Operation manual and detailed parts breakdown schematic for service and rebuilds.

How It Works

• Triplex plunger design uses three ceramic plungers to deliver a smooth, pulsation-free
  flow, improving cleaning consistency and operator comfort.
• The F24 flange and 1-inch hollow keyway shaft permit direct mounting to gas or
  diesel engines, ensuring efficient power transfer and secure torque transmission.
• Operating at 3400 RPM, the pump is tuned for high-output cleaning where speed
  and productivity are priorities.
• Ceramic plungers reduce friction and heat, extending seal life, while stainless valves maintain
  accurate flow control at working pressure.
• The nickel-plated head and robust internal components allow the pump to withstand frequent,
  heavy-duty use in challenging environments.

Benefits

• Powerful performance: 4.0 GPM at 4000 PSI for professional-grade cleaning.
• Direct engine mounting: F24 flange and hollow shaft simplify installation on
  most gas and diesel power units.
• Long service life: Ceramic plungers, stainless valves, and nickel-plated head
  are engineered for durability.
• Fast cleaning cycles: 3400 RPM operation supports rapid job completion on large
  surfaces and heavy equipment.
• Easy maintenance: Vented dipstick and oil sight glass make routine servicing
  quick and straightforward.
• Reliable investment: 5-year warranty provides peace of mind in continuous-duty
  applications.

Typical Applications

• Fleet maintenance: Washing trucks, buses, vans, and trailers.
• Heavy equipment cleaning: Tractors, excavators, loaders, and construction machinery.
• Concrete and hard surfaces: Driveways, sidewalks, patios, and industrial floors.
• Industrial facilities: Cleaning warehouses, factories, and plant equipment.
• Contractor pressure washing: Ideal for professional mobile wash rigs and service crews.

Why Choose the RKV4G40-D25056?

• Built for continuous duty: Designed for high-demand, professional environments
  rather than light or occasional use.
• Balanced performance: High flow and strong pressure give flexibility across
  many job types with one pump.
• Installation-friendly: Direct engine coupling reduces setup time and alignment issues.
• Premium construction: Quality materials and components reduce downtime and
  long-term operating costs.
• Long-term value: Factory-backed warranty and robust design make it a smart
  upgrade for serious commercial and industrial users.
