RKV35G35D-F24C2 | 3.5 GPM 3500 PSI Triplex Pump Unloader Installed

RKV35G35D-F24C2 by Annovi Reverberi — RK Series Triplex Plunger Pump with Gymatic Unloader | 3.5 GPM | 3,500 PSI | Aluminum Crankcase | Oversized Bearings | Brass Manifold | 1″ Hollow Keyway Shaft | SAE J609A Gas and Diesel Engine Drive | No Chemical Injector

The RKV35G35D-F24C2 by Annovi Reverberi is a commercial and industrial RK Series triplex ceramic plunger pump engineered for direct gas and diesel engine-driven pressure washing systems requiring 3.5 GPM at 3,500 PSI with factory-matched Gymatic bypass pressure regulation and straight high-pressure water delivery. Rated at 3.5 GPM and 3,500 PSI at 3,400 RPM, the RKV35G35D-F24C2 delivers 12,250 cleaning units — combining 3.5 GPM focused output with 3,500 PSI cutting action for grease, mud, and embedded contaminants on fleet vehicles, construction equipment, agricultural machinery, and industrial surfaces — through a precision-balanced crankshaft supported by oversized bearings in a heavy-duty aluminum crankcase, solid ceramic plungers, precision-machined brass manifold, stainless steel valves, and an F24 SAE J609A direct-drive flange for close-coupling to gasoline or diesel engines.

The RKV35G35D-F24C2 is the no-injector Gymatic C2 configuration — straight 3,500 PSI water output for operators managing chemical delivery through a dedicated external downstream system. The factory-installed C2 adjustable bypass unloader provides immediate pressure control and protects the pump when the trigger gun is released, simplifying system setup right out of the box. Built by Annovi Reverberi in Modena, Italy — with US-based operations, a domestic parts distribution network, and dedicated AR North America technical support — the RKV35G35D-F24C2 arrives pre-filled with AR break-in oil, factory-tested, and ready for immediate installation. Protected by a 5-year US limited warranty through AR North America and built to be fully rebuilt rather than replaced, this pump is a long-term investment capable of a decade of productive service life.

Factory-Matched and Approved — The RKV35G35D-F24C2 Complete Assembly Advantage

No Mismatches. No Guesswork. No Warranty Risk. Just Install and Run.

Every RKV35G35D-F24C2 ships as a factory-matched, factory-approved, and factory-installed complete pump and unloader assembly:

• Factory-matched C2 for 3,500 PSI — the C2 Gymatic bypass unloader is factory-calibrated for this pump’s 3.5 GPM / 3,500 PSI operating point, ensuring predictable pressure behavior and stable bypass response from first startup.
• Factory-approved configuration — the complete assembly is AR North America’s validated specification for this model. Operating with the factory-installed components maintains full 5-year warranty coverage.
• Factory-installed and tested — every RKV35G35D-F24C2 exits the AR manufacturing facility with the C2 unloader mounted, calibrated, and tested for flow, pressure, and leak-free operation before shipment.
• Eliminates mismatch returns — incorrect unloader specification is the most common source of system returns. The factory-matched assembly eliminates this failure mode before the pump leaves the box.
• Stress-free installation — mount to the engine, connect system hoses and inlet supply, add fuel, and start. The RKV35G35D-F24C2 arrives engineered, assembled, and ready.

Decoding the RKV35G35D-F24C2 Model Number

What Every Segment of This AR Pump Designation Tells You

• RKV — Pump series: RK Series triplex plunger pump — AR’s commercial industrial pump platform with front-access piston packing and valve serviceability
• 35G — Flow rate: 3.5 GPM
• 35 — Maximum pressure: 3,500 PSI — 3.5 × 3,500 = 12,250 cleaning units
• D — Shaft version: Direct Gas/Diesel Drive — 1″ hollow keyway crankshaft bore for direct coupling to engine output shafts per AR North America model designation convention

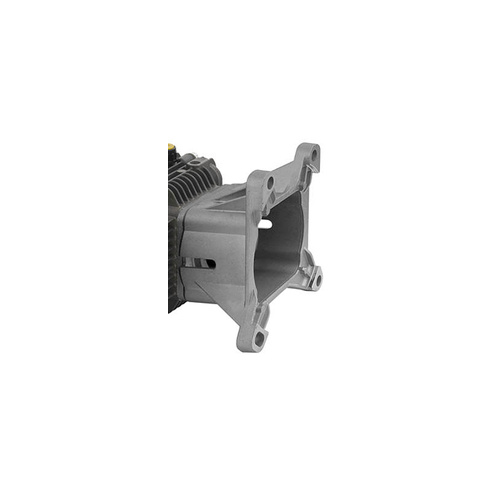

• F24 — Flange type: SAE J609A direct-drive flange — close coupling to gas or diesel engines with a 1″ I.D. cylindrical shaft (AR part AR41866)
• C2 — Unloader code: Gymatic — AR’s factory-approved bypass unloader specification for this model with adjustable pressure regulation
• No trailing I suffix — model terminates at C2, confirming straight 3,500 PSI water output without a factory-installed downstream chemical injector

Key Specifications

RKV35G35D-F24C2 Technical Details at a Glance

• Flow Rate: 3.5 GPM (gallons per minute)
• Maximum Pressure: 3,500 PSI
• Cleaning Units: 12,250 (GPM × PSI)
• Operating Speed: 3,400 RPM engine-driven
• Pump Type: RK Series triplex ceramic plunger pump — three-piston crankshaft-driven design for smooth, low-pulsation output
• Crankshaft Bore: 1″ hollow keyway — direct engagement with engine 1″ output shaft
• Crankcase: Heavy-duty aluminum — precision-balanced crankshaft with oversized bearings in oil-bath lubricated housing for continuous-duty heat management
• Bearings: Oversized — engineered for continuous-duty operation at 3,500 PSI / 3,400 RPM
• Manifold Material: Precision-machined brass — strength, thermal stability, and corrosion resistance
• Plungers: Solid ceramic — precision-ground for superior sealing, reduced friction, and extended wear life
• Valves: Stainless steel — consistent sealing and chemical compatibility under continuous cycling
• Serviceability: Front-access piston packings and valve assemblies; oil sight glass and vented dipstick
• Lubrication: Oil-bath crankcase with factory pre-filled break-in oil
• Flange: F24 — SAE J609A direct-drive flange, 1″ shaft, gas and diesel engine compatible (AR part AR41866)
• Unloader System: Gymatic C2 — adjustable bypass unloader; factory-matched and factory-installed as AR’s approved specification for this model
• Chemical Injector: Not included — straight 3,500 PSI water output; chemical delivery managed externally
• Warranty: 5-year limited warranty — US-based coverage through AR North America

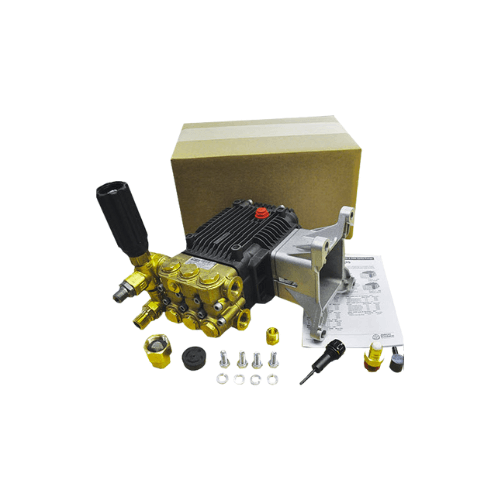

What’s Included in the Box

A Complete, Factory-Configured RKV35G35D-F24C2 Assembly Ready for Installation

• Factory-matched Gymatic C2 adjustable bypass unloader — installed and calibrated for the 3.5 GPM / 3,500 PSI operating point; no downstream injector port on this variant
• AR factory break-in oil — crankcase pre-filled to the correct operating level for first startup
• Oil sight glass and vented dipstick — at-a-glance oil level monitoring and simplified oil changes
• Mounting bolts and hardware — sized for F24 SAE J609A direct-drive flange installation on compatible engines
• Operator’s manual — complete installation, startup, operating, and maintenance procedures including oil change intervals and winterization protocol
• Parts schematic — exploded-view diagram with AR part numbers for every serviceable component
• Factory performance test certification — every RKV35G35D-F24C2 tested for pressure, flow, and sealing integrity before shipment

Heavy-Duty Aluminum Crankcase with Oversized Bearings

Precision-Balanced Crankshaft. Oil-Bath Lubrication. Built for Continuous Duty.

The RKV35G35D-F24C2‘s heavy-duty aluminum crankcase with oversized bearings is a key construction differentiator at this pressure and flow point:

• Heavy-duty aluminum crankcase — aluminum construction provides excellent heat dissipation during continuous 3,500 PSI operation on the RKV35G35D-F24C2, helping manage operating temperatures across long daily duty cycles while keeping the overall assembly compact and lightweight
• Oversized bearings — larger bearing contact surfaces distribute the combined radial and axial loads of triplex plunger motion at 3,400 RPM more evenly, reducing unit bearing stress and extending bearing service intervals in high-cycle commercial environments
• Precision-balanced crankshaft — crankshaft balancing reduces vibration and rotational imbalance at operating speed, improving bearing life, seal geometry stability, and operator comfort during sustained maximum-output operation
• Oil-bath lubrication — continuous lubrication of crankshaft journals and bearings dissipates friction heat and maintains consistent film thickness across extended duty cycles on the RKV35G35D-F24C2

Gymatic C2 Unloader — Adjustable Bypass at 3,500 PSI

Factory-Approved. Adjustable. System Protection. Clean Water Output.

• Adjustable pressure regulation — dial in the ideal operating PSI for different nozzle sizes, surface types, and cleaning tasks on the RKV35G35D-F24C2 without changing hardware. Simple external adjustment supports a wide range of spray tips and accessories.
• System protection at trigger release — the C2 bypass unloader redirects excess flow safely when the trigger gun is released, preventing pressure spikes, overheating, and premature component wear throughout the RKV35G35D-F24C2 operating range
• No factory-installed injector — straight 3,500 PSI water output. Chemical delivery managed externally through a dedicated downstream injector or soft wash system when soap application is required.
• Compact factory-integrated assembly — pre-installed unloader simplifies system setup and ensures controlled pressure regulation right out of the box, reducing build time for OEM and replacement installations

Typical Applications

Where the RKV35G35D-F24C2 Delivers Best Results

• Fleet washing — trucks, buses, heavy vehicles, and trailers where the RKV35G35D-F24C2’s 3,500 PSI cutting action handles road film and grease with chemical applied through an external system
• Agricultural cleaning — farm equipment, tractors, and livestock facilities on gas or diesel engine-powered rigs where 3.5 GPM output and 3,500 PSI handle large agricultural surfaces
• Industrial maintenance — machinery, shop floors, and production equipment where the RKV35G35D-F24C2’s continuous-duty aluminum crankcase construction and oversized bearings support multi-shift operation
• Construction site cleanup — concrete residue, dirt, and jobsite debris where focused 3,500 PSI output handles heavy contamination efficiently
• Municipal services — public works vehicles and infrastructure cleaning where the RKV35G35D-F24C2’s installation-ready factory-matched assembly streamlines fleet maintenance program integration
• OEM and contractor-grade mobile systems — compact F24 direct-drive footprint and factory-matched C2 assembly make the RKV35G35D-F24C2 a practical foundation for new builds and replacement pump upgrades

For operators who prefer a fully configured direct-drive system rather than a bare pump assembly, WSHPWR also carries complete gas and diesel engine pump packages ready to mount on a frame or trailer.

5-Year US Warranty, Full Rebuildability, and Wholesale Pricing

RK Series Performance Backed by Domestic Support

The RKV35G35D-F24C2 is protected by Annovi Reverberi’s 5-year limited warranty through AR North America’s US-based warranty and service network. Every internal wear component — solid ceramic plungers, precision-machined brass manifold seals and o-rings, stainless valve seats and springs, Gymatic C2 unloader service parts, piston packing kits, and crankcase bearings — is stocked domestically through AR’s authorized distribution channels. Contractors, rental fleet operators, municipal purchasing departments, resellers, and volume buyers are invited to contact the WSHPWR wholesale team for pricing on the RKV35G35D-F24C2 and the complete Annovi Reverberi pump and unloader assembly line. WSHPWR maintains one of the most complete AR North America inventories available through any US web store — with thousands of AR products in stock and a continually expanding catalog.

12,250 Cleaning Units. 3,500 PSI. 3.5 GPM. Aluminum Crankcase. Oversized Bearings. Factory-Matched C2.

Italian Engineering. Heavy-Duty Construction. Factory-Approved Assembly. US Warranty Coverage.

For contractors, fleet operators, industrial maintenance teams, agricultural operations, and OEM builders who need 3.5 GPM at 3,500 PSI with a heavy-duty aluminum crankcase, oversized bearings, and precision-balanced crankshaft for continuous-duty commercial operation — in a factory-matched, factory-approved complete assembly with straight water output for external chemical management and stress-free installation from day one — the RKV35G35D-F24C2 delivers a properly engineered, completely rebuildable solution from one of the global pressure pump industry’s most trusted manufacturers. Five years of US warranty. A decade of service life.

Volume buyers can reach the WSHPWR wholesale team directly at wholesale@wshpwr.com to discuss pricing for quantity purchases across the complete Annovi Reverberi lineup.
