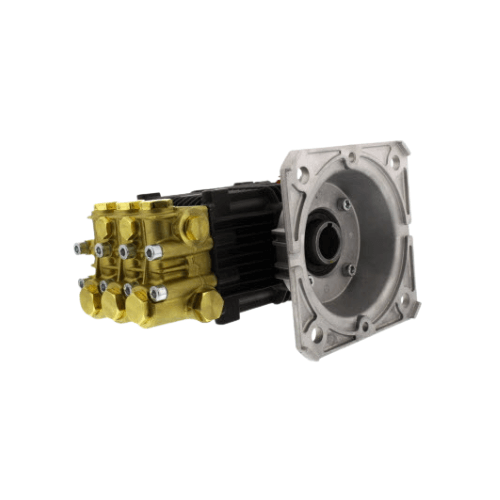

RKA55G13E-F17 5.5 GPM 1300 PSI | F17 Shaft Triplex

RKA55G13E-F17 5.5 GPM 1300 PSI | F17 Shaft Triplex

• The Annovi Reverberi RKA55G13E-F17 is a specialized triplex plunger pump designed for durability, reliability, and efficient performance in light industrial and commercial cleaning applications.
• Delivers 5.5 GPM at a maximum pressure of 1300 PSI, balancing high water flow with moderate pressure for vehicles, patios, light machinery, and commercial equipment.
• Ideal where large-surface rinsing and frequent washdowns are required more than extreme pressure.

Direct Motor Mount Design

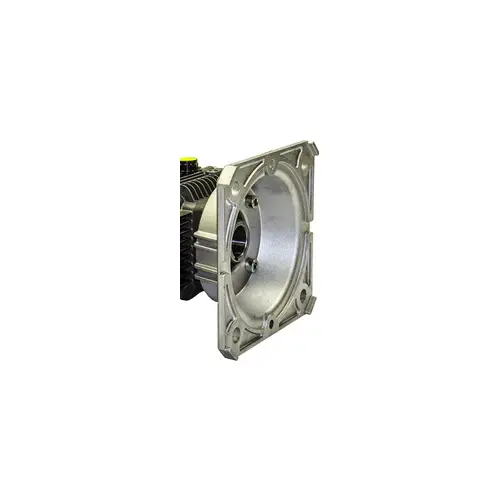

• Built for direct electric motor installation using a 1-1/8 inch hollow shaft and NEMA 182–184 F17 flange.
• Provides a straightforward, space-saving setup with efficient power transfer.
• RKA55G13E-F17 Operates at a steady 1750 RPM to provide consistent cleaning power while minimizing wear.

Key Specifications

• Flow rate: 5.5 GPM.
• Maximum pressure: 1300 PSI.
• Operating speed: 1750 RPM.
• Mounting type: Direct motor mount with NEMA 182–184 flange.
• Shaft size: 1-1/8 inch hollow shaft (F17).
• Pump design: Triplex plunger for smooth and efficient output.
• ECU rating: Approximately 7,150 Effective Cleaning Units.

What’s Included

• Factory-tested pump ready for installation.
• Pre-filled break-in oil for immediate use.
• Vented dipstick for quick and easy oil checks.
• Oil sight glass for ongoing monitoring of oil level and condition.

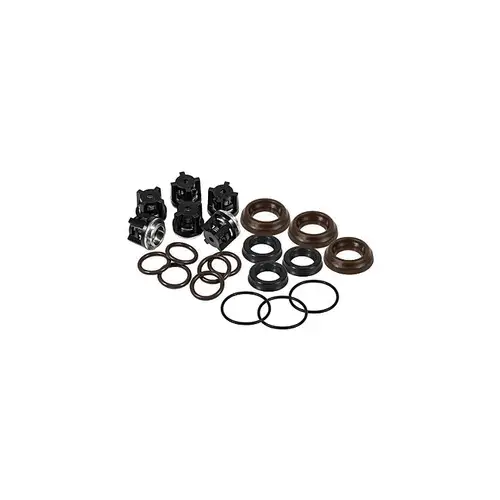

• High-quality seals and stainless steel valves for dependable performance.
• Solid ceramic plungers for durability and reduced wear.
• Nickel-plated head for enhanced corrosion resistance and longevity.
• Detailed operation manual with parts breakdown schematic.
• Backed by a 5-year manufacturer warranty.

How the Pump Works

• Triplex plunger design delivers smooth water flow with reduced vibration compared to axial cam pumps.
• Direct motor connection through the 1-1/8 inch hollow shaft and NEMA 182–184 flange simplifies alignment and coupling.
• Solid ceramic plungers minimize friction and protect seals from heat damage.
• Stainless steel valves regulate water flow precisely, maintaining stable pressure.
• Low 1750 RPM operating speed keeps the pump cooler and reduces mechanical stress for longer life.

RKA55G13E-F17 5.5 GPM 1300 PSI | F17 Shaft Triplex

• Balanced performance with 5.5 GPM at 1300 PSI for efficient rinsing and general cleaning.
• Direct motor mount design reduces installation time and system complexity.
• Durable materials including nickel-plated head, ceramic plungers, and stainless valves extend service life.
• Energy-efficient operation at 1750 RPM with smooth, low-vibration output.
• User-friendly maintenance with vented dipstick and oil sight glass.
• 5-year warranty protection for added confidence in demanding environments.

Typical Applications

• Vehicle washing for cars, trucks, trailers, and small fleets.
• Patios, decks, and outdoor areas that require regular rinsing.
• Light machinery and equipment cleaning in farm, landscape, or workshop settings.
• Commercial cleaning tasks such as storefronts, walkways, and exterior fixtures.
• Routine maintenance where dependable flow and consistent cleaning power are essential.

Why Choose the RKA55G13E-F17

• Provides a practical balance of water flow and pressure for light commercial and industrial cleaning.
• Direct electric motor mounting with F17 flange simplifies system design and saves space.
• Low-wear 1750 RPM operation, nickel-plated head, and premium internals maximize reliability.
• Factory testing, comprehensive documentation, and a 5-year warranty deliver both performance and peace of mind.
