RK1515-HYD 4.0 GPM 2000 PSI Hydraulic Pump | F38 Flange Mount

RK1515-HYD | 4.0 GPM 2200 PSI Hydraulic Pump | F38 Flange Mount | Motor-Ready

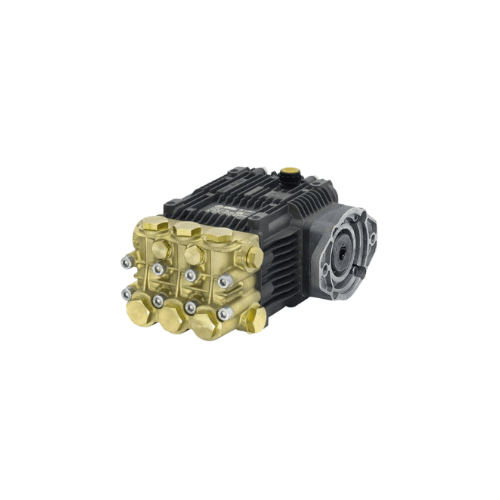

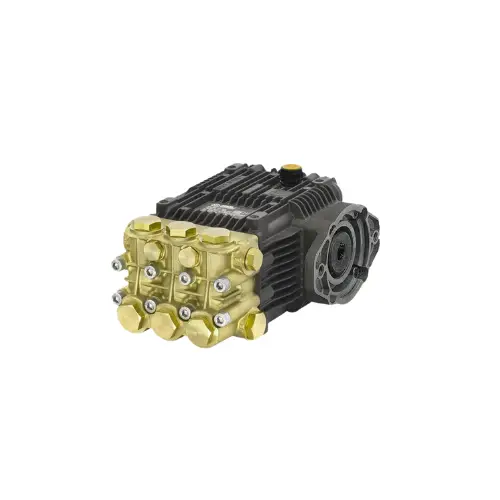

RK1515-HYD is Annovi Reverberi’s workhorse RK 15.15 triplex plunger pump built ready for hydraulic drive: 4.0 GPM (15 L/min) at up to 2200 PSI (150 bar) at 1450 RPM, supplied with the F38 close-couple flange mounted — the SAE A interface that accepts your gear-type hydraulic motor directly on the pump centerline. No motor is included, and that is the point: builders integrating a pump into an existing hydraulic system, fleets standardizing on their own motor inventory, and repowers reusing a serviceable drive all want exactly this configuration — the proven wet end, flanged and waiting, with the motor decision left where it belongs.

The duty point is the moderate-pressure member of the compact 4 GPM family: full commercial rinse-and-wash capability for fleet washdown, agricultural equipment, stables and kennels, and service-truck duty, at a working pressure that stretches seal and valve life past what the higher-pressure siblings deliver. Where the job list runs to washing rather than stripping, the RK1515-HYD is the honest specification — and the least expensive route into hydraulic washdown in the flanged-pump line.

RK1515-HYD Specifications

• SKU: RK1515-HYD
• Configuration: Hydraulic-ready pump — F38 close-couple flange (SAE A 82.55) mounted; hydraulic motor NOT included
• Pump: Annovi Reverberi RK 15.15 triplex plunger pump (228-series frame)
• Flow Rate: 4.0 GPM (15 L/min)
• Maximum Discharge Pressure: 2200 PSI (150 bar)
• Rated Speed: 1450 RPM — never overspeed
• Power Requirement: Approximately 7.5 HP at full duty
• Inlet Port: 1/2″ F
• Discharge Port: 3/8″ F
• Maximum Fluid Temperature: 140°F
• Pump Head: Corrosion-resistant brass with stainless wet-end components
• Plungers: One-piece ceramic
• Replacement Pump: AR21599 (F38 flange replacement)

Choosing the Motor

The F38 flange makes motor selection a displacement decision, and the arithmetic is one line: RPM ≈ 231 × hydraulic GPM ÷ displacement (in³), targeting 1450 RPM against roughly 10 hydraulic horsepower of continuous supply. Two routes fit most machines. Circuits with modest flow at good pressure suit the HYDM116M (0.71 cid — about 4.4 GPM of oil, the 4 GPM class’s default driver, stocked by WSHPWR); circuits with more flow at moderate pressure suit the 1.17 cid class (about 7.5 GPM of oil at roughly 2,000 PSI working). Either way: relieve the circuit within the motor’s rating, filter the return at 10–25 microns, and provide oil cooling for continuous trigger-on duty. Call WSHPWR with your machine’s auxiliary flow and pressure and we will name the motor in one conversation — or ship it alongside the pump.

The F38 Advantage

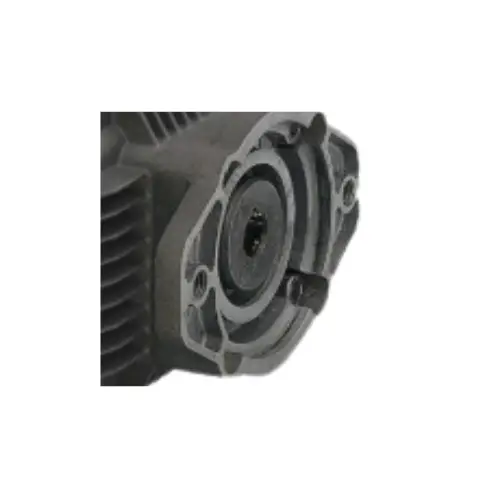

AR’s F38 system is the common language of compact hydraulic drive: an SAE A two-bolt close-couple that puts the gear motor on the pump’s centerline with no belts, pulleys, guards, or field alignment, and no side loading reaching bearings or seal packs. Because the interface is standardized, the RK1515-HYD joins whatever the fleet already runs — motors move between this pump and the other F38-flanged units as needs evolve, spares consolidate onto one shelf, and a motor swap is four bolts, not a fabrication project. Output stays independent of the host machine’s engine speed, so wash performance holds steady whether the truck idles or works.

Why the Moderate-Pressure Spec Earns Its Keep

Pressure is a budget: every PSI above what the work requires is spent on accelerated seal wear, valve seat erosion, and hose fatigue. At 2200 PSI, the RK1515-HYD rinses mud, manure, feed residue, and road film off equipment all day while its wet end loafs — which is why the maintenance interval math on this pump reads so favorably against the 3000 PSI tier. Operations whose duty genuinely includes stripping and heavy degreasing should step up to the higher-pressure F38 siblings; operations that wash should not pay — in dollars or in wear — for pressure the nozzle never needs.

RK-Series Construction

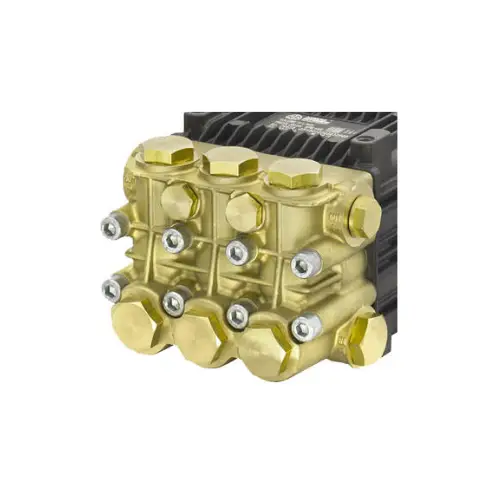

The 228-series frame carries AR’s proven compact architecture: corrosion-resistant brass head, stainless valves, one-piece ceramic plungers for heat dissipation and abrasion resistance, and a die-cast aluminum crankcase with oil sight glass. Intake and delivery valves sit behind service plugs for inspection without dismounting the RK1515-HYD, repair kits interchange with the RK fleet everywhere AR is sold — and when the wet end eventually reaches the end of its service life, the AR21599 replacement pump restores factory performance while your motor and mounting carry over.

Installation & Operation Notes

Mount horizontally and confirm hydraulic motor rotation at commissioning — gear motors are direction-specific, and reversed lines spin the pump backward. Feed the 1/2″ inlet from a flooded, filtered supply with short, unrestricted plumbing. Fit an unloader set against working pressure with appropriate relief protection, size the nozzle to 4.0 GPM at your target pressure, hold 1450 RPM as the ceiling regardless of available oil flow, and winterize before cold-weather storage.

Quality Assurance & Maintenance

Every RK1515-HYD ships factory-tested for flow rate, pressure stability, and vibration. Maintenance is the familiar RK routine — crankcase oil changes, seal inspection, periodic valve checks with the industry’s most widely stocked repair kits — on the stretched intervals the moderate duty point earns.

RK1515-HYD Key Features & Applications

• 4.0 GPM at 2200 PSI, 1450 RPM — the moderate-pressure workhorse of the flanged 4 GPM family.
• F38 close-couple flange mounted — bolt on your gear motor and the drive is complete.
• Motor sold separately by design: integrate, standardize, or repower on your own terms.
• Runs on ~4.4–7.5 GPM of oil (~10 hydraulic HP) depending on motor choice — nearly any circuit qualifies.
• Documented repair path: AR21599 flange replacement pump reuses your motor and mounting.
• Ideal for fleet and farm washdown, stables and kennels, service trucks, rental builds, and the lowest-cost entry into F38 hydraulic washing.
