RGA4G40HN 4.0 GPM 4000 PSI | Industrial Pressure Pump

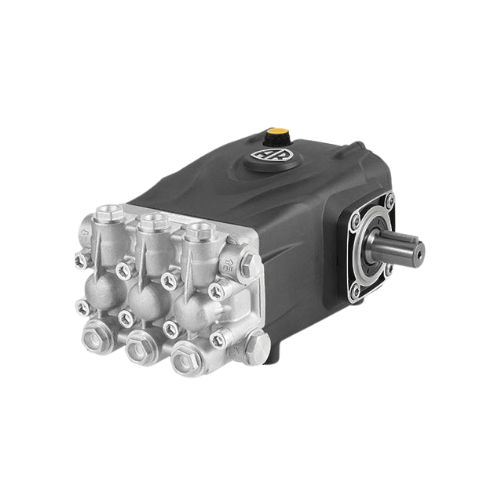

RGA4G40HN 4.0 GPM 4000 PSI Industrial Triplex Pump

• The RGA4G40HN is a commercial-duty triplex plunger pump designed for industrial wash systems, contractor rigs, and permanent wash bays that require consistent 4.0 GPM at 4,000 PSI performance.
• Built around a low-speed 1,750 RPM operating range, this pump is intended for applications where extended run time, reduced vibration, and controlled operating temperature are critical to system reliability.
• The 24 mm solid shaft configuration supports flexible drive options, including belt-drive from gas engines, direct coupling to electric motors, or integration with gearboxes and reduction drives.
• Internal flow geometry and valve layout are optimized to deliver stable pressure with reduced pulsation, supporting predictable cleaning performance at the gun and protecting downstream components.
• Designed as a fully serviceable industrial component, the pump uses replaceable seals, valves, and plungers so it can be rebuilt and kept in service over multiple maintenance cycles.
• Suited for cold-water commercial systems, the RGA4G40HN serves as a core component for equipment builders, fleet facilities, and service contractors standardizing on a 4,000 PSI platform.

Performance & Operating Characteristics of the RGA4G40HN

• Delivers a nominal 4.0 GPM at 4,000 PSI, providing strong impact for cutting through grease, road film, mud, and other heavy deposits on machines, vehicles, and concrete surfaces.
• Operates at 1,750 RPM to keep internal speeds conservative, limiting friction and heat buildup and supporting longer service life compared to higher-speed pump designs.
• Triplex plunger architecture produces a relatively low-pulsation flow, improving spray pattern stability, reducing hose whip, and lowering peak loads on guns and fittings.
• Well matched to single-gun heavy-duty wash systems, large-diameter surface cleaners, and long hose runs when the rest of the system is engineered around the pump’s flow and pressure range.
• Capable of handling frequent start–stop cycles in wash bays and mobile rigs when paired with a properly sized unloader, relief valve, and thermal management strategy.
• Provides a firm, controlled feel at the trigger, which is important for operators working around sensitive equipment, painted surfaces, and detailed components.

Construction, Materials & Mechanical Design

• Heavy-duty brass manifold is on theRGA4G40HN is engineered to withstand 4,000 PSI working pressure while offering good resistance to corrosion under typical wash-water conditions.
• Ceramic plungers provide a hard, polished surface that resists scoring and thermal cracking, supporting long seal life under demanding duty cycles.
• Stainless steel valve assemblies are designed for reliable seating and quick response over thousands of pressure cycles, maintaining volumetric efficiency and output consistency.
• High-strength internal components, including crankshaft and connecting rods, are sized for the low-speed 1,750 RPM operating envelope and continuous-duty service.
• The crankcase is configured for splash lubrication and is supplied with oil from the factory, allowing quick installation and initial test runs.
• Integrated oil sight glass and vented dipstick support basic daily checks and clean oil changes, helping maintain a stable lubrication environment throughout the service interval.

Drive Integration & System Layout

• 24 mm solid shaft allows straightforward connection to belt-driven systems using pulleys and keyways, making it compatible with a wide range of gas engines and drive ratios.
• Can be directly coupled to appropriately sized electric motors using flexible couplings or gear reducers when a compact, enclosed drive package is preferred.
• Suitable for use with gearboxes on engine-driven skids where 1,750 RPM pump speed is required while the engine runs at its governed RPM.
• Inlet and discharge positions support clean plumbing routing to filters, hose reels, manifolds, and accessories in both stationary and mobile frame designs.
• Pairs with unloaders, regulators, safety relief valves, and thermal dump valves to create a complete pressure system that protects both the pump and the operator.
• Compatible with common accessory packages such as surface cleaners, undercarriage tools, rotating nozzles, and foam systems sized to 4.0 GPM at 4,000 PSI.

Reliability, Serviceability & Maintenance Practices

• Low-speed geometry helps limit vibration transmitted into the skid or frame, reducing fatigue on welds, brackets, and plumbing connections over the life of the installation.
• Valve and seal assemblies are accessible for periodic service and rebuilds using standard shop tools, minimizing downtime and allowing planned maintenance intervals.
• Routine checks of crankcase oil, inlet filtration, and unloader performance can be incorporated into normal service routines for fleet or facility maintenance teams.
• Proper inlet plumbing with adequately sized suction lines and strainers helps prevent cavitation, which is one of the primary causes of premature damage in high-pressure pumps.
• When operated within its rated pressure, speed, and temperature limits, the pump is capable of multi-season service in demanding contractor and industrial environments.
• Documentation and parts breakdown information support both in-house maintenance programs and external service providers responsible for repairs and overhauls.

Typical Applications & Use Cases

• Industrial equipment cleaning and degreasing in plants, maintenance shops, and fabrication facilities.
• Fleet washing for trucks, trailers, buses, mixers, refuse vehicles, and heavy transport equipment.
• Warehouse, factory, and commercial facility maintenance, including loading docks, pads, and high-traffic hard surfaces.
• Agricultural equipment cleaning for tractors, harvesters, spreaders, and support equipment exposed to soil, crop residue, and fertilizers.
• Contractor-operated mobile and stationary cold-water systems used for building exteriors, concrete restoration, and jobsite cleanup.
• General-purpose high-pressure cleaning where a 4.0 GPM, 4,000 PSI triplex pump provides the required impact, durability, and serviceability for long-term deployment you can trust the RGA4G40HN.
