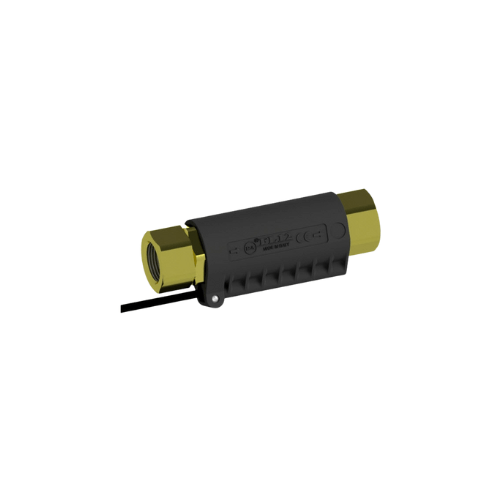

PAFL12 | FL12 In-Line Flow Switch, 4350 PSI Compact Sensor

PAFL12 | FL12 In-Line Flow Switch, 4350 PSI Compact Sensor

Product Configuration

• PAFL12 is a compact in-line flow switch engineered for flow-based control in professional pressure washer and industrial water systems.
• Rated for high-pressure operation up to 4,350 PSI in applications requiring reliable pump cycling and protection logic.
• Designed to provide dependable flow-sensing output to a control circuit, relay, or automation panel as part of an integrated system.
• In-line body format supports tight-frame installs on skids, wall stations, trailer rigs, and packaged equipment.
• Application intent supports equipment where stable start/stop control based on water movement is required for uptime and safety.

Automatic Pump Control

Start/Stop Function

• Starts the pump or enables a control circuit when flow is present and the system meets the calibrated activation point.
• Stops the pump or opens the control circuit when flow ceases to prevent unnecessary run time during idle conditions.
• Supports pump protection by reducing dry-running risk, overheating risk, and component stress during no-flow events.
• Supports equipment longevity by limiting run time to active demand conditions instead of continuous operation.
• Supports energy control by reducing unnecessary motor runtime when downstream demand is closed.

Flow-Sensing Operation

Sensing Method

• Internal piston-style flow sensing mechanism reacts to real-time water movement inside the in-line housing.
• Magnetic actuation is used to trigger a sealed switch element when the calibrated flow threshold is reached.
• Spring return restores the sensor to the rest state when flow drops below the threshold.
• Switching output is intended for low-voltage signaling to a pump control relay or automation input.
• Functional goal is repeatable switching behavior across frequent start/stop cycles in working environments.

Pressure Rating and Build

Pressure and Duty Capability

• Rated up to 4,350 PSI for professional and industrial pressure environments.
• Designed for high duty cycles and frequent cycling in automated wash equipment and demand-driven pumping systems.
• Intended to tolerate pressure spikes and normal vibration encountered on mobile rigs and industrial frames.
• Streamlined internal flow path is specified to minimize restriction and reduce unnecessary pressure drop.
• Sealing integrity and mechanical stability are specified for long-term field use under repeated cycling.

Materials and Sealing

• Body material is specified by configuration and may be brass or stainless steel depending on the supplied version.
• Chemical-resistant seals are specified to support hot- and cold-water use within system operating limits.
• Low-friction piston assembly is specified for consistent response through extended cycle counts.
• Sealed electrical chamber is specified to reduce moisture intrusion and corrosion risk at the switching element.
• Construction intent supports long service life when installed with proper filtration and plumbing practices.

Installation and Integration

Plumbing Integration

• In-line footprint supports installation in tight equipment frames without extensive re-plumbing.
• Threaded ports are intended to integrate with common hose and pipe fittings used in commercial wash equipment.
• Install orientation and location should support clean flow sensing and predictable activation under operating conditions.
• Placement should support service access for inspection, flushing, and wiring verification without disassembly of major components.
• System design intent is clean routing with adequate support to avoid strain on ports and fittings.

Electrical Integration

• Switch output is intended to signal a control relay or pump controller rather than carry full motor load directly.
• Wiring practices should follow the equipment control standard in use, including appropriate protection and secure terminations.
• Sealed chamber design intent supports reliability in wet environments when installed with proper cable routing and strain relief.
• Integration should be validated during commissioning to confirm correct start/stop behavior at the application’s flow threshold.
• Control logic should be configured to match the pump, motor, and safety devices used in the complete system.

Applications PAFL12 | FL12 In-Line Flow Switch, 4350 PSI Compact Sensor

Typical Use Cases

• Pressure washer systems with trigger guns or remote flow controls requiring automatic cycling behavior.
• Industrial wash stations and sanitation equipment where demand-driven pump operation is required.
• Agricultural wash systems and livestock facility cleaning equipment with frequent on/off usage patterns.
• Food-processing washdown equipment operating within site hygiene and safety procedures.
• Automated wash machinery where consistent flow detection is required for sequence control.
• Mobile cleaning rigs and field-service wash platforms where protection against idle run time improves uptime.

Operational Advantages

PAFL12 System-Level Benefits

• Reduces pump overrun during idle periods to limit heat and component wear.
• Supports system safety by limiting operation when flow is not present at the sensing point.
• Improves control consistency in automated workflows by providing repeatable flow-based switching input.
• Supports longer pump and motor life by reducing unnecessary runtime and cycling-related stress outside demand windows.
• Supports stable hydraulic performance by maintaining a compact, low-restriction in-line flow path.

Service and Maintenance

Maintenance Expectations

• PAFL12 Maintenance approach is minimal and centers on keeping the flow path clean and free of mineral or debris buildup.
• Routine flushing with clean water supports consistent sensor movement and reliable activation behavior.
• Periodic inspection should confirm secure fittings, leak-free joints, and stable wiring connections.
• Systems with mineral-rich water should use appropriate inlet filtration practices to reduce scale and debris loading.
• Service scheduling should align with overall pump PM intervals to keep the control system predictable.

PAFL12 | FL12 In-Line Flow Switch, 4350 PSI Compact Sensor

Verification and Field Readiness

• Calibration and testing intent supports precise switching behavior and consistent electrical output under operating conditions.
• Sealing integrity intent supports resistance to moisture exposure and long-term reliability in wash environments.
• Build intent supports rugged use in environments with vibration, pressure spikes, and frequent start-stop cycles.
• Repeatable performance intent supports standardized fleet builds and consistent equipment behavior across multiple rigs.
• Component intent is dependable control integration for professional systems that rely on predictable pump cycling.
