MVR42018 Adjustable Injector 1.8 mm | 4060 PSI

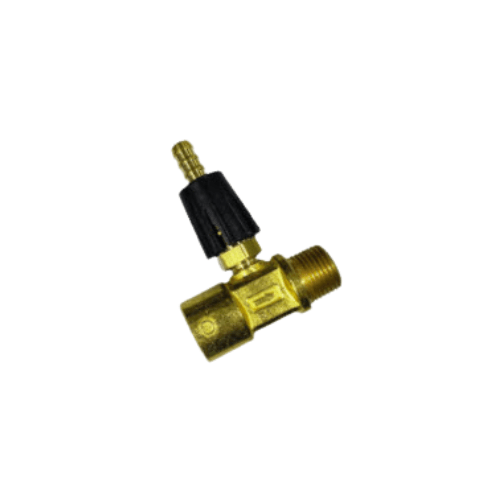

MVR42018 Adjustable Chemical Injector (1.8 mm, 4,060 PSI)

• Adjustable Venturi chemical injector engineered for controlled downstream detergent delivery in professional pressure washer systems.
• Configured with a 1.8 mm orifice and rated to 4,060 PSI to support reliable chemical pickup without adding complex control valves.
• Matched to approximately 2.5–5.5 GPM equipment where stronger draw and repeatable dilution are required across varied wash programs.
• Designed for WSHPWR.com industrial users who need consistent application strength, fast soap-to-rinse transitions, and a service-friendly injector that holds performance under daily use.

Chemical Injection Method

MVR42018 Venturi Draw with Metered Adjustment

• Venturi throat creates a controlled low-pressure zone that pulls detergent through the suction line when backpressure is reduced in chemical mode.

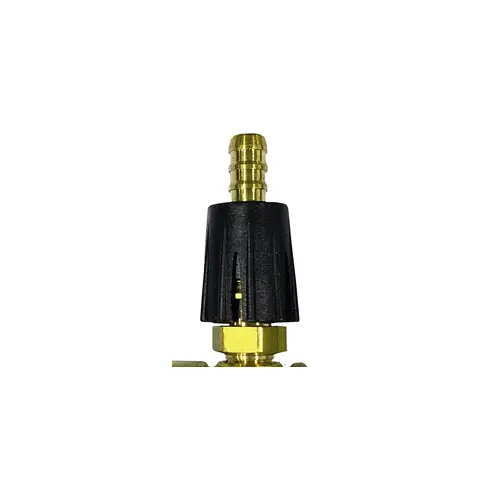

• Integrated metering knob provides on-the-fly ratio control to match chemical strength to soil load, surface type, and detergent manufacturer guidance.
• 1.8 mm orifice sizing supports a stronger, more stable draw than smaller injectors, improving pickup consistency through moderate hose lengths and typical reel layouts.
• Uniform mixing at the injector helps standardize results across crews by reducing operator-dependent variation in concentration.

MVR42018 Tip-Based Soap and Rinse Switching

• Designed for downstream operation where chemical draw is typically engaged with a low-pressure soap nozzle and stopped by switching to a high-pressure rinse tip.
• Supports fast workflow changes without re-plumbing or adding separate bypass valves, keeping production cleaning efficient.
• Helps maintain predictable dwell time and coverage by stabilizing draw when operators cycle the trigger frequently.
• Improves rinse quality by allowing immediate transition back to high-pressure operation once chemical application is complete.

System Integration and Performance MVR42018

Optimized for 2.5–5.5 GPM Systems

• Built for machines where injector sizing directly impacts suction strength, foam consistency, and usable rinse pressure.
• Balanced internal geometry supports dependable chemical pickup while minimizing unnecessary restriction through the discharge path.
• Maintains stable draw characteristics on common jobsite configurations including hose reels, moderate lift, and typical manifold layouts.
• Supports repeatable cleaning cycles by keeping concentration steady from startup through final rinse, even when multiple operators share the same unit.

MVR42018 Backflow Control and Supply Protection

• Integrated check valve prevents reverse flow into the chemical container during shutdown, pressure spikes, or rapid mode changes.
• Helps protect detergent quality by reducing unintended dilution and limiting contamination through the suction circuit.
• Improves response when returning to chemical mode by reducing flooding of the pickup line and stabilizing draw sooner.
• Supports cleaner operation in mobile rigs by limiting chemical migration when the injector is not actively drawing.

Construction and Durability

Materials for Daily Chemical Exposure

• Brass body provides durability and dimensional stability for long service life in mobile rigs, trailers, and fixed wash bays.
• Stainless-steel internal components improve resistance to corrosion and wear when used with compatible soaps, detergents, and degreasers.
• Precision-machined internal bore reduces turbulence and hydraulic losses, helping maintain consistent system behavior.
• Designed to hold performance under vibration, thermal cycling, and frequent connect/disconnect handling typical of field equipment.

Compact Inline Layout for Skids and Carts

• Inline body integrates cleanly downstream of the unloader and upstream of the hose, supporting straightforward plumbing on compact equipment layouts.
• Flow-direction marking on the body reduces installation errors that can cause weak draw or inconsistent chemical pickup.
• MVR42018 small footprint fits among filters, gauges, unloaders, and manifolds without forcing tight bends that restrict flow.
• Service-friendly access to the metering control supports quick adjustments during production work.

Operation and Maintenance

Setup Practices for Stable Suction

• Use a vented chemical container and place it close to the injector to reduce suction losses and stabilize pickup.
• Keep suction hose runs short and free of kinks; avoid soft tubing that can collapse under draw and reduce chemical delivery.
• Maintain airtight suction connections; small air leaks commonly cause intermittent pickup, weak foam, and inconsistent dilution.
• Adjust the metering knob gradually and verify application strength at the nozzle when changing detergents, temperatures, or hose configurations.

Routine Service to Preserve Performance

• Flush clean water through the injector and suction line after chemical use to reduce residue buildup and protect internal components.
• Inspect and clean the intake screen regularly to maintain unrestricted flow into the suction circuit.
• Replace hardened, swollen, or discolored suction tubing as preventive maintenance to eliminate air leaks and restriction.
• Keep chemical containers and pickup assemblies clean to maintain predictable draw and consistent mixing over time.

MVR42018 Technical Specifications

• Model: MVR42018
• Type: Adjustable Venturi chemical injector with metering control
• Orifice: 1.8 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 2.5–5.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

Typical Industrial and Commercial Applications

• Fleet and vehicle wash operations where adjustable concentration is required for road film removal, traffic film, and mixed-surface cleaning.
• Construction and rental equipment washdown programs that benefit from stronger draw and consistent dwell on oils, soils, and heavy grime.
• Agricultural facilities and wash areas where repeatable chemical strength improves productivity and reduces rework across rotating crews.
• Commercial properties and facility maintenance programs using 2.5–5.5 GPM machines for routine exterior cleaning and service-area washdowns.
• Mobile wash rigs that need compact, adjustable downstream injection with stable pickup and rapid soap-to-rinse transitions.
