MVR41021 Adjustable Injector 2.1 mm | 4060 PSI

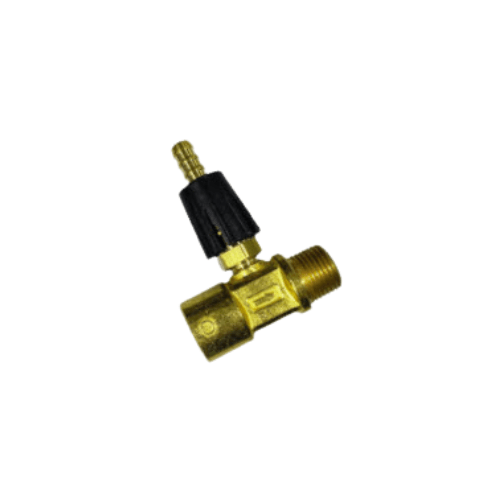

MVR41021 Adjustable Chemical Injector (2.1 mm, 4,060 PSI)

• Adjustable Venturi chemical injector engineered for controlled detergent draw and repeatable dilution in professional and industrial pressure washing systems.
• Configured with a 2.1 mm orifice and rated to 4,060 PSI to support high-duty equipment where stable suction, accurate metering, and backflow protection are required.
• Designed for approximately 3.0–6.0 GPM machines where chemical pickup must remain dependable through hose reels, extended hose lengths, and frequent trigger cycling.
• Built for mobile rigs and fixed wash bays that demand quick soap-to-rinse transitions, service-friendly installation, and consistent output across rotating operators.

MVR41021 Chemical Injection Method

Venturi-Based Draw with Adjustable Metering

• Uses a Venturi restriction to create a controlled low-pressure region that pulls detergent into the water stream during low-pressure chemical mode.

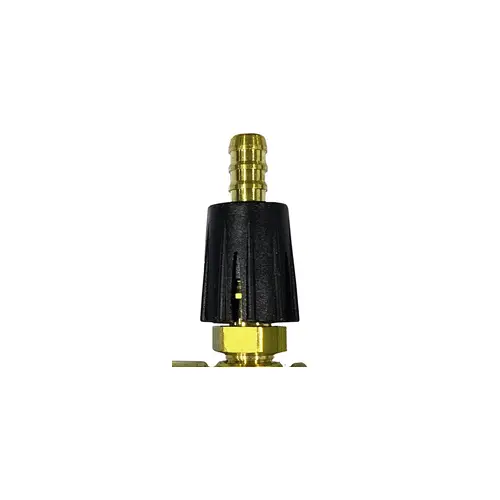

• Integrated metering knob allows smooth, repeatable adjustment of chemical concentration to match soil load, surface type, and product guidance.
• 2.1 mm orifice sizing supports reliable suction on mid-to-high output systems while limiting unnecessary restriction that can reduce rinse performance.
• Designed to deliver uniform mixing at the injector so downstream application remains consistent when switching between operators or job types.

Control, Consistency, and Chemical Efficiency

• MVR41021 Adjustability supports standardized wash procedures by allowing crews to set a preferred dilution range and repeat it across sites, shifts, and machines.
• Helps prevent over-application that can attack finishes, increase rinse time, or create downstream discharge concerns.
• Helps prevent under-application that increases dwell time, brushing effort, and rework—especially on oily films and road grime.
• Supports predictable wetting and dwell by enabling quick tuning for water temperature, surface porosity, and detergent viscosity changes.

System Integration and Performance

Flow Range Compatibility and Pressure Management MVR41021

• Optimized for roughly 3.0–6.0 GPM systems where injector sizing determines suction stability, mixing behavior, and overall discharge characteristics.
• Designed to minimize unnecessary pressure loss so the machine maintains usable performance during rinse cycles and transitions cleanly between chemical mode and high-pressure operation.
• Works best when installed in the correct location in the discharge circuit and paired with low-pressure soap tips that enable Venturi suction.
• Stable draw characteristics support consistent pickup through typical field configurations, including hose reels, longer hose runs, and frequent on/off trigger cycles.

MVR41021 Backflow Protection and Pickup-Line Control

• Integrated check valve prevents reverse flow into the chemical line, protecting detergent containers from contamination and unintended dilution.
• Helps keep pickup lines from flooding during shutdown, improving response time when returning to chemical mode.
• Reduces risk of chemical container pressurization during pressure spikes, thermal expansion, or rapid switching events.
• Supports cleaner operation by limiting migration of water into the suction hose when the injector is not actively drawing.

Construction and Durability

Materials for Daily Professional Use

• MVR41021 corrosion-resistant brass body provides structural strength for vibration, handling, and continuous-duty operation in mobile trailers, skids, and fixed bays.
• Stainless-steel internal components resist wear and corrosion in detergent environments common to commercial wash programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency and nozzle impact.
• Compact inline profile fits cleanly among filters, unloaders, gauges, and manifolds without forcing tight bends or restricting service access.

Installation Features That Reduce Errors MVR41021

• Inline body is intended to mount downstream of the pump/unloader where chemical injection is typically managed during low-pressure operation.
• Flow-direction marking supports correct orientation and reduces troubleshooting time associated with reversed installation.
• Standard threaded or quick-connect compatibility supports rapid replacement and consistent fleet builds.
• Service-friendly layout keeps the metering control accessible for technicians even on compact skid packages.

Operation and Maintenance

Operating Practices for Stable Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle; switching to a high-pressure nozzle generally stops draw by increasing backpressure.
• Best results are achieved when the detergent container is vented, located close to the injector, and connected with properly sized, unrestricted suction hose.
• Stable suction depends on airtight connections, a clean intake screen, and eliminating kinks, restrictions, or air leaks in the pickup circuit.
• Metering adjustments should be made gradually to maintain consistent foam and predictable dwell, especially when changing detergent type or water temperature.

Routine Maintenance Guidelines

• Flush clean water through the injector and pickup line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect the intake screen, suction tubing, and fittings routinely for debris, softening, or air leaks that can interrupt chemical draw.
• Replace aged or hardened suction hose proactively in high-use environments to maintain repeatable performance and reduce service calls.
• Keep chemical containers free of sediment to protect sealing surfaces and preserve consistent pickup over long duty cycles.

Technical Specifications

• Model: MVR41021
• Type: Adjustable Venturi chemical injector with metering control
• Orifice: 2.1 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.0–6.0 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MVR41021 Adjustable Injector 2.1 mm | 4060 PSI MV Line

Typical Industrial and Commercial Applications

• Fleet yards and transit operations where adjustable concentration is needed to manage road film, diesel residue, and mixed soils efficiently.
• Construction equipment bays and rental fleets where detergent strength must be tuned for grease, clay, and heavy buildup without over-application.
• Agricultural wash areas where seasonal temperature swings and organic loading require controllable dilution for consistent dwell and rinse.
• Commercial and industrial properties using 3.0–6.0 GPM rigs that need controlled downstream chemical delivery with dependable draw through hose reels and long runs.
• Any high-duty setup requiring precise downstream injection, fast soap-to-rinse transitions, and consistent performance under frequent trigger cycling.
