MVR30023 Adjustable Injector 2.3 mm | 4060 PSI

MVR30023 Adjustable Chemical Injector (2.3 mm, 4,060 PSI)

• Adjustable Venturi chemical injector engineered for high-output detergent draw and operator-managed dilution in professional pressure washing systems.
• Configured with a 2.3 mm orifice and rated to 4,060 PSI for commercial equipment where strong suction, repeatable tuning, and dependable backflow protection are required.
• Designed for approximately 3.5–6.5 GPM systems that need robust draw performance while allowing technicians to fine-tune chemical strength for varied surfaces and heavy soil loads.
• Built for mobile wash trailers, fleet bays, agricultural wash programs, and industrial washdown where adjustable downstream injection increases capability without adding unnecessary plumbing.

MVR30023 Chemical Injection Method

Venturi-Based Draw with Adjustable Metering

• Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent from a container into the water stream during low-pressure chemical mode.

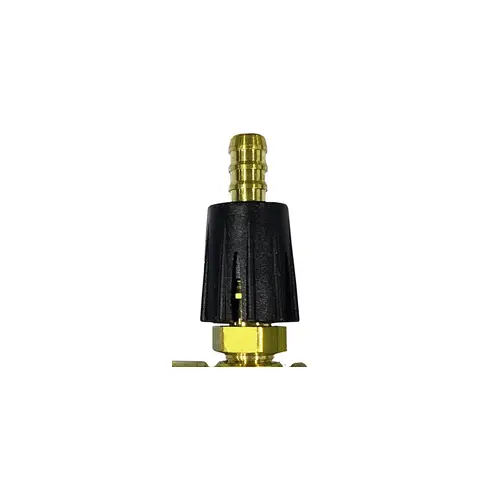

• Integrated metering control provides smooth, repeatable adjustment of chemical concentration to match contamination level, surface type, and dwell requirements.
• Higher-capacity orifice supports strong suction characteristics for high-flow rigs that must maintain draw through hose reels and longer discharge runs.
• Adjustment capability supports consistent results across multiple detergents and degreasers that respond differently under suction and temperature changes.

Consistency and Control for Heavy-Duty Work

• MVR30023 Adjustable design supports standardized wash procedures by allowing crews to set a preferred concentration range for specific tasks and repeat it shift after shift.
• Improves process control on mixed workloads where the same rig may be washing equipment, vehicles, hardscape, and shop areas in a single route.
• Supports predictable wetting and dwell by enabling operators to tune concentration based on ambient conditions, water temperature, and surface porosity.
• Reduces chemical waste and rework by allowing fast correction if foam is too light, dwell is too short, or concentration is excessive for the substrate.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• MVR30023 Optimized for roughly 3.5–6.5 GPM systems where injector sizing influences suction strength, downstream mixing, and overall hydraulic efficiency.
• Designed to minimize unnecessary restriction so the system maintains usable performance during rinse cycles and transitions cleanly between soap and high-pressure operation.
• Best performance is achieved when installed in the correct location in the discharge circuit and paired with low-pressure soap tips that enable stable Venturi suction.
• Stable draw characteristics support consistent chemical pickup across typical high-output layouts where hose length, reel height, and trigger cycling vary.

Backflow Protection and Chemical Line Control

• Integrated check valve prevents reverse flow into the chemical line, protecting detergent containers from contamination and unintended dilution.
• Helps keep suction lines from flooding during shutdown, improving responsiveness when returning to chemical mode.
• Reduces the risk of chemical container pressurization during pressure spikes, thermal expansion, or rapid on/off cycling.
• Supports cleaner operation by limiting migration of water into the suction hose when the injector is not actively drawing.

Construction and Durability

Materials Selected for Chemical Exposure

• Corrosion-resistant brass body provides strength and durability for daily handling, vibration, and continuous-duty service in mobile and stationary systems.
• Stainless-steel internal components resist wear and corrosion in detergent and degreaser environments common to fleet, agricultural, and industrial cleaning programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency and outlet pressure.
• Compact inline form factor integrates cleanly into skids, carts, and wall-mounted manifolds without excessive plumbing complexity.

MVR30023 Adjustable Injector 2.3 mm | 4060 PSI Chem

Installation Details That Reduce Errors

• Inline body is intended to mount downstream of the unloader where chemical injection is typically managed during low-pressure operation.
• Flow-direction marking supports correct orientation and reduces troubleshooting time associated with reversed installation.
• Standard threaded or quick-connect compatibility supports rapid service replacement and consistent fleet builds.
• Service-friendly profile helps maintain access to the metering control for in-field tuning without disassembling the manifold.

Operation and Maintenance

MVR30023 Operating Practices for Stable Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle; switching to a high-pressure tip generally stops draw by increasing backpressure.
• Best results are achieved when the detergent container is vented, positioned close to the injector, and connected with properly sized, unrestricted suction hose.
• Stable draw depends on airtight suction connections, a clean intake screen, and eliminating kinks or restrictions that reduce suction flow.
• Metering adjustments should be made gradually to maintain consistent foam and predictable dwell, especially when changing detergent type, temperature, or application method.

Routine Maintenance Guidelines

• Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect the intake screen, suction tubing, and fittings routinely for debris, softening, or air leaks that can interrupt chemical draw.
• Replace hardened suction hose and strainers proactively in high-use environments to maintain repeatable performance and minimize downtime.
• Keep chemical containers free of sediment to protect internal sealing surfaces and preserve consistent suction performance.

MVR30023 Technical Specifications

• Model: MVR30023
• Type: Adjustable Venturi chemical injector with metering control
• Orifice: 2.3 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.5–6.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MVR30023 Adjustable Injector 2.3 mm | 4060 PSI Chem

Typical Industrial and Commercial Applications

• Fleet washing and heavy equipment cleaning where operators need adjustable concentration for changing soils, oils, and road film.
• Agricultural sanitation and washdown programs using 3.5–6.5 GPM systems that require repeatable chemical delivery across rotating crews.
• Industrial washdown lines where chemical strength must be tuned for concrete, loading areas, machinery exteriors, and general plant cleaning tasks.
• Mobile wash trailers and contractor fleets that benefit from one injector adaptable to multiple detergents and job conditions.
• Any high-output system needing adjustable, downstream detergent injection with reliable draw through long hose lengths and multi-gun setups.
