MVR30021 Adjustable Injector 2.1 mm | 4060 PSI Chem

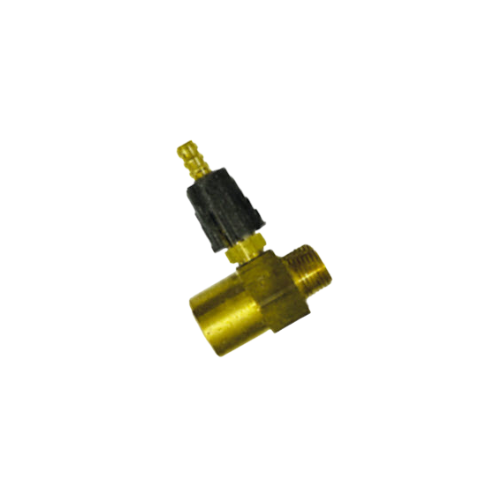

MVR30021 Adjustable Chemical Injector (2.1 mm, 4,060 PSI)

• Adjustable Venturi chemical injector engineered for controlled detergent draw and operator-managed dilution in professional pressure washing systems.
• Configured with a 2.1 mm orifice and rated to 4,060 PSI for commercial equipment where strong suction, repeatable tuning, and reliable backflow protection are required.
• Designed for approximately 3.0–6.0 GPM systems that need stable draw performance while allowing technicians to fine-tune chemical strength for different surfaces, soils, and wash procedures.
• Built for mobile trailers, wash bays, and skid systems where adjustable downstream injection improves flexibility without adding complexity or extra valves.

Chemical Injection Method

Venturi-Based Draw with Adjustable Metering

• Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent from a container into the water stream during low-pressure chemical mode.

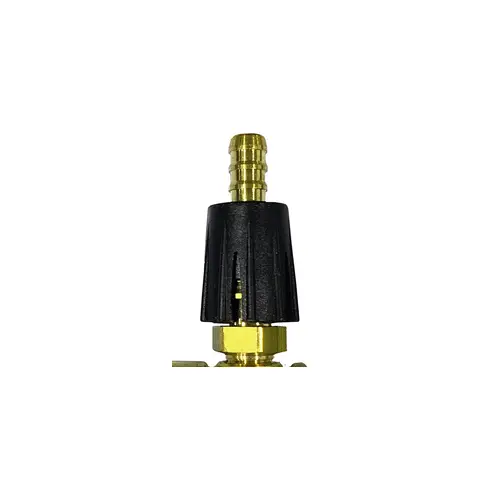

• Integrated metering control provides smooth, repeatable adjustment of chemical concentration to match soil load and surface sensitivity.
• Balanced suction characteristics support typical pro configurations, including hose reels, longer discharge runs, and frequent trigger cycling.
• Adjustment capability supports consistent results across varied detergents and degreasers that respond differently under suction.

MVR30021 Consistency and Control Across Crews

• Adjustable design supports standardized procedures by allowing crews to set a preferred range for specific tasks and repeat it across service calls and sites.
• Improves process control where multiple surfaces and contamination types are encountered in the same shift, including equipment, vehicles, and facility hardscape.
• Supports predictable wetting and dwell by enabling operators to tune concentration for ambient temperature, surface condition, and detergent type.
• Reduces chemical waste and rework by allowing quick correction if foam is too light, dwell is too short, or concentration is excessive for the substrate.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized MVR30021  for roughly 3.0–6.0 GPM systems where injector sizing influences suction strength, downstream mixing, and pressure drop behavior.
• Designed to minimize unnecessary restriction so the system maintains usable performance during rinse cycles and transitions cleanly between soap and high-pressure operation.
• Best performance is achieved when installed in the correct location in the discharge circuit and paired with low-pressure soap tips that enable stable Venturi suction.
• Stable draw characteristics support consistent chemical pickup in common fleet and facility layouts where hose length, reel height, and trigger cycling vary.

MVR30021 Backflow Protection and Chemical Line Control

• Integrated check valve prevents reverse flow into the chemical line, protecting detergent containers from contamination and unintended dilution.
• Helps keep suction lines from flooding during shutdown, improving responsiveness when returning to chemical mode.
• Reduces the risk of chemical container pressurization during pressure spikes, thermal expansion, or rapid on/off cycling.
• Supports cleaner operation by limiting migration of water into the suction hose when the injector is not actively drawing.

Construction and Durability

Materials Selected for Chemical Exposure

Corrosion-resistant brass body provides strength and durability for daily handling, vibration, and continuous-duty service.

• Stainless-steel internal components resist wear and corrosion in detergent and degreaser environments common to professional cleaning programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency and outlet pressure.
• Compact inline form factor integrates cleanly into skids, carts, and wall-mounted manifolds without excessive plumbing complexity.


MVR30021 Installation Details That Reduce Errors

• Inline body is intended to mount downstream of the pump/unloader where chemical injection is typically managed during low-pressure operation.
• MVR30021  Flow-direction marking supports correct orientation and reduces troubleshooting time associated with reversed installation.
• Standard threaded or quick-connect compatibility supports rapid service replacement and consistent fleet builds.
• Compact profile fits crowded manifolds and frame rails while maintaining access to the adjustment control for in-field tuning.

Operation and Maintenance

Operating Practices for Stable Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle; switching to a high-pressure tip generally stops draw by increasing backpressure.
• Best results are achieved when the detergent container is vented, positioned close to the injector, and connected with properly sized, unrestricted suction hose.
• Stable draw depends on airtight suction connections, a clean intake screen, and eliminating kinks or restrictions that reduce suction flow.
• Metering adjustments should be made gradually to maintain consistent foam and predictable dwell, especially when changing detergent types or surface conditions.

MVR30021

Routine Maintenance Guidelines

• Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect the intake screen, suction tubing, and fittings routinely for debris, softening, or air leaks that can interrupt chemical draw.
• Replace hardened or aged suction hose and strainers proactively in high-use environments to maintain repeatable performance and minimize downtime.
• Keep chemical containers free of sediment to protect internal sealing surfaces and preserve consistent suction performance.

Technical Specifications

• Model: MVR30021
• Type: Adjustable Venturi chemical injector with metering control
• Orifice: 2.1 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.0–6.0 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

Typical Industrial and Commercial Applications

• Fleet yards and heavy equipment wash bays where operators need adjustable concentration for changing soils, oils, and road film.
• Agricultural sanitation and washdown programs using 3.0–6.0 GPM systems that require repeatable chemical delivery across rotating crews.
• Industrial facility maintenance where chemical strength must be tuned for concrete, loading areas, machinery exteriors, and general wash tasks.
• Mobile wash trailers and contractor fleets that benefit from one injector adaptable to multiple detergents and job conditions.
• MVR30021  Any professional rig needing repeatable, adjustable downstream injection with reliable draw through longer hose runs and elevated reels.
