MV70H | Horizontal Flow Switch, 8122 PSI High-Pressure Monitoring

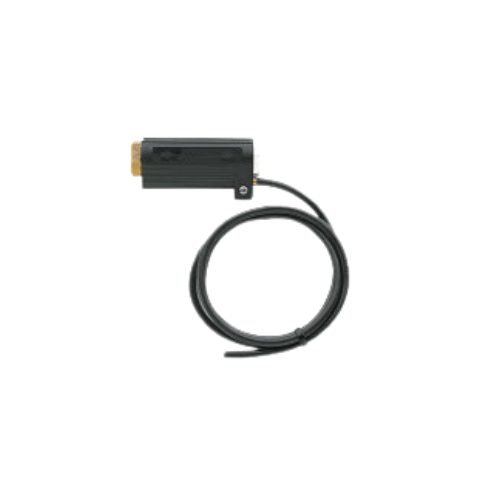

AR MV70H Horizontal Flow Switch

Product Configuration

• MV70H is a horizontal-mount, high-pressure flow switch designed for precision flow detection and automatic control signaling in industrial and commercial cleaning systems.
• Pressure rating is 8,122 PSI for demanding high-pressure environments.
• Auto control mode supports pump start/stop logic based on real-time flow conditions through a relay, interlock, or control panel input.
• Horizontal installation intent supports stable actuation in straight discharge runs where orientation control is required.
• Compact housing supports installation near pumps, manifolds, and rail assemblies without consuming excessive frame space.

Performance and Function

Flow-to-Signal Operation

• Balanced internal piston reacts to water movement in horizontal piping and converts flow changes into an electrical control signal.
• Signal output is intended for pump relays, safety interlocks, and automation/control panels.
• Control behavior enables pump operation only when flow is present and initiates shutdown when flow stops.
• Protection intent includes reducing dry run exposure, limiting overheating risk, and helping prevent damaging pressure events associated with no-flow conditions.
• Internal flow path is specified for minimal restriction to maintain system efficiency while supporting fast, repeatable actuation.

System Protection Outcomes for MV70H Horizontal Flow Switch

Typical Risks Reduced

• Helps reduce dry running and cavitation exposure when downstream flow demand is not present.
• Helps reduce heat buildup in seals and motors during no-flow events or unintended idle states.
• Helps stabilize wash-cycle behavior by reducing uncontrolled pressure changes associated with abrupt flow loss.
• Helps reduce premature wear on hoses and fittings caused by operating outside intended flow conditions.
• Helps protect against clog-related events tied to blocked nozzles, kinked hoses, collapsed lines, or closed valves.

Construction

Materials and Housing

• Body material is specified by configuration and may be high-strength brass or stainless steel.
• Precision-machined internal components support repeatable actuation and long service life under cycling.
• Sealed electrical terminals support moisture protection in wash environments.
• Heavy-duty housing supports vibration resistance in mobile rigs and industrial frames.
• Build intent supports exposure to detergents, vibration, and frequent start/stop cycling in harsh environments.

MV70H Horizontal Flow Switch Installation

Mounting and Placement

• Installs into horizontal discharge lines using standard NPT threaded ports.
• Horizontal orientation supports stable piston response and consistent switching behavior.
• Placement between the pump and unloader/manifold is supported where system architecture calls for flow-based control input.
• Straight-through routing supports clean plumbing runs and minimizes service complexity.
• Service access intent supports inspection of joints, wiring, and upstream filtration without major disassembly.

Daily Operation Advantages

Control and Efficiency

• Runs the pump only when downstream demand exists.
• Initiates shutdown when a trigger gun closes or flow stops at the sensing point.
• Improves energy efficiency by reducing unnecessary runtime and idle heat generation.
• Reduces mechanical stress by limiting operation during no-flow and abnormal restriction conditions.
• Supports more predictable maintenance intervals by reducing thermal stress and uncontrolled pressure events.

Maintenance

Service Expectations

• Inspect electrical connections for tightness and signs of corrosion per site PM standards.
• Inspect plumbing joints for leaks and re-torque fittings as needed in vibration-prone equipment.
• Maintain upstream filtration to keep debris out of the switch housing.
• Flush systems periodically in heavy-use or dirty-water environments to reduce internal buildup.
• Internal piston self-cleaning action supports responsive switching when system cleanliness is maintained.

MV70H Horizontal Flow Switch Applications

Typical Use Cases

• Industrial wash bays and fixed wash stations.
• Fleet and heavy-equipment cleaning systems.
• Water blasting and high-pressure cleaning rigs.
• Hydraulic test benches and controlled flow/pressure stations.
• Mobile and stationary high-pressure cleaning packages.
• Multi-pump or zone-controlled manifold systems requiring flow-based control input.
