MV42023 Chemical Injector 2.3 mm | 4060 PSI MV Line Chem

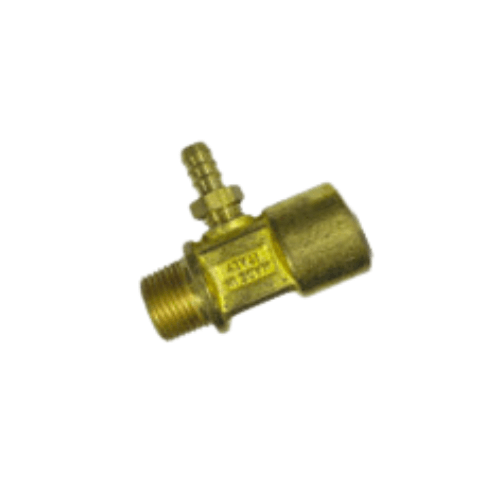

MV42023 Fixed Chemical Injector (2.3 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and standardized dilution in high-output commercial and industrial pressure washing systems.
• Configured with a 2.3 mm orifice to support stable suction performance in approximately 3.5–6.5 GPM operating ranges where strong draw and uniform ratios are required.
• Rated to 4,060 PSI for professional equipment operating under continuous-duty conditions, frequent mode changes, and demanding wash schedules.
• Designed for skid systems, wash bays, mobile trailers, and manifolded setups where adjustment-free chemical injection reduces variability and improves process control.

Chemical Injection Method

MV42023 Venturi-Based Draw for Uniform Mixing

• Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent into the water stream during chemical application.
• Fixed-orifice geometry establishes consistent draw behavior, supporting uniform detergent concentration across operators, shifts, and repeat service cycles.
• Higher flow capacity supports reliable chemical pull in high-output rigs, including longer suction lines, longer discharge hose runs, and higher detergent demand than smaller-orifice injectors.
• Predictable Venturi performance supports consistent wetting and foam behavior where repeatability matters more than adjustable metering.

Fixed-Ratio Operation for Stable Dosing

• MV42023 Fixed-ratio design eliminates metering knobs and field tuning, reducing failure points and preventing unintended setting changes during daily operation.
• Maintains a stable injection behavior through normal variations in hose length and typical operating pressure swings encountered on job sites.
• Reduces operator-dependent variability at the gun, allowing crews to focus on coverage, dwell time, and rinse quality instead of calibration.
• Stable ratios support standardized procedures, help control chemical consumption, and reduce rework on large-area cleaning tasks.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• MV42023 Optimized for roughly 3.5–6.5 GPM systems where correct injector sizing is critical to maintain reliable chemical draw without excessive pressure loss.
• Designed to minimize pressure drop so pumps maintain usable working pressure during rinse cycles and transition smoothly between soap and rinse modes.
• Best performance is achieved when matched to actual pump output, discharge hose length, nozzle selection, and the intended chemical application method.
• High-capacity sizing supports broad coverage and multi-gun or long-hose installations where stable draw characteristics reduce troubleshooting and downtime.

MV42023 Check Valve Protection and Backflow Control

• Integrated check valve prevents reverse flow into the chemical line, protecting the detergent container and suction circuit from contamination.
• Reduces the risk of chemical container pressurization during shutdown, thermal expansion events, or rapid pressure changes.
• Maintains responsiveness when switching back into chemical mode after rinsing, supporting consistent operation in production wash environments.
• Improves reliability in manifolded wash bays and multi-operator setups where pressure fluctuations and frequent tip changes are common.

Construction and Durability

Materials Selected for Chemical Exposure

• Corrosion-resistant brass body provides strength and durability for daily handling, vibration, and continuous-duty service.
• Stainless-steel internal components resist degradation from soaps, detergents, and degreasers used in professional wash programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency and outlet pressure.
• Compact form factor integrates cleanly into crowded skids, wall-mounted manifolds, and mobile rigs without compromising service access.

Design Features Supporting Long Service Life

• MV42023 Fixed geometry minimizes moving parts and sensitivity to vibration, making it well suited for trailer-mounted systems and mobile equipment.
• Robust construction supports thermal and pressure cycling typical of high-frequency wash routines and industrial washdown schedules.
• Rugged body tolerates frequent connection cycles and handling in contractor environments where fittings are routinely changed.
• Standardized component design supports simplified maintenance planning and reduced spares inventory across fleets.

Operation and Maintenance

Best Practices for Reliable Chemical Draw

• Chemical draw is typically activated using a low-pressure soap nozzle or downstream chemical mode that enables Venturi suction.
• High-pressure rinse tips stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable performance depends on correct installation orientation, airtight suction lines, and clean strainers to prevent air leaks and restriction.
• Consistent results require matching injector size to pump output and selecting soap tips that create adequate low-pressure conditions for stable draw.

Routine Maintenance Guidelines

• MV42023 Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect suction hose, strainer, and fittings routinely for pinholes, loose clamps, or cracks that can introduce air and reduce draw.
• Keep chemical containers free of sediment to protect internal sealing surfaces and maintain consistent suction performance.
• Replace worn suction components proactively in high-use environments to maintain repeatability and minimize downtime.

Technical Specifications

• Model: MV42023
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 2.3 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.5–6.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV42023 Typical Industrial and Commercial Applications

• Fleet washing and transit or trucking depots where high-output rigs require strong draw and consistent detergent delivery across long hose runs.
• Agricultural sanitation and construction equipment cleaning where stable dosing supports repeatable wash programs and controlled chemical consumption.
• Industrial facility maintenance and plant washdown where uniform mixing supports consistent results across shifts and work areas.
• Wash bays and mobile wash trailers using manifolded or multi-gun setups where stable draw characteristics reduce troubleshooting and improve uptime.
• Large-scale wash operations needing strong draw, uniform ratios, and low-maintenance chemical injection to standardize procedures and reduce rework.
