MV42021 Chemical Injector 2.1 mm | 4060 PSI MV Line Chem

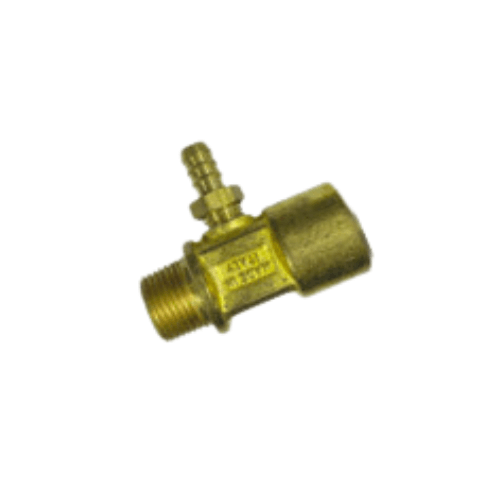

MV42021 Fixed Chemical Injector (2.1 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and standardized dilution in commercial and industrial pressure washing systems.
• Configured with a 2.1 mm orifice to support stable suction performance in approximately 3.0–6.0 GPM operating ranges where repeatable chemical strength across crews is critical.
• Rated to 4,060 PSI for professional equipment operating under continuous-duty conditions and frequent mode changes between soap and rinse.
• Designed for skid systems, mobile wash rigs, wash bays, and manifolded installations where adjustment-free injection reduces variability and improves process control.

Chemical Injection Method

Venturi-Based Draw for Controlled Mixing

• MV42021 Uses a Venturi restriction to create a controlled low-pressure zone that draws detergent from a container into the water stream during chemical application.
• Fixed-orifice geometry produces consistent draw behavior, supporting uniform detergent concentration across multiple operators, shifts, and service cycles.
• Balanced draw strength supports long suction lines and practical lift heights without unstable pull, air ingestion, or intermittent foaming.
• Predictable Venturi action supports repeatable wetting and dwell behavior, improving first-pass results on large surface areas.

Fixed-Ratio Operation for Standardized Chemical Strength

• MV42021 Fixed-ratio design eliminates metering knobs and field tuning, reducing failure points and preventing unintended changes during daily operation.
• Supports consistent dilution when paired with properly sized low-pressure soap tips and a sealed suction assembly.
• Reduces operator-dependent variability at the gun, allowing crews to focus on coverage, dwell time, and rinse quality rather than chemical calibration.
• Helps control chemical spend and rework by keeping detergent strength stable across multiple machines and operators.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized for roughly 3.0–6.0 GPM systems where correct MV42021 injector sizing is critical to maintain reliable chemical draw without excessive pressure loss.
• Designed to minimize pressure drop so pumps maintain usable working pressure during rinse cycles and transition smoothly between operating modes.
• Best performance is achieved when matched to actual pump output, discharge hose length, nozzle selection, and the intended method of chemical application.
• Stable mixture characteristics support even wetting, dependable dwell, and predictable rinsing behavior on large or repetitive cleaning tasks.

Check Valve Protection and Backflow Control

• Integrated check valve prevents reverse flow into the chemical line, protecting the detergent container and suction circuit from contamination.
• Reduces the risk of chemical container pressurization during shutdown or rapid pressure changes.
• Maintains responsiveness when switching back into chemical mode after rinsing, reducing downtime and troubleshooting.
• Improves reliability in manifolded wash bays and multi-operator environments where pressure fluctuations are common.

Construction and Durability

MV42021 Materials Selected for Chemical Exposure

• Durable brass body provides strength and corrosion resistance for daily handling, vibration, and continuous-duty use.
• Stainless-steel internal components resist degradation from soaps, detergents, and degreasers used in professional cleaning programs.
• Precision-machined internal passages reduce turbulence and support efficient hydraulic behavior, helping preserve pump efficiency.
• Compact form factor integrates cleanly into crowded skids, wall-mounted manifolds, and mobile rigs without compromising service access.

Design Features Supporting Long Service Life

• Fixed geometry minimizes moving parts and sensitivity to vibration, making it well suited for trailer-mounted systems and mobile equipment.
• Robust construction supports thermal and pressure cycling typical of industrial wash routines and frequent soap/rinse transitions.
• Service-friendly layout allows quick field replacement when operating in harsh environments or under aggressive chemical programs.
• Ideal for standardized equipment builds where consistent component specification simplifies maintenance planning and spares inventory.

Operation and Maintenance

Best Practices for Reliable Chemical Draw

• Chemical draw is typically activated using a low-pressure soap nozzle or downstream chemical mode that enables Venturi suction.
• High-pressure rinse tips stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable performance depends on correct installation orientation, airtight suction lines, and clean strainers to prevent air leaks and restriction.
• Consistent results require matching injector size to pump output and selecting soap tips that create adequate low-pressure conditions for stable draw.

Routine Maintenance Guidelines

• MV42021 Flush clean water through the injector and suction line after detergent use to prevent residue buildup and check-valve sticking.
• Inspect suction hose, strainer, and fittings routinely for cracks, loose clamps, or pinholes that can interrupt chemical draw.
• Keep chemical containers free of sediment and debris to protect internal sealing surfaces and maintain consistent suction performance.
• Replace worn suction components proactively in high-use environments to maintain repeatability and reduce downtime.

Technical Specifications

• Model: MV42021
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 2.1 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.0–6.0 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV42021 Typical Industrial and Commercial Applications

• Fleet and commercial vehicle washing where standardized detergent strength improves consistency across shifts and operators.
• Industrial sanitation and facility washdown programs requiring repeatable dilution for documented cleaning routines.
• Multi-operator or multi-machine job sites where stable chemical delivery reduces variability and controls chemical spend.
• Mobile wash rigs and contractor fleets that need reliable draw through longer hose runs and frequent mode changes.
• Wash bays and skid systems where consistent wetting and dwell improve throughput and reduce rework.
