MV42016 Chemical Injector 1.6 mm | 4060 PSI MV Line Chem

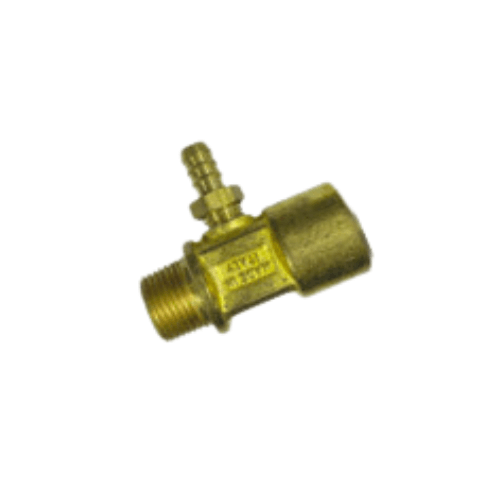

MV42016 Fixed Chemical Injector (1.6 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and repeatable dilution in professional pressure washing systems.
• Built around a 1.6 mm orifice to support steady suction performance in approximately 2.0–4.5 GPM operating ranges where predictable soap delivery and controlled dosing are required.
• Rated to 4,060 PSI for commercial-grade equipment where reliability, uptime, and stable chemical use are expected.
• Designed for skid builds, cart units, and wall-mounted manifolds that need standardized chemical injection without adjustment knobs or operator calibration.

Chemical Injection Method

Venturi-Based Draw for Controlled Mixing

• Uses a Venturi restriction to create a low-pressure zone that draws detergent from a container into the water stream when the system is operating in chemical mode.
• Fixed-orifice geometry establishes consistent draw characteristics, supporting uniform detergent dosing across multiple operators and repeat service cycles.
• Stable draw behavior supports predictable dwell times and repeatable cleaning strength for recurring wash procedures.
• Predictable Venturi performance simplifies training and standardizes results across fleets, sites, and multi-operator environments.

Fixed-Ratio Operation for No-Adjustment Consistency

• Fixed-ratio design eliminates field adjustments, reducing failure points and preventing unintended setting changes during daily operation.
• Supports consistent dilution when paired with proper low-pressure soap tips and correctly sized suction hose and strainer.
• Reduces operator variability at the gun, allowing crews to focus on coverage, dwell time, and rinse quality rather than chemical tuning.
• Helps control chemical spend by keeping dosing behavior stable in high-frequency wash programs and scheduled facility cleaning.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized for roughly 2.0–4.5 GPM systems where correct MV42016 injector sizing is critical to maintain reliable draw without excessive pressure loss.
• Designed to minimize pressure drop in normal operating conditions so pumps maintain usable working pressure at the nozzle during rinse cycles.
• Best performance is achieved when matched to actual pump output, hose length, nozzle size, and the intended operating method for chemical application.
• Balanced sizing supports reliable suction over practical hose runs while maintaining stable system behavior during mode changes.

Check Valve Function for Backflow Prevention

• Integrated check valve prevents reverse flow into the chemical line, protecting the suction circuit from contamination and unintended dilution.
• Reduces risk of chemical container pressurization and helps maintain prime and responsiveness when switching back into chemical mode.
• Limits chemical migration into upstream components when the system is shut down or pressure conditions change, supporting safer operation.
• Improves reliability in manifolded wash bays and multi-operator setups where mode changes can create temporary backflow conditions.

Construction and Durability

Material Selection for Chemical and Jobsite Exposure

• Compact brass body provides durability for repeated handling, vibration, and daily use on professional equipment.
• Stainless-steel internal components are selected for resistance to corrosion and wear in detergent and degreaser environments where lesser materials can degrade.
• Precision-machined internal passages reduce turbulence and help maintain efficient hydraulic behavior for stable draw characteristics.
• Space-saving footprint supports installation on crowded skids and wall manifolds without forcing compromised hose routing or inaccessible service positions.

Design Details That Support Long Service Life

• MV42016 Fixed geometry reduces moving parts and minimizes sensitivity to vibration and impact typical of mobile rigs and trailer-mounted systems.
• Robust construction supports thermal cycling and pressure cycling typical of professional wash routines.
• Service-friendly design supports quick replacement in the field if a system is operating in harsh environments or with aggressive chemical programs.
• Appropriate for standardized builds where consistent component specification is required across multiple machines and locations.

MV42016 Operation and Maintenance

How to Achieve Reliable Chemical Draw

• MV42016 Chemical draw is typically engaged using a low-pressure soap nozzle or downstream chemical mode that allows the Venturi to create suction.
• High-pressure tips generally stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable draw depends on proper installation orientation, a sealed suction line, and a clean strainer to prevent air leaks that interrupt suction.
• Consistent results require matching injector size to pump flow and selecting soap nozzles that create the correct low-pressure condition.

Routine Care to Protect Performance

• MV42016 Flush clean water through the injector and suction line after detergent use to prevent crystallization, residue buildup, and check-valve sticking.
• Inspect suction hose, strainer, and fittings for pinholes or loose connections that can introduce air and reduce chemical draw.
• Keep chemical containers clean and avoid drawing sediment into the injector to protect internal sealing surfaces and maintain stable suction.
• Replace worn strainers and suction tubing proactively in high-use environments to maintain repeatable performance.

Technical Specifications

• Model: MV42016
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 1.6 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 2.0–4.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV42016 Typical Industrial and Commercial Applications

• Vehicle exterior cleaning and light equipment washdown where repeatable dosing supports consistent results without operator tuning.
• Agricultural implements and facility maintenance where controlled detergent application supports scheduled wash routines and chemical cost control.
• Mobile wash rigs needing stable, repeatable detergent ratios across different operators and job sites.
• Wall-mounted wash stations and compact skids where a low-maintenance injector standardizes chemical delivery.
• Recurring wash tasks where predictable dwell time and uniform mixing improve throughput and reduce rework.
