MV41023 Chemical Injector 2.3 mm | 4060 PSI

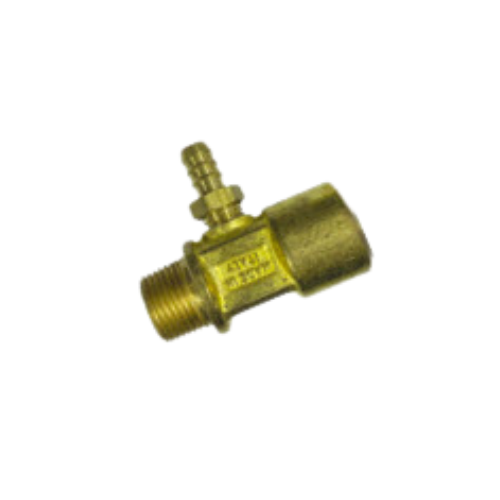

MV41023 Fixed Chemical Injector (2.3 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and repeatable dilution in high-output professional and industrial pressure washing systems.
• Built around a 2.3 mm orifice to support steady suction performance in approximately 3.5–6.5 GPM operating ranges where strong draw, uniform mixing, and predictable chemical delivery are required.
• Rated to 4,060 PSI for commercial-grade equipment where uptime, durability, and controlled chemical use are expected.
• Designed for skid builds, mobile wash trailers, wash bays, and manifolded installations that require stable chemical injection without adjustment knobs or operator calibration.

Chemical Injection Method

MV41023 Venturi-Based Draw for Controlled Mixing

• Uses a Venturi restriction to create a low-pressure zone that draws detergent from a container into the water stream when the system is operating in chemical mode.
• Fixed-orifice geometry establishes consistent draw characteristics to support uniform detergent dosing across multiple operators, shifts, and service cycles.
• Higher flow capacity supports reliable chemical pull in high-output rigs, including longer suction lines, longer discharge hose runs, and higher detergent demand compared with smaller-orifice injectors.
• Predictable Venturi performance standardizes results across fleets and facilities where repeatable process outcomes matter more than adjustable settings.

MV41023 Fixed-Ratio Operation for Stable Dosing

• Fixed-ratio design eliminates field adjustments, reducing failure points and preventing unintended setting changes during daily operation.
• Supports consistent dilution when paired with proper low-pressure soap tips and correctly sized suction hose and strainer.
• Stable ratios reduce chemical waste by limiting over-application and improving first-pass cleaning effectiveness in high-volume environments.
• Consistent dosing simplifies training and quality control across multi-operator crews, wash lanes, and distributed job sites.

MV41023 System Integration and Performance

Flow Range Compatibility and Pressure Management

• Optimized for roughly 3.5–6.5 GPM systems where correct injector sizing is critical to maintain reliable draw without excessive pressure loss.
• Designed to minimize pressure drop in normal operating conditions so pumps maintain usable working pressure at the nozzle during rinse cycles.
• Best performance is achieved when matched to actual pump output, hose length, nozzle size, and the intended operating method for chemical application.
• Stable transitions between chemical application and high-pressure rinsing help prevent inconsistent draw and improve operator efficiency on large-area jobs.

Check Valve Function for Backflow Prevention

• Integrated check valve prevents reverse flow into the chemical line, protecting the suction circuit from contamination and unintended dilution.
• Reduces risk of chemical container pressurization and helps maintain responsiveness when switching back into chemical mode.
• Limits chemical migration into upstream components when the system is shut down or pressure conditions change, supporting safer operation and cleaner plumbing.
• Improves reliability in manifolded wash bays and multi-operator setups where mode changes can create temporary backflow conditions.

Construction and Durability

Material Selection for Chemical and Jobsite Exposure

• Rugged brass body provides durability for repeated handling, vibration, and continuous-duty operation on commercial and industrial equipment.
• Stainless-steel internal components are selected for resistance to corrosion and wear in detergent and degreaser environments where lesser materials can degrade.
• Precision-machined internal passages reduce turbulence and help maintain efficient hydraulic behavior for stable draw characteristics under high flow demand.
• Compact footprint supports installation on tight skids, inside cabinets, and on crowded manifolds without forcing compromised hose routing or inaccessible service positions.

Design Details That Support Long Service Life

• MV41023 Fixed geometry reduces moving parts and minimizes sensitivity to vibration and impact typical of mobile rigs and trailer-mounted systems.
• Robust construction supports thermal cycling and pressure cycling typical of high-frequency wash routines and industrial washdown schedules.
• Service-friendly design supports quick replacement in the field if a system operates in harsh environments or with aggressive chemical programs.
• Appropriate for standardized builds where consistent component specification is required across multiple machines, bays, and service routes.

Operation and Maintenance

How to Achieve Reliable MV41023 Chemical Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle or downstream chemical mode that allows the Venturi to create suction.
• High-pressure tips generally stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable draw depends on proper installation orientation, a sealed suction line, and a clean strainer to prevent air leaks that interrupt suction.
• Consistent results require matching injector size to pump flow and selecting soap nozzles that create the correct low-pressure condition for stable chemical pull.

Routine Care to Protect Performance

• Flush clean water through the injector and suction line after detergent use to prevent crystallization, residue buildup, and check-valve sticking.
• Inspect suction hose, strainer, and fittings for pinholes or loose connections that can introduce air and reduce chemical draw.
• Keep chemical containers clean and avoid drawing sediment into the injector to protect internal sealing surfaces and maintain stable suction.
• Replace worn strainers and suction tubing proactively in high-use environments to maintain repeatable performance and minimize downtime.

Technical Specifications MV41023

• Model: MV41023
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 2.3 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.5–6.5 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV41023 Typical Industrial and Commercial Applications

• Fleet washing and heavy equipment cleaning where high-output rigs require strong draw and consistent detergent delivery across long hose runs.
• Agricultural sanitation and washdown where stable dosing supports repeatable cleaning programs and controlled chemical consumption.
• Industrial surface cleaning and plant washdown operations where uniform mixing supports consistent results across shifts and work areas.
• Large commercial wash bays and mobile wash trailers where broad coverage and predictable foam help improve throughput and rinse quality.
• High-volume systems requiring standardized detergent injection to reduce operator variability, limit waste, and maintain process consistency.
