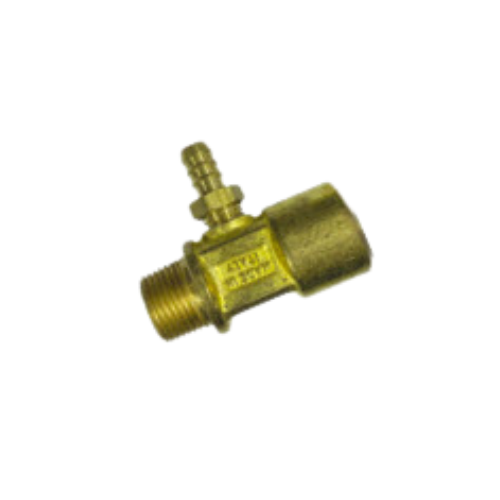

MV41021 Fixed Chemical Injector (2.1 mm, 4,060 PSI)

• Fixed-ratio Venturi chemical injector engineered for consistent detergent draw and repeatable dilution in professional and industrial pressure washing systems.
• Built around a 2.1 mm orifice to support steady suction performance in approximately 3.0–6.0 GPM operating ranges where stronger draw and uniform mixing are required.
• Rated to 4,060 PSI for commercial-grade equipment where reliability, uptime, and controlled chemical use are expected.
• Designed for skid builds, mobile wash rigs, wash bays, and manifolded systems that require stable chemical injection without adjustment knobs, calibration steps, or operator-dependent settings.

MV41021 Chemical Injection Method

Venturi-Based Draw for Controlled Mixing

• Uses a Venturi restriction to create a low-pressure zone that draws detergent from a container into the water stream when the system is operating in chemical mode.
• Fixed-orifice geometry establishes consistent draw characteristics to support uniform detergent dosing across multiple operators and repeat service cycles.
• Stronger draw capability helps maintain chemical pull in setups with longer suction lines, moderate lift, or higher detergent demand compared with smaller-orifice injectors.
• Predictable Venturi performance standardizes results across fleets, wash bays, and multi-operator environments where repeatability matters.

MV41021 Fixed-Ratio Operation for Shift-to-Shift Consistency

• Fixed-ratio design eliminates field adjustments, reducing failure points and preventing unintended setting changes during daily operation.
• Supports consistent dilution when paired with proper low-pressure soap tips and correctly sized suction hose and strainer.
• Reduces operator variability at the gun, allowing crews to focus on coverage, dwell time, and rinse quality rather than chemical tuning.
• Helps control chemical spend by keeping dosing behavior stable in high-frequency wash programs and scheduled sanitation routines.

System Integration and Performance

Flow Range Compatibility and Pressure Management

• MV41021 Optimized for roughly 3.0–6.0 GPM systems where correct injector sizing is critical to maintain reliable draw without excessive pressure loss.
• Designed to minimize pressure drop in normal operating conditions so pumps maintain usable working pressure at the nozzle during rinse cycles.
• Best performance is achieved when matched to actual pump output, hose length, nozzle size, and the intended operating method for chemical application.
• Stable transitions between chemical application and high-pressure rinsing help prevent inconsistent draw and improve overall operator efficiency.

Check Valve Function for Backflow Prevention

• Integrated check valve prevents reverse flow into the chemical line, protecting the suction circuit from contamination and unintended dilution.
• Reduces risk of chemical container pressurization and helps maintain responsiveness when switching back into chemical mode.
• Limits chemical migration into upstream components when the system is shut down or pressure conditions change, supporting safer operation.
• Improves reliability in multi-gun manifolds and long-hose installations where mode changes can create temporary backflow conditions.

Construction and Durability

Material Selection for Chemical and Jobsite Exposure

• Corrosion-resistant brass body provides durability for repeated handling, vibration, and continuous-duty operation on commercial and industrial equipment.
• Stainless-steel internal components are selected for resistance to corrosion and wear in detergent and degreaser environments where lesser materials can degrade.
• Precision-machined internal passages reduce turbulence and help maintain efficient hydraulic behavior for stable draw characteristics.
• Compact footprint supports installation on tight skids and inside cabinets without forcing compromised hose routing or inaccessible service positions.

Design Details That Support Long Service Life

• Fixed geometry reduces moving parts and minimizes sensitivity to vibration and impact typical of mobile rigs and trailer-mounted systems.
• Robust construction supports thermal cycling and pressure cycling typical of high-frequency wash and sanitation routines.
• Service-friendly design supports quick replacement in the field if a system operates in harsh environments or with aggressive chemical programs.
• Appropriate for standardized builds where consistent component specification is required across multiple machines, bays, and service routes.

Operation and Maintenance

How to Achieve Reliable Chemical Draw

• Chemical draw is typically engaged using a low-pressure soap nozzle or downstream MV41021 chemical mode that allows the Venturi to create suction.
• High-pressure tips generally stop chemical draw by increasing backpressure, returning the system to rinse-only operation.
• Reliable draw depends on proper installation orientation, a sealed suction line, and a clean strainer to prevent air leaks that interrupt suction.
• Consistent results require matching injector size to pump flow and selecting soap nozzles that create the correct low-pressure condition.

Routine Care to Protect Performance

• MV41021 Flush clean water through the injector and suction line after detergent use to prevent crystallization, residue buildup, and check-valve sticking.
• Inspect suction hose, strainer, and fittings for pinholes or loose connections that can introduce air and reduce chemical draw.
• Keep chemical containers clean and avoid drawing sediment into the injector to protect internal sealing surfaces and maintain stable suction.
• Replace worn strainers and suction tubing proactively in high-use environments to maintain repeatable performance.

Technical Specifications

• Model: MV41021
• Type: Fixed-ratio Venturi chemical injector
• Orifice: 2.1 mm
• Maximum Pressure: 4,060 PSI
• Recommended System Range: Approximately 3.0–6.0 GPM (application dependent)
• Body Material: Brass
• Internal Components: Stainless steel
• Protection: Integrated check valve for backflow prevention

MV41021 Typical Industrial and Commercial Applications

• Fleet and transit washing operations where stable dosing supports standardized cleaning procedures across shifts.
• Industrial equipment cleaning and plant sanitation where repeatable dilution supports process consistency and controlled chemical spend.
• Agricultural washdown programs where strong draw supports detergents used on equipment, barns, and high-load areas.
• Food-processing and production support wash stations where consistent dilution helps maintain documented cleaning routines.
• Multi-gun or long-hose installations where stable draw characteristics reduce troubleshooting and improve uptime.
