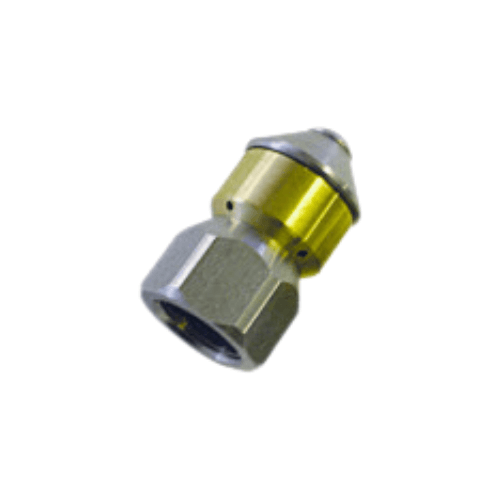

MLRSN14045 — Rotating Sewer Nozzle, 1/4″ Connection, #4.5 Orifice

• The AR MLRSN14045 is a compact, self-rotating sewer nozzle engineered for professional jetting crews
  who need reliable wall-to-wall cleaning in small to mid-size lines.
• Equipped with a 1/4″ female threaded connection and a precision #4.5 orifice, it is
  tuned for high-pressure jetters running smaller hose sizes in residential, light commercial, and industrial work.
• A water-driven internal rotor converts pressure into smooth 360° rotation, delivering continuous pipe-wall scrubbing
  while maintaining steady forward thrust.
• The balanced hydraulic design allows the nozzle to navigate bends, offsets, and fittings with minimal vibration and
  reduced risk of stalling or snagging.
• Built from stainless steel for long service life in wastewater, grease, and abrasive sediment, this nozzle supports
  contractors and municipalities that expect daily-duty reliability.

Key Performance & Design Highlights

• Rotating jet pattern provides full 360° coverage, scrubbing the entire inner circumference of the pipe
  instead of cutting a narrow track.
• #4.5 orifice sizing balances cleaning impact, water consumption, and hose thrust for typical
  small-hose jetter flows.
• Back-thrust jet configuration supplies forward propulsion while keeping the nozzle centered and stable
  in the line.
• Designed to break apart grease, soap residue, sludge, and light scale, carrying loosened material
  downstream for recovery.
• Compact, low-profile body allows the nozzle to pass through tight cleanouts and small access points.

Key Specifications

• Model: AR MLRSN14045 rotating sewer nozzle
• Connection: 1/4″ female threaded inlet
• Orifice Size: #4.5 (sized for common small-hose jetter flows)
• Cleaning Pattern: 360° rotational jet coverage
• Typical Pipe Range: approximately 2″–6″ internal diameter (flow-dependent)
• Body Material: stainless steel or equivalent corrosion-resistant alloy
• Use Case Focus: lateral sewers, branch lines, floor drains, building laterals

How the MLRSN14045 Rotating Jet System Works

• Pressurized water from the jetter enters the nozzle body and is routed through internal passages to the jet orifices.
• Offset jet angles create a hydraulic reaction force that spins the internal rotor, driving continuous,
  controlled rotation.
• As the head rotates, multiple jets sweep the full pipe circumference, knocking loose deposits that static nozzles
  often leave behind.
• Rear-facing jets generate back-thrust, pulling the nozzle forward through the pipe while simultaneously
  flushing debris toward the downstream recovery point or manhole.
• The combination of rotation and thrust offers a hybrid cutting and flushing action tailored to routine
  maintenance and problem-line cleaning.

Build & Materials MLRSN14045 (Made for Sewer Service)

• Stainless steel body resists corrosion from wastewater, detergents, and light chemicals commonly found
  in sewer and drain environments.
• Precision-machined internal rotor and bearing surfaces are designed for smooth rotation and long-term reliability.
• Reinforced 1/4″ inlet supports repeated hose connections and disconnections without thread damage.
• Compact, rounded profile improves maneuverability through elbows, tees, and diameter transitions.
• Jet orifices are drilled for consistent flow, maintaining stable cleaning performance over the life of the tool.

Benefits & Differentiators

• Complete wall coverage: true rotational cleaning minimizes streaking and missed areas compared to
  fixed-jet or fan-spray tips.
• Balanced thrust: engineered to deliver forward motion without excessive recoil, reducing operator
  fatigue and hose whip.
• Improved productivity: can clean lines faster and more thoroughly than basic nozzles, especially
  where grease and soft buildup are common.
• Lower risk of reoccurring blockages: more uniform wall cleaning helps reduce early re-accumulation of
  deposits.
• Professional-grade durability: stainless construction and sealed internals hold up in daily-use
  contractor and municipal fleets.

Industries & Applications

• Municipal sewer maintenance: neighborhood laterals, small branch lines, service connections.
• Commercial facilities: restaurants, food courts, grocery, and institutional kitchens.
• Industrial plants: process drains with soaps, oils, and light solids.
• Property management: apartment complexes, condominium buildings, and retail centers.
• Drain-cleaning contractors: service trucks and trailer-mounted jetters focused on small to mid-size lines.

Compatibility & Operating Guidelines

• Designed for use on 1/4″ jetting hose assemblies matched to the #4.5 orifice and system GPM.
• Best suited to high-pressure jetter systems capable of delivering stable flow and pressure to small-bore nozzles.
• Recommended for lines in the 2″–6″ range, depending on hose size, flow rate, and debris load.
• Should be paired with appropriate filtration and pump protection to prevent hard particles from damaging the rotor.
• Always confirm hose, pump, and nozzle ratings are aligned before operating at maximum system pressure.

Setup, Use & Maintenance

• Attach the nozzle securely to a 1/4″ jetting hose using proper thread sealant compatible with high-pressure water.
• Start at reduced pressure to verify rotation and flow, then ramp up gradually to full working PSI.
• Use controlled feed and retrieval practices to ensure complete line coverage and prevent abrupt shock loads on the hose.
• After each job, flush the nozzle with clean water to purge grit and prevent jet orifice blockage.
• Periodically inspect jets and the rotating head; if cleaning performance drops, check for partially blocked or worn
  orifices and restore as needed.
• Store dry in a dedicated compartment or case to protect threads and jet openings from impact and contamination.

What’s Included

• MLRSN14045 rotating sewer nozzle with 1/4″ female inlet and #4.5 orifice.
• Basic installation and safe-use guidance from AR/WSHPWR.com documentation or distributor resources.

Notes & Best Practices

• MLRSN14045 Always match nozzle orifice sizing to pump GPM to maintain correct pressure, thrust, and cleaning
  performance.
• For heavy root intrusion or hardened scale, pair this rotating nozzle with mechanical cutters or specialty heads as
  part of a complete tooling kit.
• Incorporating regular preventive jetting with a rotating nozzle like the MLRSN14045 can significantly reduce emergency
  calls, overflows, and unscheduled downtime in critical lines.
