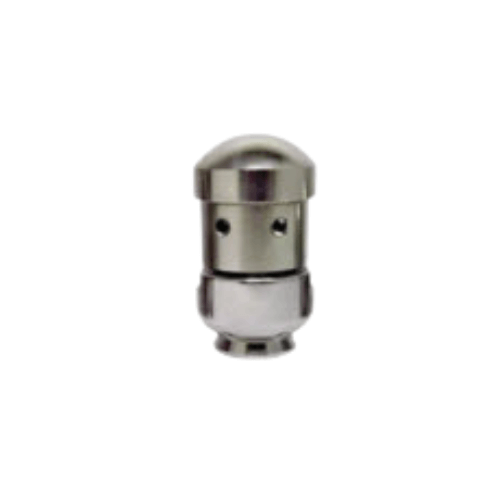

ML4052800004 | Chain Cutter Nozzle, 1″ F 100° 5000 PSI

ML4052800004 SNCH G 1″ F 100 Sewer Nozzle (5,000 PSI)

• Large-format sewer and drain cleaning nozzle engineered for heavy-duty jetting rigs where high flow, high pressure, and mechanical disruption are required to restore full pipe capacity.
• Configured with a 1″ female inlet for secure connection to heavy-duty hoses and leader assemblies used in municipal, industrial, and contractor-grade sewer maintenance.
• Rated up to 5,000 PSI for aggressive cleaning in lines impacted by root intrusion, hardened grease, compacted sludge, mineral scale, and long-interval accumulation.
• Designed around dual-action performance that combines a water-driven rotating chain cutter with a 100° spray geometry to break deposits free and flush the full interior wall.

Dual-Action Cleaning Strategy

Water-Driven Rotating Chain Cutter Function

• Rotating chain assembly uses system water flow to generate mechanical contact that breaks up tough obstructions beyond what jet impact alone can reliably remove.
• Mechanical disruption improves performance on root intrusion, hardened grease plugs, and dense mineral buildup that can form restrictive shoulders and choke points.
• Chain action helps open a path through the blockage while the surrounding spray transports loosened material downstream, reducing re-plugging behind the nozzle.
• Mechanical capability reduces tool changes in the field by combining breakup and transport in one operating cycle.

ML4052800004 100-Degree Spray Geometry for Full Wall Coverage

• 100° spray pattern delivers broad circumferential wall contact to scrub the pipe interior and flush debris after the chain cutter disrupts deposits.
• Wide-angle coverage helps reduce streaking and untreated bands, supporting a more uniform clean in larger-diameter lines where partial cleaning is not acceptable.
• Uniform wall coverage improves downstream inspection quality and supports rehabilitation preparation where consistent surfaces are required.
• Balanced coverage helps technicians maintain productivity by limiting the number of corrective passes needed to achieve a complete clean.

Performance Characteristics Under Load

5,000 PSI Rating for Demanding Rigs and Conditions

• 5,000 PSI capability supports high-demand applications where deposits are compacted, hardened, or bonded to the pipe wall and require maximum energy to remove.
• High-pressure operation improves effectiveness on thick scale and hardened grease accumulation, particularly in mains and long runs with recurring restrictions.
• Designed for stable behavior under jobsite pressure variation, improving operator control at the reel during long pulls and complex layouts.
• Higher effectiveness per pass reduces time in the line and limits wear from repeated cycles on pumps, hoses, and fittings.

Large-Diameter Efficiency and Debris Transport

• ML4052800004 Large-format design supports use in larger-diameter systems where higher volume and broad coverage improve cleaning uniformity and debris carry-out.
• Dual-action breakup and flushing helps move loosened solids downstream, reducing the chance of debris settling and re-forming restrictions behind the nozzle.
• Controlled advancement supports deliberate cleaning cycles, allowing crews to manage deposit zones and transitions methodically.
• Improved debris transport can reduce follow-up work by minimizing the amount of residual material left in the line after a cleaning run.

Construction and Service Durability

Stainless-Steel Body for Corrosion and Abrasion Resistance

• Stainless-steel construction is selected for wet, abrasive, and debris-laden environments common in municipal sewer and industrial drain maintenance.
• Corrosion resistance supports long service life in wastewater exposure, including detergents, oils, and varying pH conditions typical of mixed effluent.
• Durable housing tolerates abrasion from sand, grit, and scale fragments circulated during aggressive jetting and mechanical breakup.
• Rigid structure supports consistent alignment and stable operation under repeated high-pressure duty cycles.

Wear Components and Field Serviceability

• Replaceable chains and wear components allow crews to restore mechanical performance without replacing the full nozzle body.
• Serviceable design supports cost control for high-utilization fleets by reducing downtime and extending overall tool life.
• Routine inspection of chain wear and contact points helps maintain predictable cutting action and reduces the risk of performance loss mid-job.
• Built for frequent coupling changes, transport, and daily handling typical of municipal and contractor operations.

Installation, Operation, and Care

Connection and System Setup

• 1″ female inlet threads onto compatible leaders and hose assemblies; use an appropriate sealing method to prevent leaks that reduce usable jet energy.
• Match nozzle selection to pump output, hose length, and pipe diameter to maintain effective chain action and full wall coverage without excessive hose reaction.
• Confirm upstream filtration and water quality where practical to reduce debris impact on internal flow paths and wear components.
• Use controlled feed rates so the chain cutter and 100° spray can fully work the deposit zone before advancing further into the run.

Maintenance Practices for Consistent Output

• ML4052800004 Flush and rinse after use to remove grit and residue that can accelerate wear and reduce spray consistency.
• Inspect chains for wear, elongation, or damage and replace as needed to maintain predictable mechanical engagement.
• Check spray outlets for restrictions; balanced flow is essential to stable behavior and uniform circumferential coverage.
• Store clean and dry to protect threads, minimize corrosion risk, and prevent contamination between service calls.

Technical Specifications ML4052800004

• Model: ML4052800004
• Series / Configuration: SNCH G 1″ F 100
• Maximum Pressure: 5,000 PSI
• Spray Pattern: 100° wide-angle wall coverage
• Inlet Connection: 1″ female thread
• Construction: Stainless-steel body with water-driven rotating chain cutter

Typical Industrial and Municipal Applications

• Municipal sewer mains and large laterals where full-circumference cleaning is required to restore capacity and reduce recurring restrictions.
• Industrial process drains and plant utility lines where scale, residue, and sludge accumulation can create downtime and safety concerns.
• Root intrusion removal in larger-diameter lines where mechanical disruption improves reliability compared with jetting-only approaches.
• Food-service and high-load wastewater systems where hardened grease and solids require both breakup and high-volume flushing.
• Pre-inspection and rehabilitation preparation where consistent wall cleaning supports CCTV inspection and lining or repair processes.
