LS125-80 | 1-1/4 in Brass Inline Strainer, 80 Mesh

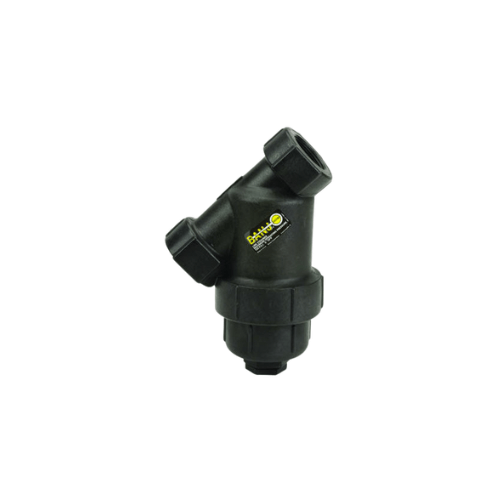

LS125-80 Y Strainer Polypropylene Body

The AR LS125-80 is a 1-1/4-inch Y strainer featuring an 80-mesh 316 stainless steel screen, engineered by Annovi Reverberi to deliver dependable fluid filtration and superior protection for pumps, valves, and downstream equipment. Built with a corrosion-resistant polypropylene housing and EPDM seals, it prevents debris and particulate contamination to extend equipment life and maintain consistent performance in industrial and commercial systems.

Key Features

• 1-1/4-inch Y strainer with FNPT x FNPT connections
• 80-mesh 316 stainless steel screen (177-micron rating)
• Durable polypropylene housing for corrosion resistance
• EPDM gasket and seal material for reliable sealing
• Integrated 1/2-inch blow-off port for easy flushing
• Reusable, easy-to-clean stainless steel mesh screen

Performance Benefits

• Protects pumps, valves, and fluid components from debris and sediment
• Reduces risk of clogs, cavitation, and erosion
• Maintains consistent pressure and flow stability
• Minimizes system downtime and maintenance costs
• Ensures long-term filtration accuracy even after repeated cleanings
• Rated to 150 psi (up to 168 psi at 100°F) for stable operation

Material & Construction Advantages

• Polypropylene Body: corrosion-resistant, lightweight, and chemically stable
• 316 Stainless Steel Mesh: maintains structural rigidity during cleaning and fluid pressure shifts
• EPDM Seals & Gasket: resist water, detergents, and many industrial cleaning agents
• Y-body design directs debris into the screen pocket for efficient capture
• Smooth internal passages for unobstructed fluid flow

Filtration & Flow Characteristics

• 80-mesh (177-micron) fine filtration protects precision components
• Low pressure drop for efficient pump performance
• Captures fine particulate without restricting system flow
• Optimized for medium- to high-volume fluid systems

Specifications

• Pipe Size: 1-1/4 in
• Connection Type: FNPT x FNPT (NPT, female)
• Mesh / Micron Rating: 80 mesh / 177 micron
• Screen Material: 316 stainless steel
• Housing Material: Polypropylene
• Gasket & Seal Material: EPDM
• Max. Pressure: 150 psi (168 psi at 100°F)
• Max. Fluid Temp.: 150°F
• Blow-Off Port: 1/2 in (Port 3)
• Dimensions: 7-7/8 in L × 7-1/2 in H × 5-5/8 in W

Applications

• Pressure washers
• Pump suction and discharge lines
• Agricultural sprayers
• Irrigation systems
• Industrial cleaning equipment
• General industrial fluid handling systems

Installation & Maintenance

• Y-body design installs easily on suction or discharge lines
• Threaded FNPT connections ensure a tight,
