LJ22535M Lovejoy L225 Jaw Coupling 35 mm Bore | Steel Hub

LJ22535M

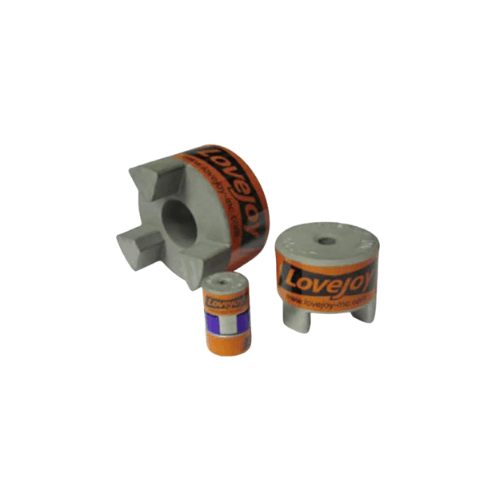

L225 jaw coupling hub, 35 mm bore

• The AR LJ22535M is a Lovejoy L225 jaw coupling hub with a
  35 mm bore and 10 x 3.3 mm keyway, engineered by Annovi Reverberi to deliver
  accurate, vibration-free torque transmission and long-term mechanical reliability in demanding industrial
  environments.
• Designed for strength and precision, this steel coupling hub provides secure shaft alignment and smooth power
  transfer for pumps, motors, and industrial drive systems operating under high torque conditions.
• As part of the L225 series, it connects with a matching hub and elastomer spider insert
  (sold separately) to form a flexible, vibration-damping assembly that transmits torque efficiently while
  protecting connected components from shock and misalignment.

LJ22535M Design & Construction

Precision-machined steel hub

• 35 mm precision-machined bore provides a tight, accurate fit on standard metric shafts for secure,
  concentric torque transfer.
• 10 x 3.3 mm keyway delivers positive mechanical engagement that prevents slippage and maintains
  torque integrity under load.
• Heavy-duty steel construction offers exceptional strength, dimensional stability, and fatigue
  resistance for continuous-duty operation.
• Three-jaw Lovejoy L225 geometry engages the elastomer spider evenly across all faces, eliminating
  metal-to-metal contact and reducing wear.
• Corrosion-resistant surface finish protects against moisture, cleaning chemicals, and environmental wear in both
  indoor and outdoor installations.

Performance & Vibration Control

Flexible coupling dynamics

• When paired with the correct elastomer spider, the LJ22535M forms a flexible, vibration-damping
  coupling that cushions torque spikes and shock loads.
• The elastomer insert compensates for minor angular, parallel, and axial misalignments, helping
  protect bearings, seals, and shafts from stress and extending equipment life.
• Flexible spider material dampens torsional oscillations and prevents resonance in rotating
  assemblies, lowering system noise and improving performance.
• Balanced hub geometry minimizes vibration, delivering quiet and efficient operation over a wide
  range of speeds and torque loads.
• L225 series design is known for high torque capacity, making this hub suitable for heavy
  industrial as well as light commercial applications.

Installation & Maintenance

Modular, lubrication-free system

• Simple installation: slide the hub onto the keyed 35 mm shaft, align the key, secure with the set
  screw, and place the elastomer spider between the two hubs before tightening the assembly.
• Lubrication-free operation keeps the drive clean and minimizes contamination risk in hydraulic and
  fluid-handling systems.
• Modular coupling design allows quick replacement of the elastomer insert without removing the hubs
  or disturbing shaft alignment, reducing downtime and simplifying maintenance.
• Fail-safe Lovejoy configuration ensures that even if the elastomer degrades, the metal jaws remain partially
  engaged to maintain limited torque transmission until servicing can be carried out.
• Routine maintenance is limited to periodic inspection of the spider for wear, cracking, or hardening, with
  replacement restoring full vibration-damping performance.

LJ22535M Applications

Industrial and commercial power transmission

• Ideal for pressure washer pumps and industrial cleaning systems requiring smooth, stable torque
  delivery.
• Commonly used in compressors, hydraulic power units, and manufacturing machinery that operate under
  continuous-duty or frequent start–stop cycles.
• Suitable for industrial drive systems where accurate alignment, low vibration, and high torque
  capacity are required.
• Performs reliably in environments with fluctuating loads, maintaining alignment and preventing
  fatigue in connected components.
• Compact, balanced design allows installation in tight equipment bays without compromising torque
  capacity or stability.

Key Features & Benefits

LJ22535M Spec summary and selection points

• Model: AR LJ22535M – Lovejoy L225 jaw coupling hub.
• Bore Size: 35 mm precision-machined bore.
• Keyway: 10 x 3.3 mm keyway for positive shaft engagement.
• Series: L225 heavy-duty jaw coupling platform.
• Material: High-strength steel with corrosion-resistant finish.
• Coupling Type: Three-jaw hub used with L225 elastomer spider (sold separately).
• Benefits: High torque capacity, vibration damping, misalignment compensation, quiet operation,
  and extended life for pumps, motors, bearings, and seals.
• Keywords: LJ22535M, Lovejoy L225 hub, 35 mm bore coupling, jaw coupling, 10 x 3.3 keyway,
  elastomer spider coupling, industrial pump drive, vibration-damping shaft coupling.
