LJ100SOX Lovejoy Jaw Coupling Insert | Elastomer

LJ100SOX Lovejoy Jaw Coupling Insert | L100 Series Elastomer Spider

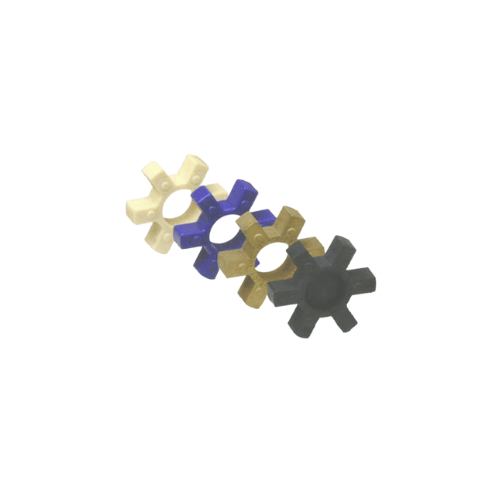

• AR LJ100SOX is an elastomer “spider” insert for Lovejoy L100 jaw couplings engineered by Annovi Reverberi.
• Serves as the flexible link between two coupling hubs, transmitting torque while absorbing shock, vibration, and misalignment.
• Designed for industrial pump and motor systems where smooth, quiet, and reliable power transmission is critical.

Design & Material

• Constructed from a high-performance elastomer compound for excellent flexibility and wear resistance.
• Precision-molded to fit the three-jaw geometry of standard L100-series hubs with accurate alignment.
• Curved tooth profile distributes load uniformly across the jaws, avoiding stress concentrations and uneven wear.
• Non-conductive and corrosion-resistant, suitable for environments exposed to water, cleaning agents, and other corrosive substances.

Performance & Protection

• Absorbs torsional vibration and torque spikes, protecting pumps, motors, bearings, and seals from mechanical stress.
• Compensates for minor angular, parallel, and axial misalignments that naturally occur in rotating machinery.
• Reduces mechanical noise and backlash for smoother, quieter operation and improved system efficiency.
• Resists fatigue, compression set, and deformation for consistent torque transmission over thousands of operating hours.

Installation & Maintenance

• Installs easily: place the spider between the jaws of two aligned L100 hubs and secure the assembly—no special tools required.
• Lubrication-free design keeps the coupling clean and avoids contamination in sensitive systems.
• Modular construction lets technicians replace worn inserts without removing hubs or realigning shafts, minimizing downtime.
• Fail-safe jaw design maintains partial engagement even if the insert deteriorates, allowing temporary operation until replacement.
• Routine maintenance is limited to periodic visual inspection and quick replacement when wear, cracking, or hardening appears.

Typical Applications

• Pressure washer pumps and industrial cleaning systems.
• Hydraulic drives and power packs in mobile or stationary equipment.
• Manufacturing machinery, conveyors, and general industrial drive systems.
• Pump and motor sets in plant utilities, washdown, and process equipment.

Why Choose the AR LJ100SOX?
LJ100SOX Lovejoy Jaw Coupling Insert | L100 Series Elastomer Spider

• Engineered by Annovi Reverberi to tight dimensional standards for perfect compatibility with all L100-series hubs.
• Provides a cost-effective, maintenance-light solution for protecting drive components and extending system life.
• Delivers reliable, quiet, and stable torque transmission across a wide range of load and speed conditions.
• Ideal for technicians and engineers who need proven vibration damping, misalignment compensation, and long service life in a compact insert.
