AR51974 | PA B31-30 Gear Box, 1-1/8 in Shaft

AR51974

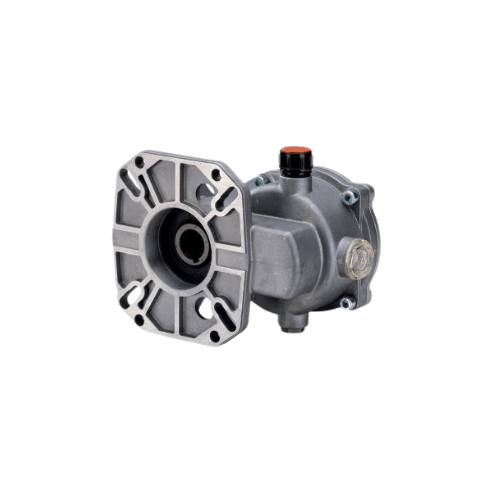

The AR AR51974 PA B31-30 Gearbox – 1-1/8 in Shaft | Drive Unit is a
high-performance reduction gearbox engineered by Annovi Reverberi for efficient power
transmission and stable torque delivery in pressure washer and industrial pump systems.
Its 3.0:1 reduction converts high engine RPM into pump-friendly speed, delivering smooth,
consistent drive power for continuous-duty commercial and industrial cleaning applications.

Gearbox Design & Construction

• Cast aluminum alloy housing provides excellent strength with low weight to reduce overall system load.
• Corrosion-resistant exterior stands up to water, heat, vibration, and harsh outdoor or industrial environments.
• Precision-machined mounting surfaces keep engine and pump perfectly aligned, reducing wear on shafts and couplings.
• Integrated cooling fins help dissipate heat during long run times, extending lubricant and component life.
• Sealed housing keeps lubricant in and dust/moisture out for long-term reliability with minimal service.

Power Transmission & Internal Components

• 3.0:1 reduction ratio optimizes engine speed for AR high-pressure pumps, improving pressure, flow, and efficiency.
• 1-1/8 in keyed output shaft couples securely to compatible pumps with minimal backlash.
• High-quality steel gears are cut to tight tolerances for quiet operation, reduced friction, and long service life.
• Sealed bearings and internal lubrication reduce maintenance while protecting moving parts from contamination.
• Consistent torque output helps prevent cavitation, protects seals and plungers, and maintains steady working pressure.

Installation & Compatibility

• Engine mounting: bolts directly to standard small-engine flanges (Honda, Kohler, and similar gasoline or diesel engines).
• Pump connection: 1-1/8 in keyed shaft connects to AR pumps via flexible coupling or direct-drive flange.
• Plug-and-play design simplifies alignment and setup, reducing installation time and the risk of premature wear.
• Lightweight construction makes handling and mounting easier on mobile trailers, skids, and compact frames.

Reliability, Maintenance & Testing

• Sealed lubrication system requires only periodic oil checks or changes via accessible fill and drain plugs.
• Rugged internals are designed for thousands of operating hours before major service is required.
• Reduced vibration and smooth torque transfer lower stress on engines, pumps, hoses, and frames.
• Each gearbox is factory-tested for load capacity, noise level, vibration, and thermal endurance to ensure long-term reliability.

Typical Applications

• Commercial pressure washers and industrial wash bays requiring stable pump speed and high reliability.
• Agricultural sprayers and wash-down systems for barns, livestock facilities, and machinery cleaning.
• Industrial pump assemblies used in plant maintenance, equipment wash stations, and process-cleaning systems.
• Trailer- and skid-mounted cleaning rigs where compact, efficient drivetrain packages are essential.

Key Features

• Model: AR AR51974 – PA B31-30 Gearbox
• Output shaft: 1-1/8 in keyed
• Reduction ratio: 3.0:1
• Housing material: heavy-duty cast aluminum alloy with cooling fins
• Gearing: precision steel gears with sealed bearings and internal lubrication
• Use: power transmission for high-pressure pumps in pressure washers, sprayers, and industrial systems

AR51974

• The AR51974 PA B31-30 Gearbox delivers efficient torque transfer, reduced
  vibration, and long-term durability in a compact, maintenance-friendly package. Whether
  driving a commercial pressure washer, agricultural sprayer, or industrial pump assembly,
  it keeps pumps in their ideal speed range so systems run smoother, last longer, and
  deliver consistent cleaning performance shift after shift.
