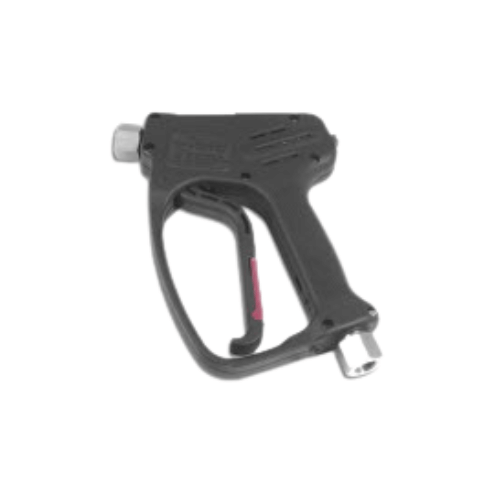

AR40400 | RL600 Trigger Control, 3/8 FBSP, 8100 PSI

AR40400 RL600 Trigger Control | 8700 PSI Rated, 15.8 GPM, 3/8 in. BSP Female

The AR40400 is the RL600 trigger control for ultra high-pressure systems, rated 8,700 PSI (600 bar) with a maximum permissible pressure of 9,500 PSI and flow up to 15.8 GPM (60 L/min). Built from AISI 303 stainless steel, it is made for the jobs that destroy standard triggers: hydro blasting, surface prep, industrial descaling and high-flow contractor rigs.

An easy-pull trigger cuts operator fatigue on long shifts, which matters at these pressures.

Will It Fit My System?

• Pump: rated for systems up to 8,700 PSI working pressure and 15.8 GPM.
• Connections: 3/8 in. BSP female inlet and outlet. Use BSP fittings or adapters on NPT hose and lance ends.
• Temperature: 140°F for continuous use. It tolerates up to 210°F for short periods only, because heat and pressure climb when the trigger is shut on a hot water system.

Not sure it fits? Text a specialist at (505) 226-6061 with your pump pressure and flow and we’ll confirm.

Build the Complete Setup

• AR40402: S6 lance, 32.3 in.
• AR40404 / AR40405: RL80 lance extensions, 31.5 in. and 51 in.
• AR40406: SW600 high-pressure swivel, to stop hose twist at the trigger.

Every hose, fitting, lance and nozzle in the line must be rated for your working pressure.

AR40400 Specifications

• Model: AR40400 (RL600)
• Rated Pressure: 8,700 PSI (600 bar)
• Max Permissible Pressure: 9,500 PSI (660 bar)
• Max Flow: 15.8 GPM (60 L/min)
• Max Temperature: 140°F continuous, 210°F short periods
• Inlet / Outlet: 3/8 in. BSP female
• Material: AISI 303 stainless steel
• Weight: 3 lbs
• Brand: Annovi Reverberi

Shipping: Usually ships via UPS in 1 to 3 days.
