AR22621 | VR3B RW Unloader Valve, 4350 PSI

AR22621 | VR3B RW Unloader Valve, 4350 PSI

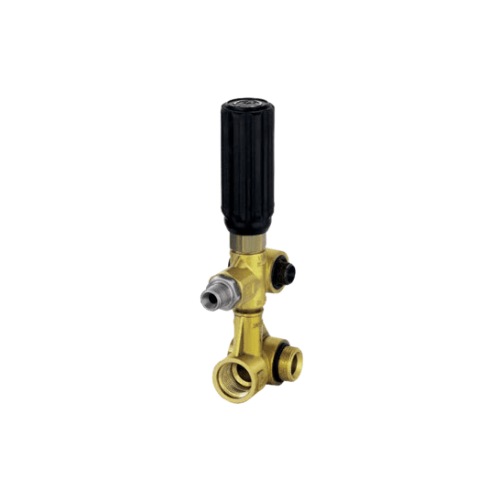

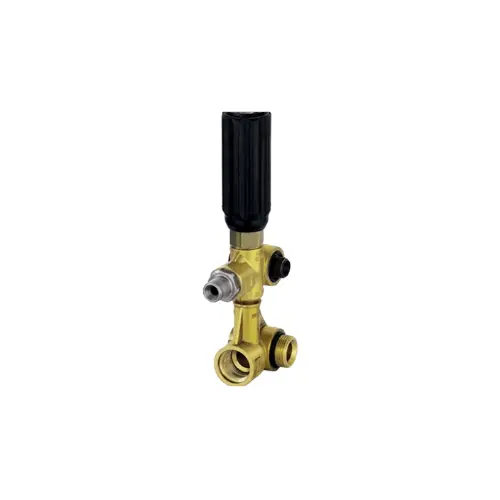

The Annovi Reverberi AR22621 VR3B RW Unloader Valve is a heavy-duty, high-stability
regulator engineered for professional pressure-washing systems operating up to
4,350 PSI. In demanding applications—production wash bays, contractor trailers,
and plant maintenance lines—pressure stability equals productivity. The AR22621 keeps your pump
in the safe zone by regulating working pressure and instantly sending flow to bypass whenever the
spray trigger is released. That prevents destructive overpressure spikes, reduces heat buildup,
and meaningfully extends pump, hose, and gun life. The “RW” build denotes a ruggedized
configuration optimized for continuous duty and harsh environments.

Why Choose the VR3B RW

• True 4,350 PSI control: Smooth modulation under load with rapid return to bypass protects pumps from dead-head stress and keeps operators safer.
• Continuous-use construction: Precision-machined piston, wear-resistant seat, and robust springs and seals handle repeated heat/pressure cycles without “hunting” or drift.
• Stable bypass behavior: Balanced internals maintain consistent recirculation flow, limiting temperature rise during idle periods and protecting packing sets.
• Service-friendly: Common AR wear parts (O-rings, seat, spring, piston assemblies) are available, so shops can rebuild instead of replace.
• Clean plumbing: Compact body reduces fittings and leak points compared with improvised regulator setups.

Note on chemicals: AR22621 is a pressure regulator/unloader only and does not
include a built-in injector. For soap and chemicals, pair with a compatible downstream injector
(fixed or adjustable) sized to your GPM.

Compatibility & Typical System Pairings

• Pump families: VR unloaders are widely used across commercial triplex pumps. If you stock AR RR, XM, or RK series (common VR/VR35 pairings), this valve style is a natural fit; verify thread type and flow/GPM sizing during specification.
• Use cases: Industrial wash bays, equipment and fleet washing, construction cleanup, municipal facilities, rental fleets, and high-cycle commercial rigs.
• Plumbing: Mount on the discharge side with a pressure gauge at the manifold or immediately downstream of the unloader. Provide a low-restriction bypass return to the tank (preferred) or pump inlet with adequate cooling and filtration.

Installation (Shop-Friendly, Step-by-Step)

Secure & Plumb

• Install the unloader following the flow-direction arrows on the body.
• Route bypass to the supply tank whenever possible to minimize heat. If returning to inlet, use a thermo-relief valve and keep bypass times short.
• Apply thread sealant compatible with detergents and avoid over-torquing fittings.

Prime & Gauge

• Fit a liquid-filled pressure gauge (0–5,000+ PSI) in a visible location.
• Open the gun and start the machine; purge air until the stream is steady.

Set Pressure

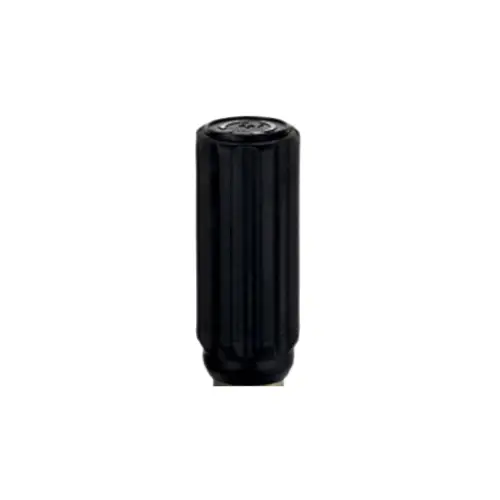

• With the trigger open, turn the adjustment knob in slowly to raise pressure, or out to lower it.
• Cycle the trigger several times to confirm rapid, stable transitions between work and bypass.
• Lock the setting using the jam nut or collar.

Bypass Check

• Release the trigger and watch the gauge drop as flow reroutes to bypass.
• Verify that the bypass line is cool, unrestricted, and leak-free.

Safety Tips

• Never dead-head the system and avoid extended bypass operation.
• Use rated hoses, guns, and quick-couplers at or above 4,350 PSI.
• Always depressurize the system before performing any service.

Maintenance & Troubleshooting

Routine Checks

• Inspect weekly for leaks, temperature discoloration on the bypass line, or pressure drift.
• Flush the inlet screen regularly and keep the water supply free of grit and debris.

Rebuild Indicators

• Slow return to bypass, chatter, pressure spiking, or inability to reach set pressure typically points to a worn seat, piston seals, or spring.

Heat Management

• Excessive pump heat during idle means the bypass loop is too restrictive or cycles are too long—enlarge the return, shorten idle time, or return bypass to the tank.

Chemical Best Practices

• Locate injectors downstream of the unloader to avoid seal attack and inconsistent regulation.

Specifications

• Model: AR22621 (VR3B RW)
• Type: Unloader valve / pressure regulator
• Maximum Working Pressure: 4,350 PSI
• Operation: Automatic bypass on trigger release; manual pressure adjustment

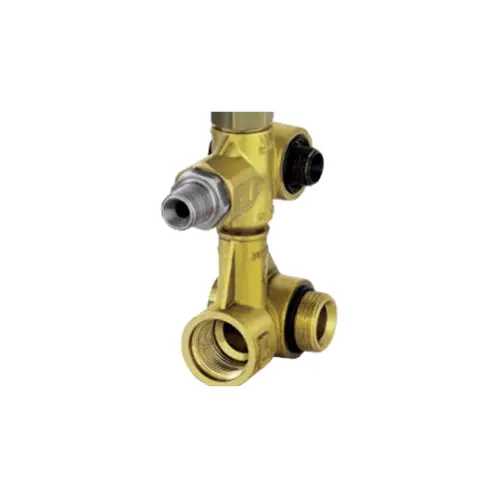

• Body / Internals: Heavy-duty regulator body, hardened seat, reinforced spring and seal set
• Injector: Not included (use a downstream injector as needed)

Shipping & Support

• Fulfillment: Typically ships via UPS Ground; most orders ship within 24 hours (allow 2–3 business days in peak season).
• Serviceability: Designed for shop rebuilds; common AR kits and seals keep lifetime ownership cost low.

Who It’s For

Ideal for industrial operators, commercial contractors, and high-load cleaning systems that
demand stable, repeatable pressure control all day.

AR22621 | VR3B RW Unloader Valve, 4350 PSIBottom Line

If you need a compact, rebuildable unloader that holds set pressure, flips to bypass instantly,
and survives continuous duty at 4,350 PSI, the
AR22621 VR3B RW is the professional’s choice for pump protection and consistent
cleaning output.
