AR20992L | VR 3/B Unloader Valve 1/8 NPT 4000 PSI Compact Control

Overview

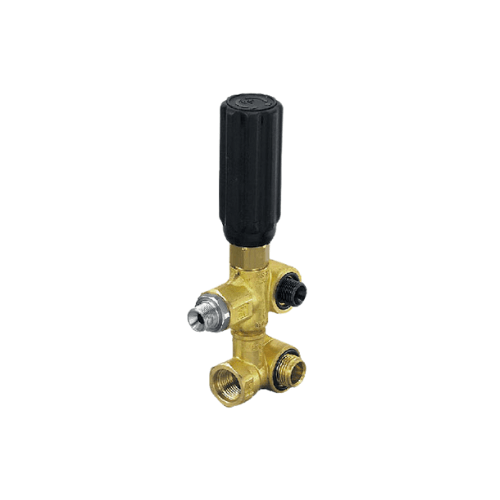

AR20992L – VR 3/B Unloader Valve – 1/8″ NPT, Adjustable to ~4,000 PSI
The Annovi Reverberi AR20992L is a VR 3/B series unloader valve designed for seamless integration into
professional-grade pressure washer systems. With a 1/8″ NPT threaded connection, this valve offers
straightforward installation into compact or custom layouts while maintaining the performance and
durability expected from the VR family of unloaders. Rated to handle pressures up to approximately
4,000 PSI, the AR20992L automatically shifts into bypass mode whenever the spray gun is
released, safeguarding pumps, hoses, and downstream accessories from damaging overpressure conditions.

Compact yet rugged, this model is well-suited for contractor rigs, industrial cleaning systems, and
maintenance crews who need reliable bypass operation in tight or equipment-specific configurations. The
precision-machined internals and reinforced body allow for smooth operation under high-duty cycles,
ensuring equipment longevity and safe system performance.

Key Features

• VR 3/B series performance: Proven design rated up to ~4,000 PSI with stable regulation and clean transitions between spray and bypass.
• 1/8″ NPT threaded connection: Simple integration into US-standard pipe-thread systems and compact layouts.
• Automatic bypass operation: Redirects flow the moment the trigger is released, preventing pressure spikes and thermal buildup.
• Enhanced pump protection: Reduces strain on seals, pistons, hoses, and accessories, extending system life.
• Durable construction: Reinforced body with precision-ground seats, long-life seals, and a robust spring pack.
• Compact footprint: Ideal for space-constrained frames, portable washers, and contractor rigs where standard unloaders may not fit.

System Fit & Compatibility

• VR family mapping:
  M2 = Mini-Matic: compact models, ~200–2,600 PSI.
  C2 = Gymatic 3/B: contractor duty, ~3,650–3,800 PSI.
  VR = VR 3/B & VR35 (this model family): medium-to-heavy-duty systems, up to ~4,000 PSI.
• The AR20992L uses 1/8″ NPT threading, making it a strong fit for systems that require US-standard pipe threads instead of metric or GHT connections.
• Compatible with many AR pump families—including RR, RK, XM, and XW/XWA series—when specified by AR North America fitment charts.
• Fitment reminder: Always verify system GPM, thread size, and orientation before installation.

Installation Guidelines

• Depressurize the system: Shut down engine or motor and release all trapped pressure before removing or installing the valve.
• Check thread compatibility: Use appropriate non-hardening sealant or PTFE tape; avoid excess material that could obstruct ports.
• Mount securely: Support the valve body while tightening—never torque by holding the bypass port or adjustment knob.
• Bypass routing: Route the bypass line back to the pump inlet or supply tank without restriction; avoid kinks or undersized hose that could cause heat buildup.
• Use a gauge: Install a 0–5,000 PSI glycerin-filled gauge to accurately set and confirm pressure.

Adjustment Procedure

• Back the adjustment knob out (counter-clockwise) to minimum before startup.
• With the gun open, bring the system online.
• Gradually turn the knob clockwise until the desired working pressure is reached (≤4,000 PSI or the lowest-rated component in the system).
• Cycle the spray gun repeatedly to confirm fast recovery, stable pressure, and no overshoot.
• Secure the setting with the lock nut or cap to prevent tampering.

Soap & Chemical Injection

• The AR20992L does not include an integrated injector.
• For chemical application, pair it with a downstream injector sized for your GPM and PSI.
• For upstream or built-in injection needs, consider AR Gymatic “Adj. Injector” models such as AR20399 or AR20400.

Maintenance & Service

• Routine flushing: Run clean water after chemical use to protect seals and seats.
• Service interval: Inspect O-rings, seats, and springs seasonally or after roughly 300–500 hours of use.
• Rebuild kits: Seal and seat kits are available from AR North America for quick service.
• Thermal relief: Use a thermal relief valve if the machine will idle in bypass for more than 1–2 minutes.

Troubleshooting Quick Guide

• Chatter or cycling: Check for debris on the seat, bypass line restrictions, or a worn spring.
• Low pressure: May indicate an oversized nozzle, worn seat, or air leaks on the inlet side.
• Overheating in bypass: Caused by insufficient bypass return flow or prolonged idle time.

Shipping & Support

• Shipping method: Standard UPS Ground.
• Typical fulfillment: Generally ships within 24 hours; allow 2–3 business days during peak demand.
• Support resources: Exploded diagrams, fit charts, and parts kits are available from AR North America for both service shops and DIY operators.

Specifications

• Model: AR20992L – VR 3/B Unloader Valve
• Maximum pressure: Adjustable to approximately 4,000 PSI
• Connection: 1/8″ NPT thread
• Bypass function: Automatic pump protection with smooth return flow
• Applications: Professional washers, contractor rigs, industrial maintenance systems
• Construction: Heavy-duty stainless/brass internals with reinforced housing

Bottom line: The AR20992L VR 3/B unloader valve is a go-to choice for contractors and
industrial users who need VR-family reliability in a compact, NPT-compatible design. With stable pressure
regulation, dependable bypass operation, and rugged construction, it delivers the protection your pump—
and your business—can count on.
