AR20888M | Mini-Matic 4/B Unloader Valve MITM 2600 PSI Series

AR20888M | Mini-Matic 4/B Unloader Valve MITM 2600 PSI Series

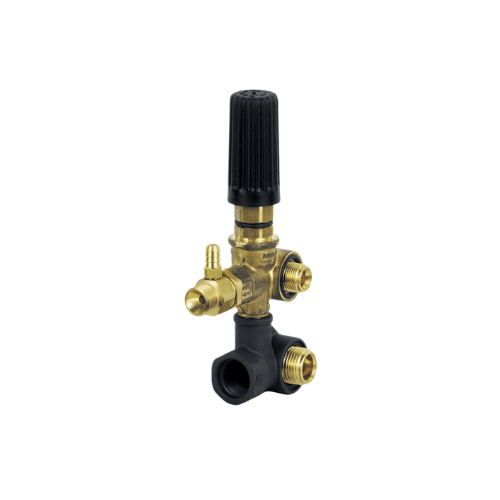

The AR20888M Mini-Matic 4/B Unloader Valve is a factory bolt-on pressure-regulating valve
engineered for Mi-T-M–style pressure washer platforms that utilize Annovi Reverberi high-pressure pumps.
Designed as an OEM-matched component, this unloader provides reliable automatic pressure regulation,
integrated bypass control, and downstream chemical injection in a compact, service-friendly package.
Its configuration is tailored specifically for Mi-T-M layouts, while still retaining the proven
Mini-Matic 4/B architecture widely used across many AR pump families.

Rated for systems up to 2,600 PSI and typically supporting 2 to 3 GPM,
the AR20888M is well suited for light commercial and premium residential pressure washers where
frequent trigger cycling, compact plumbing, and dependable pressure control are critical. By combining
pressure regulation, bypass management, and chemical injection into a single valve body, it helps
simplify system design, reduce hose clutter, and protect key components from damaging pressure spikes.

How the AR20888M Works

Trapped-Pressure Regulation with Internal Bypass

The AR20888M operates as a trapped-pressure unloader. During normal operation, when
the spray gun trigger is pulled and water is flowing, the valve remains in its open position, allowing
pressurized water to pass directly from the pump outlet to the hose, gun, and nozzle at the preset
working pressure.

• When the trigger is released and flow is suddenly stopped, system pressure rises momentarily.
• The internal piston and spring assembly respond instantly, shifting position to relieve pressure.
• Excess flow is diverted through the internal bypass passage, preventing pressure
  from spiking at the pump head.
• Once the trigger is pulled again, the valve smoothly returns to the open position and restores
  working pressure.

Because the bypass circuit is contained entirely within the valve body, there is no need for external
bypass hoses or fittings. This design makes the AR20888M especially attractive for compact carts,
frames, and skid-mounted systems where space is limited and clean plumbing is preferred.

Integrated Chemical Injection

Like other valves in the Mini-Matic 4/B series, the AR20888M includes a built-in adjustable
chemical injector. This injector is typically optimized for low-pressure downstream
chemical application, allowing detergents or cleaners to be drawn into the water stream when the
system is operated in soap mode.

• The integrated injector eliminates the need for external chemical tees or venturi injectors.
• Adjustment allows operators to fine-tune detergent draw for different cleaning tasks.
• Downstream injection keeps chemicals out of the pump, reducing seal and valve wear.

This built-in functionality makes the AR20888M a convenient all-in-one solution for pressure washers
that require both pressure regulation and chemical application without added complexity.

Key Features and Construction

Mini-Matic 4/B Series Design

The AR20888M is part of the well-established Mini-Matic 4/B family of unloaders.
This series has long been used on AR pump platforms such as RC, XT, XTA, XM, XMV, and XMA, and is known
for its stability, compact size, and ease of service.

• Designed for consistent pressure control in the 2–3 GPM operating range.
• Ideal for machines that experience frequent on/off cycling during normal use.
• MITM-specific configuration aligns ports and fittings with Mi-T-M frame layouts.

Durable Materials and User-Friendly Adjustment

Durability is a core strength of the AR20888M. The valve body is constructed from solid brass,
providing excellent resistance to corrosion, pressure fatigue, and thermal stress. Internal components,
including the plunger and spring, are made from stainless steel to ensure long service life under
repeated cycling.

• Brass construction resists corrosion from water and mild detergents.
• Stainless steel internals provide smooth movement and reliable pressure response.
• Molded adjustment knob allows pressure setting without tools.
• Compact footprint and relatively light weight suit portable and fixed systems alike.

Specifications

Technical Ratings

• Model: AR20888M Mini-Matic 4/B MITM Unloader
• Unloader Type: Trapped-pressure unloader with internal bypass
• Maximum Pressure: 2,600 PSI
• Typical Flow Range: 2.0 – 3.0 GPM
• Inlet Port: 1/2-inch FPT
• Outlet Port: 3/8-inch MPT
• Bypass: Internal (no external bypass hose)
• Chemical Injection: Adjustable downstream injector
• Body Material: Brass
• Internal Components: Stainless steel plunger and spring

Recommended Applications

Mi-T-M and OEM Pressure Washer Builds

The AR20888M is an excellent choice for OEM builders and service centers working with Mi-T-M pressure
washers that use AR pumps. Its geometry and porting are designed to match these platforms without the
need for adapters or custom plumbing.

• Compact cold-water pressure washers in the 2–3 GPM, up to 2,600 PSI class.
• Rental fleet equipment that sees frequent trigger cycling by multiple users.
• Replacement installations where maintaining OEM layout is important.

Cleaning and Maintenance Uses

In daily operation, the AR20888M supports a wide range of cleaning tasks where stable pressure and
simple chemical application are required.

• Vehicle and light fleet washing for vans, trucks, and service vehicles.
• Building and grounds maintenance, including walkways, siding, and entry areas.
• Shop and equipment wash bays for routine cleanup of tools and machinery.

Installation and Best Practices

Setup, Adjustment, and Service

Proper installation and adjustment are key to getting the most from the AR20888M unloader valve.
Following best practices helps ensure long service life and consistent pressure control.

• Install using the correct Mini-Matic 4/B mounting hardware and O-ring seals.
• Verify that all downstream components are rated for at least 2,600 PSI.
• Adjust system pressure gradually while monitoring a pressure gauge.
• Flush clean water through the injector after chemical use to prevent buildup.
• Inspect periodically for leaks, erratic pressure, or delayed bypass action.

AR20888M | Mini-Matic 4/B Unloader Valve MITM 2600 PSI Series

The AR20888M Mini-Matic 4/B MITM Unloader Valve is a compact, OEM-grade pressure control
solution designed specifically for Mi-T-M and AR-pump-based pressure washers. With a 2,600 PSI rating,
2–3 GPM operating range, internal bypass, and integrated chemical injection, it delivers reliable,
stable performance in a small footprint. For builders, service technicians, and fleet owners seeking
a direct-fit unloader that protects pumps, simplifies plumbing, and supports detergent use, the
AR20888M stands out as a dependable and factory-approved choice.
