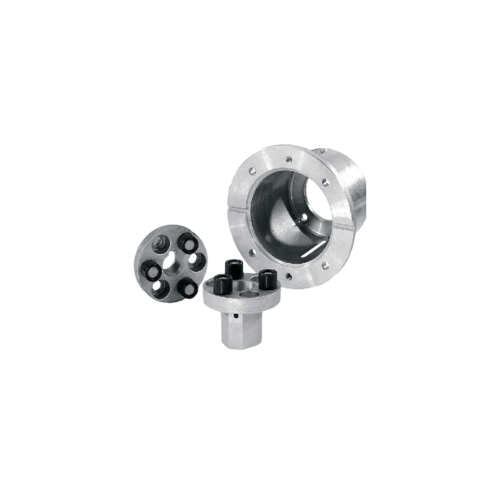

AR1588 F14 Flange – Heavy-Duty Pump Mount Adapter
The AR AR1588 F14 flange is a heavy-duty pump mount adapter designed by Annovi Reverberi to provide
secure, precise, and long-lasting alignment between AR high-pressure pumps and compatible drive systems.
Engineered for professional and industrial use, this F14 flange delivers exceptional strength, stability,
and vibration control, ensuring smooth power transmission and optimal mechanical performance under
continuous, high-load conditions.

F14 Interface & System Compatibility

The F14 configuration follows standardized industry dimensions, allowing seamless
compatibility with AR pumps and a wide variety of engines or electric motors used in professional
pressure washer systems. The fixed mounting design creates a rigid, immovable connection between
components, preventing movement or misalignment that could compromise performance. Once installed, the
flange holds the shafts in precise alignment for smooth, vibration-free rotation and efficient power
delivery.

Heavy-Duty Construction & Alignment Control

Manufactured from premium cast aluminum or steel alloy, the AR1588 combines high structural integrity
with resistance to torque, vibration, and mechanical fatigue. Its thick, reinforced body maintains
perfect shaft alignment between motor and pump even in demanding applications where constant pressure
and rotational forces are present. This precise alignment minimizes stress on bearings, couplers, and
seals, helping prevent premature wear and supporting long-term, balanced operation.

Precision Machining & Easy Installation

Each AR1588 flange is precision-machined to Annovi Reverberi’s exacting
specifications. The bore and keyway are cut to tight tolerances, providing a snug, slip-free fit on the
motor shaft for reliable torque transfer without backlash. The bolt pattern is matched to AR pump
housings and standard motor faces, simplifying alignment and speeding up installation. This precise fit
eliminates guesswork during assembly and ensures long-term mechanical stability.

Performance, Vibration Control & Reliability

In service, the AR1588 plays a key role in maintaining overall pump and system performance. By locking
the pump and drive shaft in exact alignment, it promotes efficient power transfer and reduces mechanical
vibration that can cause imbalance, noise, and accelerated wear. The rigid flange body absorbs and
distributes mechanical loads evenly, protecting both pump and motor from undue stress during
high-pressure operation and contributing to reduced downtime and lower lifecycle costs.

Corrosion Resistance & Low Maintenance

A corrosion-resistant surface finish allows the AR1588 to perform reliably in harsh environments. The
treated surface resists oxidation and degradation from exposure to water, detergents, and humid
conditions, making the flange ideal for outdoor installations, car wash facilities, agricultural
systems, and marine or industrial cleaning applications. Once installed, maintenance is minimal—typically
limited to occasional inspection to confirm that bolts remain secure and that vibration is within normal
limits.

Key Features & Applications

• F14 standard flange for AR high-pressure pumps and compatible drive systems
• High-strength cast aluminum or steel alloy for excellent rigidity and fatigue resistance
• Precision-machined bore and keyway for tight, slip-free shaft engagement
• Fixed, rigid mounting design that maintains precise shaft alignment
• Excellent vibration control for smoother, quieter system operation
• Corrosion-resistant finish for wet, chemical, and outdoor environments
• Simple installation with matched bolt pattern for pumps and motors
• Ideal for commercial pressure washers, hydraulic systems, and industrial cleaning machines

The AR AR1588 F14 flange represents Annovi Reverberi’s engineering excellence in
mechanical coupling technology. Built for strength, precision, and endurance, it provides a stable,
vibration-resistant connection between pump and motor assemblies—ensuring efficient power transfer,
quiet operation, and extended system life in demanding professional and industrial applications.
