AR1587 Flange F13 Pump Mount Adapter | High-Performance Pumps

Overview

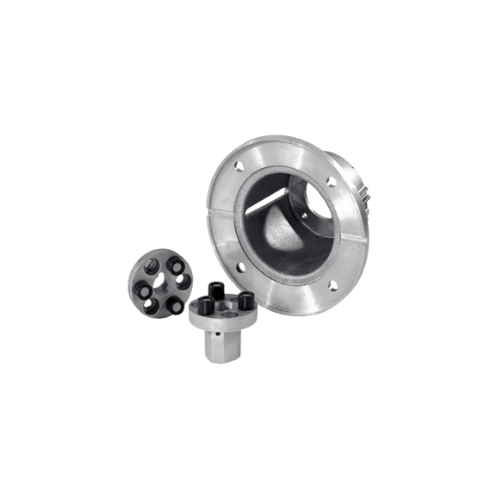

The AR AR1587 F13 flange is a high-performance pump mount adapter engineered by
Annovi Reverberi to ensure precise alignment, exceptional strength, and long-term reliability between
AR high-pressure pumps and compatible drive systems. Designed for demanding industrial and commercial
cleaning applications, the F13 flange provides a rigid, vibration-resistant connection that maintains
perfect shaft alignment under continuous high-load operation. Its durable construction, precise
machining, and corrosion-resistant finish make it an ideal choice for professionals who require
consistent mechanical stability and efficient power transfer in their pressure washer or
fluid-handling systems.

Construction & Materials

Constructed from heavy-duty cast aluminum or steel alloy, the AR1587 F13 flange combines superior
rigidity with resistance to torsional stress, mechanical fatigue, and vibration. This strong yet
lightweight material ensures structural stability during long-term use, even in environments where
temperature fluctuations, high torque, and constant pressure are present. The precision-machined body
maintains exact concentric alignment between the motor and pump shafts, preventing misalignment that
can cause premature wear on seals, bearings, and couplers. The result is smoother operation, improved
system efficiency, and reduced mechanical noise during continuous-duty operation.

F13 Interface & Compatibility

The F13 configuration is designed according to standard pump-to-motor interface
dimensions, allowing seamless compatibility with AR’s extensive range of high-pressure pumps and a
variety of electric or gas-powered motors. Its fixed mounting structure provides a solid, immovable
connection that locks both components securely in place, maintaining shaft alignment and eliminating
flex or movement under vibration. This rigid interface ensures optimal torque transfer and protects
the pump from mechanical stress that can occur in less stable mounting systems.

Installation & Fit

Installation of the AR1587 is simple and efficient. The flange features precision-drilled bolt holes
that align perfectly with AR pump housings and standard motor faces, allowing for quick, tool-friendly
attachment using standard hardware. The internal bore and keyway are machined to tight tolerances for
a secure, slip-free fit on the drive shaft, ensuring smooth rotational balance and positive coupling.
Once installed, the fixed-mount design provides permanent alignment with minimal need for future
adjustment or maintenance.

Operational Performance

In operation, the AR1587 plays a vital role in maintaining efficiency and stability within
high-pressure systems. By keeping the pump and drive shafts perfectly aligned, it reduces vibration,
energy loss, and mechanical noise while improving overall power transfer. This precise alignment
minimizes the risk of premature component wear, allowing the system to operate more quietly and
reliably over long periods. It also enhances safety by preventing shaft movement or coupling failure
under heavy torque loads.

Corrosion Resistance & Durability

The flange’s corrosion-resistant finish ensures longevity even in harsh working environments.
Resistant to rust, oxidation, and chemical exposure, the AR1587 is well-suited for outdoor or
high-moisture conditions, including car washes, agricultural operations, and marine or industrial
cleaning applications. The protective surface coating helps maintain smooth operation and prevents
degradation, allowing the flange to deliver consistent performance over years of continuous use.

Serviceability & Downtime Reduction

The AR1587 is designed to improve serviceability and reduce downtime. Its standardized dimensions make
it easy to replace or interchange with other compatible flanges during equipment maintenance. The
rigid, open structure allows quick access for inspection or servicing of the connected pump and motor
shafts without requiring full system disassembly. This practical design supports efficient maintenance
procedures in busy industrial environments.

Quality Assurance

Each AR1587 F13 flange is manufactured under Annovi Reverberi’s rigorous quality control standards to
guarantee precision, durability, and compatibility. Every unit undergoes dimensional inspection,
surface finishing, and mechanical alignment testing before release to ensure flawless performance. The
tight machining tolerances and reinforced design reflect AR’s commitment to producing components that
maintain accuracy and dependability in high-demand applications.

Maintenance Requirements

Once installed, the AR1587 requires minimal upkeep. Routine checks to verify that mounting bolts
remain tight are generally sufficient to maintain alignment. Because of its robust materials and
precision fit, the flange does not require lubrication or ongoing adjustment. The solid mounting
design eliminates play between components, ensuring long-lasting mechanical stability and reduced
maintenance costs.

Applications & Benefits

The AR1587 is ideal for use in a wide range of applications, including commercial pressure washers,
manufacturing machinery, and industrial fluid-handling systems where precision coupling and durability
are critical. Its rigid, vibration-resistant design ensures that pumps operate efficiently,
consistently, and safely under heavy workloads, making it a trusted solution for professionals who
demand the highest mechanical standards.

The AR AR1587 F13 flange embodies Annovi Reverberi’s dedication to precision
engineering and industrial-grade reliability. Designed to provide exact alignment, secure mounting,
and efficient torque transfer, it ensures superior system performance and extended equipment life.
With its corrosion-resistant construction, high-strength materials, and low-maintenance design, the
AR1587 delivers dependable performance and unmatched stability for any high-pressure or industrial
pump system that requires strength, precision, and long-term durability.
