AR1583 Flange F11 Pump Mount Adapter | Pump to Engine Coupling

Overview

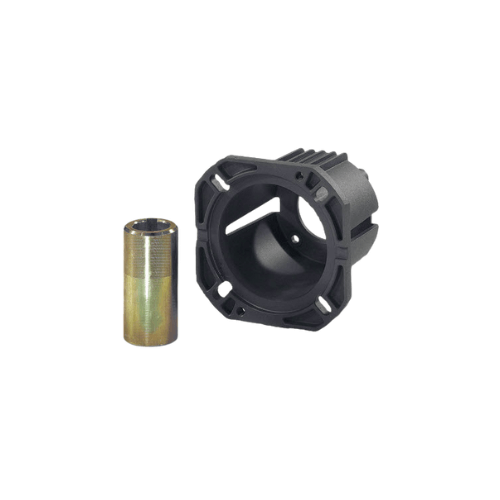

AR AR1583 F11 Flange – Heavy-Duty Pump Mount Adapter
The AR AR1583 F11 flange is a heavy-duty pump mount adapter engineered by Annovi Reverberi to provide a
precise, stable, and durable connection between AR high-pressure pumps and compatible drive systems.
Designed to maintain perfect shaft alignment and smooth torque transfer, this F11 flange is essential
for reliable mechanical coupling and long-lasting performance in professional and industrial cleaning
applications. Its robust build and precision machining make it ideal for continuous-duty environments
where vibration control, stability, and structural integrity are critical to system efficiency and
longevity.

F11 Interface & System Compatibility

The F11 configuration follows industry-standard dimensions for pump-to-motor or
pump-to-engine interfaces, allowing seamless compatibility with AR pumps and a wide range of industrial
power units. The flange’s fixed design creates a rigid, maintenance-free coupling that eliminates flex
or movement between components. Once installed, it holds both pump and motor securely in place,
maintaining precise shaft alignment throughout the system’s operating life and ensuring optimal energy
transfer from the drive source to the pump.

High-Strength Construction & Alignment Control

Constructed from high-strength cast aluminum or steel alloy, the AR1583 offers superior rigidity and
resistance to torsional stress, vibration, and fatigue. Its precision-engineered geometry ensures that
pump and engine shafts remain perfectly concentric, preventing misalignment that can accelerate wear on
bearings, seals, and couplers. The solid metal body maintains dimensional stability under high torque
loads, delivering consistent performance even during extended operation in demanding pressure-washer
and fluid-handling systems.

Precision Machining & Load Distribution

Each AR1583 flange is precision-machined to tight tolerances for exact fit and
alignment. The bore and keyway are cut for a secure, slip-free fit on the drive shaft, eliminating play
and unwanted vibration. A matched bolt pattern and face design interface directly with AR pump mounting
dimensions, simplifying installation and ensuring proper alignment on the first assembly. The
symmetrical design promotes even load distribution across the flange, minimizing imbalance and
extending the service life of connected components.

Vibration Reduction & Operating Performance

In operation, the AR1583 provides a stable mechanical interface that supports consistent pump
performance. By minimizing vibration and maintaining a balanced connection, it reduces energy loss and
mechanical noise, resulting in smoother, quieter system operation. This stability protects sensitive
internal components from damage caused by prolonged vibration or misalignment, improving reliability,
reducing downtime, and lowering maintenance costs over the equipment’s lifetime.

Corrosion Resistance & Environmental Protection

A corrosion-resistant surface treatment protects the AR1583 flange from rust, oxidation, and detergent
attack. It performs reliably in outdoor, marine, and industrial washdown environments where exposure to
water, cleaning agents, and temperature swings is routine. The rugged finish preserves the flange’s
structural integrity and alignment precision, even after years of service in harsh conditions.

Installation, Quality Assurance & Maintenance

Installation is straightforward using standard tools. The flange is secured between pump and drive
motor with its robust mounting holes providing strong anchoring points for hardware. Once installed,
the fixed configuration maintains permanent alignment, eliminating the need for periodic adjustments.
Maintenance is typically limited to occasional inspection of bolts and mounting surfaces.

Every AR1583 flange is produced under Annovi Reverberi’s rigorous quality assurance process and is
inspected for accurate machining, surface finish, and dimensional consistency. This ensures a perfect
fit with AR pumps and compatible engines and dependable performance across a wide range of applications
and duty cycles.

Key Features & Applications

• F11 standard flange for AR high-pressure pumps and compatible drive systems
• High-strength cast aluminum or steel alloy for rigidity and long service life
• Precision-machined bore and keyway for tight, slip-free shaft engagement
• Fixed, maintenance-free design that maintains perfect shaft alignment
• Excellent vibration control for smoother, quieter operation and reduced wear
• Corrosion-resistant finish for wet, chemical, and outdoor environments
• Simple installation with standard tools and matched bolt pattern
• Ideal for professional pressure washers, industrial cleaning machines,
  agricultural sprayers, and manufacturing systems

The AR AR1583 F11 flange exemplifies Annovi Reverberi’s expertise in mechanical
design and industrial performance. Built for perfect shaft alignment, secure coupling, and smooth
torque transmission, it delivers optimal power efficiency and extended equipment life in demanding
pump-and-engine assemblies.
