AL557-B | M22 x 3/8 QC Plug Adapter Brass Pressure Washer Fitting

AL557-B | M22 x 3/8 QC Plug Adapter Brass Pressure Washer Fitting

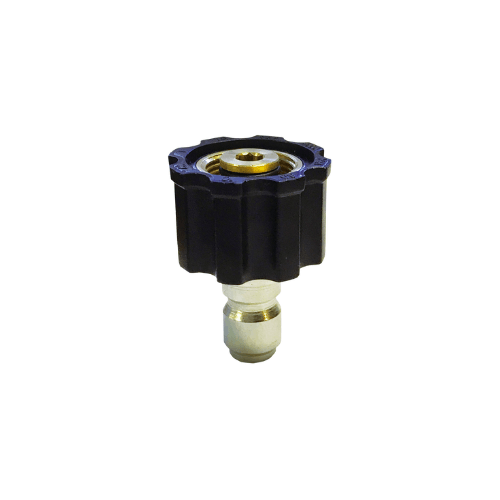

The AR AL557-B — M22 to 3/8″ QC Plug Adapter | Brass Fitting is a compact, OEM-grade brass
adapter engineered by Annovi Reverberi to bridge standard M22 threaded connections to a 3/8-inch quick-connect (QC)
plug. It converts M22 threads to a 3/8″ QC plug for fast, tool-free hookups, supporting tidy plumbing,
leak-resistant seals, and rapid accessory changes in pressure-washing systems.

Connection Geometry & Flow

M22 Threaded Side

On one side, the M22 threaded interface mates smoothly with common hose tails, guns, or manifolds
found across residential and professional equipment. Precision-machined threads provide crisp engagement and a
repeatable seal that stands up to vibration, start–stop cycling, and detergent-rich environments.

3/8″ Quick-Connect Plug Side

The opposite end integrates a 3/8-inch QC plug that snaps into a compatible female coupler with a
confident click, eliminating time-consuming wrench work and reducing cross-thread risk during frequent tool changes.
The adapter’s smooth internal bore supports steady flow from pump to nozzle, helping minimize turbulence and pressure
loss so spray patterns remain consistent when switching between foam cannons, rotary tips, surface cleaners, or
extension wands.

Streamlined Hydraulic Path

Because the AL557-B centralizes the transition from threads to quick-connect in a single fitting, it reduces the
number of joints and potential leak points in the chain—an advantage on mobile rigs and compact bays where every
connection must perform reliably. A clean, well-seated adapter helps maintain a calmer hydraulic profile, delivering
steadier trigger feel and predictable spray behavior during long passes.

Construction & Design

Brass Body & Corrosion Resistance

Built from solid, corrosion-resistant brass, the fitting maintains dimensional stability in wet,
detergent-rich environments. Its polished surfaces resist galling at the threads, making future service and
reconfiguration easier for technicians.

Compact, Non-Swivel Form

The rigid, non-swivel body provides a stable, vibration-resistant link that resists micro-movement at the seal. Its
short overall length helps keep lance and gun assemblies balanced, while the compact hex allows confident tool
purchase without adding bulk that can snag on guards or hose reels. The brass body dissipates heat over extended
sessions and wipes clean easily after splash, keeping inspection points visible.

Usage & Workflow

Faster Accessory Changes

In daily use, operators can pre-build hose and gun assemblies with the M22 side fixed, then rely on the QC plug for
rapid click-in swaps—snap on a foamer for detergent laydown, switch to a wide fan for dwell-time management, then
lock in a rotary nozzle for agitation, all in seconds without juggling tools or rewrapping tape.

Standardizing Mixed Fleets

In mixed fleets that combine threaded and quick-connect hardware, standardizing on the AL557-B at key junctions
simplifies training, reduces adapter clutter, and gives technicians a consistent connection feel across stations. For
system builders, the adapter offers a neat way to convert legacy M22 layouts to modern quick-connect workflows
without re-plumbing entire assemblies; for service teams, it is a reliable fix when a gun or hose change introduces a
thread/QC mismatch.

Installation & Best Practices

Threaded Side Setup

• Verify M22 threads and sealing surfaces are clean and undamaged.
• Start the adapter by hand to ensure straight engagement and avoid cross-threading.
• Snug on the hex flats to appropriate tightness—firm enough to seal, without over-torquing seats.

Quick-Connect Side Setup

• Engage the 3/8″ QC plug with a compatible female coupler, confirming an audible click and solid lock-in.
• Perform a firm tug test before pressurizing to verify the connection is fully seated.
• Ensure the coupler’s O-ring is intact and lightly lubricated with a non-reactive grease to maintain a
  bubble-tight seal through repeated connect/disconnect cycles.

Maintenance & Inspection

Routine Care

• After chemical use, rinse the QC end and wipe the plug face clean.
• Inspect the coupler O-ring that mates to the plug; replace worn or damaged O-rings to prevent nuisance weeping.
• Check the M22 threads periodically for galling or impact damage and clean as needed to preserve easy engagement.

Hydraulic Performance

Because adapters often sit at the center of the pressure path, a clean, well-seated AL557-B supports a calm hydraulic
profile. Pumps and unloaders benefit from reduced cycling caused by micro-leaks, while operators see steadier
pressure and more consistent results on the surface.

AL557-B | M22 x 3/8 QC Plug Adapter Brass Pressure Washer Fitting

The AR AL557-B — M22 to 3/8″ QC Plug Adapter provides a durable, precision-fit bridge between
threaded M22 connections and 3/8″ quick-connect workflows. By combining solid brass construction, leak-resistant
sealing, and fast, tool-free accessory changes, it keeps connections secure, turnarounds quick, and water moving
exactly where it belongs—through the nozzle, not onto the floor.
