AL457-B-15 | 3/8 M x M22 Fixed Quick Coupling 15 mm Extension

AL457-B-15 | 3/8 M x M22 Fixed Quick Coupling 15 mm Extension

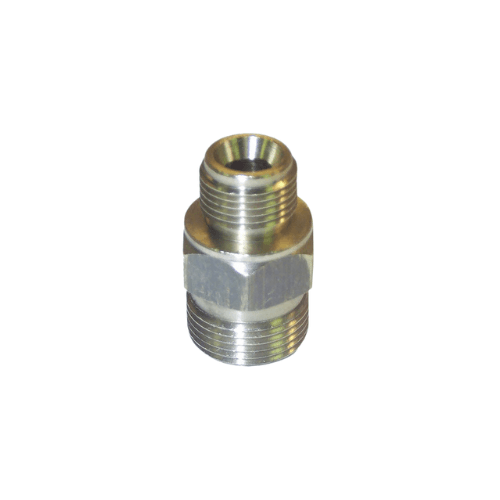

The AR AL457-B-15 — Reducer 3/8″ Male to M22 Male, 15 mm QC is a fixed quick-coupling reducer
that converts a 3/8″ male thread to an M22 male, 15 mm nipple for fast, tidy hookups. Its compact, leak-resistant
design supports stable pressure, quick system reconfigurations, and clean plumbing in professional pressure-washer and
washdown layouts.

Connection Geometry & Flow

3/8″ Male Thread Side

On one side, the 3/8″ male thread starts easily and draws down square into the mating port on
pumps, manifolds, hose tails, or accessory blocks. The fixed body preserves alignment under vibration so seals stay
seated and joints remain dry through start–stop cycles.

M22 Male, 15 mm Nipple Side

The opposite end integrates an M22 male, 15 mm nipple that mates directly to components designed for
M22 connections with a 15 mm internal seat. This direct transition minimizes turbulence, reduces the number of leak
paths, and maintains a calm hydraulic profile at the gun or lance for consistent spray behavior.

Low-Restriction Internal Path

A smooth, low-restriction bore helps maintain steady flow, reducing unloader chatter and pressure fluctuations.
Operators will notice steadier gauge readings and more predictable chemical draw when downstream injectors are
engaged, because the reducer supports stable system pressure instead of introducing extra disturbance.

Construction & Design

Fixed, Compact Coupling

The AL457-B-15 features a fixed (non-swivel) body that keeps hose behavior predictable during long
passes and reduces twist at the joint that can lead to micro-weeping or premature seal wear—especially on mobile rigs
that experience constant movement and vibration. Its short overall length maintains good balance at the gun, minimizes
lever-arm stress at the port, and helps hoses track naturally to reduce operator fatigue.

AL457-B-15 Installer-Friendly Hex Profile

A compact hex provides sure tool purchase in tight panels or under shrouds without adding bulk that might snag on
guards or hose reels. The exterior wipes clean quickly after splash, leaving inspection points visible for end-of-day
checks.

Installation & Best Practices

Simple Setup

• Verify both mating threads are clean, undamaged, and free of debris or excessive sealant.
• Start all connections by hand to ensure proper engagement and avoid cross-threading.
• Snug on the hex flats to the recommended tightness to compress the sealing faces—overtightening is unnecessary and can distort seats.
• Perform a brief pressure test; if any drip appears, depressurize, re-seat, and confirm the sealing land is clean before returning to service.

Inventory & Workflow Benefits

By consolidating the thread-size conversion into a single, close-coupled component, the AL457-B-15 streamlines
inventory and training. Service teams can stock fewer parts, avoid carrying duplicate hoses in multiple standards, and
teach one consistent connection routine across bays, trailers, and mobile rigs.

Typical Applications

Where It Fits

• Standardizing fleets on 3/8″ hose tails while adapting to M22-equipped guns and lances at the point of use.
• Pre-built foam, wide-fan rinse, or rotary-nozzle assemblies that need quick swaps without extra fittings.
• Converting legacy tools or new accessories to a common M22 workflow without re-plumbing the pump side.
• Compact electric units, small gas machines, modular skids, mobile detailing rigs, rental fleets, and facility wash stations.

Maintenance & Troubleshooting

Routine Care

• Include a brief visual inspection in shutdown routines to spot thread galling, nicked sealing faces, or impact marks.
• Address minor thread damage early and refresh seals on mating components as needed to preserve a factory-tight connection.
• Keep the exterior clean so any moisture at the joint is easy to spot during checks.

Diagnostic Checkpoint

The adapter also serves as a convenient A/B test location. If misting, pressure fluctuation, or stubborn engagement
occurs, remove and inspect the reducer to see whether symptoms originate at this interface or elsewhere in the
circuit.

AL457-B-15 | 3/8 M x M22 Fixed Quick Coupling 15 mm Extension

The AR AL457-B-15 Reducer 3/8″ Male to M22 Male, 15 mm QC provides a precise, repeatable bridge
between two common pressure-washer standards in a single, compact fitting. By keeping the transition stable, dry, and
low-restriction, it helps crews work faster with fewer interruptions and a cleaner, more consistent result—keeping
water moving through the nozzle, not onto the floor.
