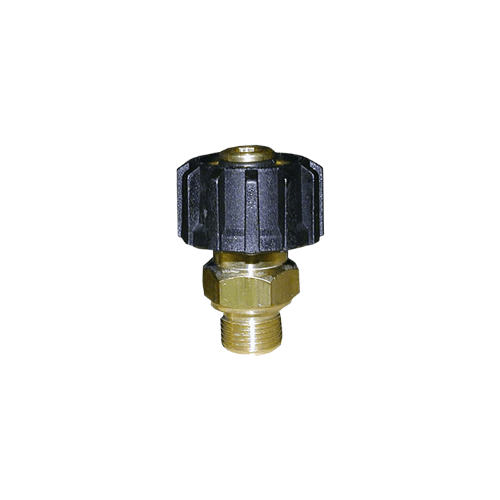

AL451-B | 1/4 M x M22 Fixed Quick Coupling Brass Pressure Fitting

Overview

The AR AL451-B — Fixed Quick Coupling 1/4 M to 22 mm | M22 is a compact, purpose-built connector that
converts a 1/4-inch male thread to a 22 mm M22 male thread for secure, leak-resistant
joins between common pressure-washing components. By putting this conversion inside a single, rigid body, the coupling
eliminates stacked adapters, reduces leak paths, and keeps hose and gun setups tidy, light, and easy to service.

Its straightforward geometry makes configuration simple: the 1/4-inch male end threads into standard 1/4-inch female
ports typically found on pump outlets, whip lines, or select hose leads, while the M22 male end mates with widely used
M22 female interfaces on many spray guns, wands, and accessories. The result is a clean, reliable bridge that helps
maintain steady flow from pump to nozzle and a predictable trigger feel on every job.

Connection Details & Integration

1/4-Inch Male to 22 mm M22 Male

• 1/4-inch male end: threads into standard 1/4-inch female ports on pumps, hoses, or manifolds.
• M22 male end: connects directly to M22 female spray guns, lances, and accessories.
• Single-piece conversion: replaces daisy-chained fittings to reduce turbulence and leak points.
• Compact form factor: ideal in tight frames and carts where space around pump heads or rails is limited.

Many crews treat the AL451-B as a semi-permanent bridge at the machine and place quick-connects farther downstream for
rapid tool changes. Sacrificial couplers handle day-to-day wear, while this core conversion stays tight and dry at the
equipment.

Performance & Stability

Leak-Resistant, Repeatable Joints

The fixed body minimizes micro-movement at the joint, helping seals stay seated during heat, vibration, and routine
pressure cycles. With fewer interfaces to monitor, troubleshooting becomes more direct if moisture appears, and the
overall assembly remains lighter and less cluttered.

• Rigid construction: supports a consistent seal that resists weeping under normal service.
• Smooth hydraulic path: helps preserve steady flow and uniform spray patterns.
• Clean install: wrench flats provide positive grip for firm, even tightening without overtightening.

Setup Strategy & Typical Uses

Building Tidy, Standardized Rigs

The AL451-B is well suited to any location where longevity at the joint matters more than frequent tool-free
disconnections. It is an effective way to standardize mixed fleets—unifying a 1/4-inch female outlet environment with
M22-based guns and accessories so new team members learn connections quickly and the right parts reach the job the
first time.

• Equipment washdown: bridges pump outlets to M22 guns on wash carts and skids.
• Vehicle & trailer cleaning: supports stable hose-to-gun transitions for repetitive, daily work.
• Facility and grounds maintenance: keeps siding, masonry, and pad-cleaning setups organized and dry.
• Shop spares: compact connector travels well in tool bags with no sleeves or springs to seize.

Installation, Care & Best Practices

Getting the Most Service Life

• Before installation, wipe both mating threads clean and start connections by hand to avoid cross-threading.
• Align hoses to relieve twist, then tighten on the wrench flats to a firm, even seat without excessive torque.
• During initial pressurization, observe the joint; if dampness forms, de-pressurize, re-snug, and recheck once warm.
• Routinely confirm both ends remain snug, inspect nearby hose for chafe, and keep the area clean for reliable visual checks.
• If a slow drip appears after extended runtime, remove, clean, and reseat the coupling—provided threads and seats are sound.
• Avoid heavy sealant buildup or grit in the threads, and route hoses with gentle bends so vibration is not driven directly into the joint.

Whether it serves as a permanent bridge in a dedicated build or as a reliable problem-solver in a field kit, the
AR AL451-B Fixed Quick Coupling 1/4 M to 22 mm keeps water moving efficiently from pump to nozzle.
By reducing leak paths, streamlining assembly, and supporting consistent day-to-day performance, it lets operators
focus on the surface in front of them—not the fitting behind the handle.
