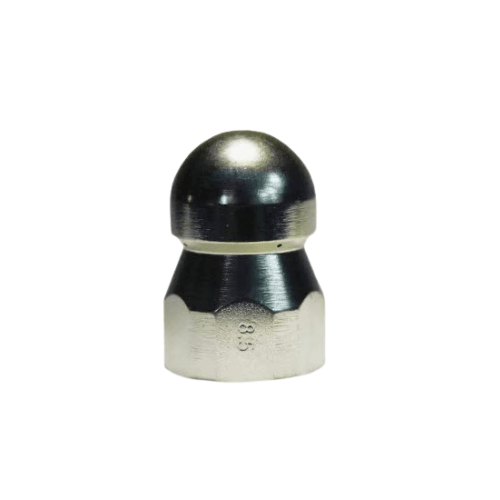

AL0124722360 Sewer Nozzle 3/8 inch F Orifice 12.0 | High-Flow Jet

AL0124722360 Sewer Nozzle 3/8 inch F Orifice 12.0 | High-Flow Jet

The AR AL0124722360 — 3/8 F Sewer Nozzle, Orifice 12.0 is a high-flow sewer nozzle designed for
professional jetting tasks where moving substantial water volume through the pipe is the top priority. With a
3/8-inch female connection and a large 12.0 orifice, it delivers sweeping hydraulic
force to flush debris, transport loosened material, and reestablish open flow quickly before inspection or downstream
work. Its simple, reliable interface integrates fast with common jetter hose whips and adapters so crews can get to
cleaning without extra setup.

Why a AL0124722360 12.0 Orifice on a 3/8-Inch Female Nozzle

The 12.0 orifice is engineered to pass significantly more water than smaller sizes, emphasizing volume
over aggressive cutting. That high-flow character creates a strong, coherent plume that sweeps grease fragments, scale,
sand, and fines downline instead of just stirring them in place. Paired with the familiar 3/8-inch female
inlet, it’s an ideal tool for post-cut cleanup, maintenance passes, and initial flushing where the goal is to
restore drainage and visibility rapidly.

AL0124722360 Sewer Nozzle 3/8 inch F Orifice 12.0 | High-Flow Jet

Key Features & Benefits

• 3/8-inch female connection: mates cleanly with standard jetter hoses, whips, and adapters.
• Large 12.0 orifice: prioritizes water volume for deep flushing and fast debris transport.
• High-flow hydraulic profile: generates a sweeping water stream that carries loosened material
  toward the access point efficiently.
• Simple, non-rotating design: no moving parts—emphasis on clean flow paths and predictable
  hydraulics.
• Volume-focused performance: complements cutting or rotating tools by evacuating residual
  fragments and films.

Operation & Technique

Integration is straightforward. Before deployment, verify that hose-end and adapter threads are clean, confirm the
pump is matched appropriately to the 12.0 orifice, and stage the access so the hose enters the line in
smooth curves rather than sharp bends that sap energy. Place the foot control or local on/off device within easy reach,
pulse flow to confirm a stable discharge, and observe hose behavior as the nozzle enters the pipe.

• Advance at a measured pace so the high-flow plume sweeps and floats debris instead of merely agitating it.
• Pause briefly at low spots, tees, and junctions to lift settled material into motion with the return flow.
• Adjust pump output to maintain strong, coherent flow without overdriving the line or creating unnecessary splash.
• Slow slightly through bends and offsets to keep the hose centered and let the water do the work.

Care & Maintenance

Routine care keeps performance consistent. At the end of a shift, depressurize the system, disconnect, and rinse the
nozzle exterior to remove grit and residue. Inspect the AL0124722360 3/8-inch female connection for wear, check the
12.0 orifice for blockage or edge damage, and soak or back-flush if fines are present. Store the nozzle
clean and dry to reduce corrosion risk, and label storage bins by model and orifice size so the correct tool reaches the
truck quickly on the next job.

Typical Applications

• High-flow line flushing after cutting or rotating nozzles have broken up heavy deposits.
• General drain cleaning where restoring open flow and visibility is the primary objective.
• Pre-inspection passes ahead of camera work, lining, or spot repairs.
• Maintenance flushing in lines with recurring grease, sand, or fine sediment buildup.
• Post-cut cleanup to transport loosened roots, scale, and organic material out of the system.

By combining a familiar 3/8-inch female interface with an orifice 12.0 sized for
volume, the AR AL0124722360 offers a dependable, standards-based solution for jetting crews who rely on
high-flow flushing to keep jobs on schedule and results consistent across changing conditions.
