Not every job needs 4,000 PSI. Most residential work does not, and on painted siding, cedar or older mortar the extra pressure is a liability rather than a feature. What matters more is that the pump is a triplex you can rebuild instead of an axial cam pump that gets thrown away with the machine.

The RSV3G25-PKG is not in the current AR lineup. Two packages cover that middle ground instead, and the difference between them is small but real.

Two RSV3G25-PKG options

The RSV25G25D-F25 is a brass-head triplex with aluminium connecting rods and ceramic pistons, weighing 14 lbs. There is also a F25CH version for Campbell-pattern engines.

Which engine

Work from EBHP, which is GPM times PSI divided by 1,460, then add margin because published small-engine horsepower is optimistic in the real world.

• RSV25G25D-F25 needs 4.3 HP at the shaft. A 6.5 HP class engine, such as a 212cc, is comfortable.
• RSV3G27D-PKG needs 5.5 HP. You want a 6.5 HP engine minimum, and a 301cc gives you real margin for long duty cycles and hot days.

Both take a 3/4 in hollow shaft, and that is the spec that decides fit. Measure the engine’s shaft rather than going by displacement or badge, because shaft diameter varies within a manufacturer’s lineup and across model years.

Why 2,500 to 2,700 PSI is the right answer more often than people think

• Surface safety. This range cleans siding, decks, fences and vehicles without stripping paint, furring cedar or blowing out old mortar. A 4,000 PSI machine in inexperienced hands does real damage in seconds.
• Water supply. A domestic hose bib supplies roughly 4 to 6 GPM on a good day and less through a long hose. A 3 GPM pump is comfortably inside that. A 5 GPM pump will starve and cavitate.
• Engine cost. 5.5 EBHP runs off an inexpensive, widely available engine. 4 GPM at 4,000 PSI needs a 420cc class engine at several times the price.
• Rebuildability. This is the actual argument. A triplex plunger pump has replaceable valves, seals and plungers. The axial cam pump in a consumer washer does not, which is why those machines get replaced rather than repaired.

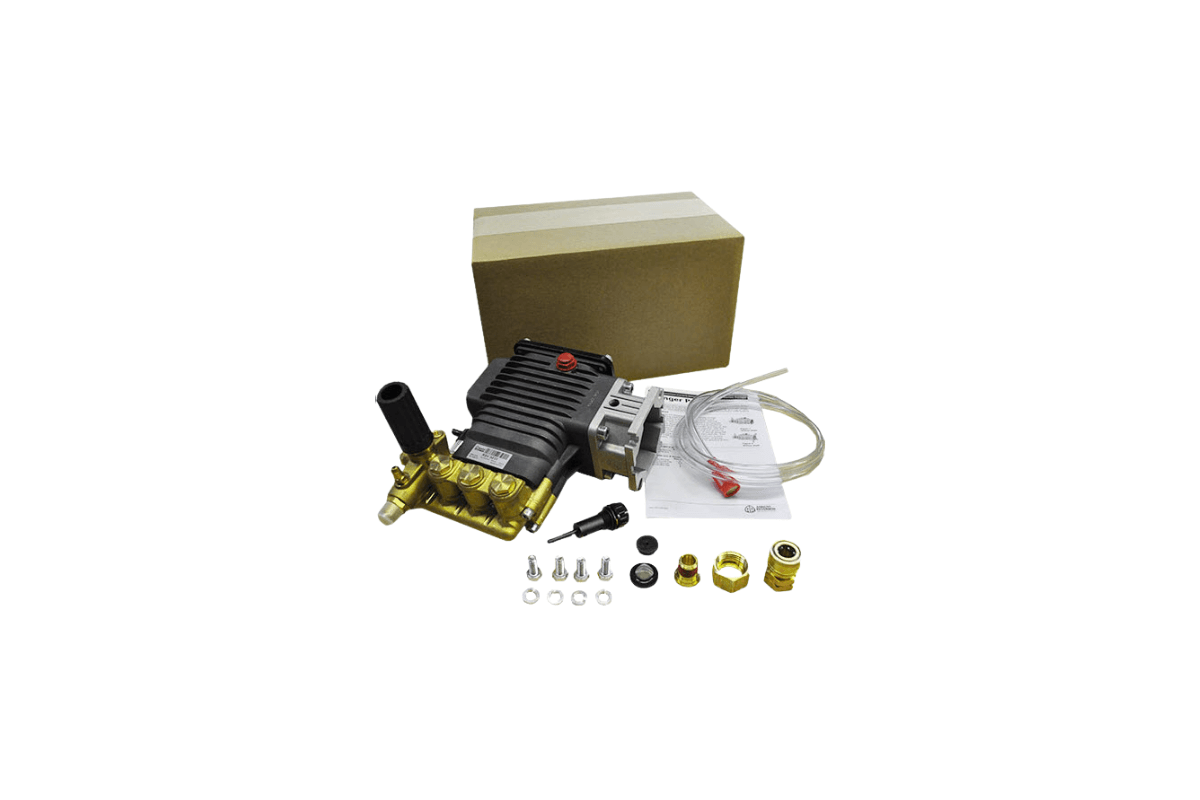

Building a machine around the RSV3G25-PKG

1. Confirm the shaft is 3/4 in before ordering anything.
2. Fit the pump onto the crankshaft and bolt it to the flange. It should go on without force.
3. Plumb it. Garden hose to the inlet, high pressure hose to the outlet, and fit an inlet filter. On well water or a tank feed the filter is not optional.
4. Connect the detergent line to the chemical injector.
5. Fill with pump oil before the first start. Running dry for a few seconds costs you seals.
6. Set the unloader with the trigger open, then confirm bypass with it closed.

The thermal relief valve in the package matters on a build like this, because homeowner use involves long pauses with the trigger released while you move a ladder or answer the door. That is exactly when bypass water heats up.

Where the RSV3G25-PKG fits

Residential: cars, trucks and RVs, patios, decks and fences, siding and brick, driveways and sidewalks with light soil or mildew.

Light commercial: property maintenance, small rental units, landscaping and farm equipment, small shop and facility cleaning.

What it is not for: heavy grease, coating removal, or driving a surface cleaner larger than about 15 in. If those are your jobs, step up to the RKV4G37-PKG at 4.0 GPM / 3,700 PSI and budget for a bigger engine.

Keeping the RSV3G25-PKG working

• Oil change at 50 hours, then every 300 hours or three months
• Flush with clean water after detergent, every time
• Replace O-rings at the first weep
• Pump saver before any storage below freezing, which is the failure that ends most of these pumps

Do that and the pump outlives two or three store-bought machines, which is the entire reason to build rather than buy.

Not sure your engine matches? Send the shaft diameter and engine size and you will get a straight yes or a better-fitting package.
