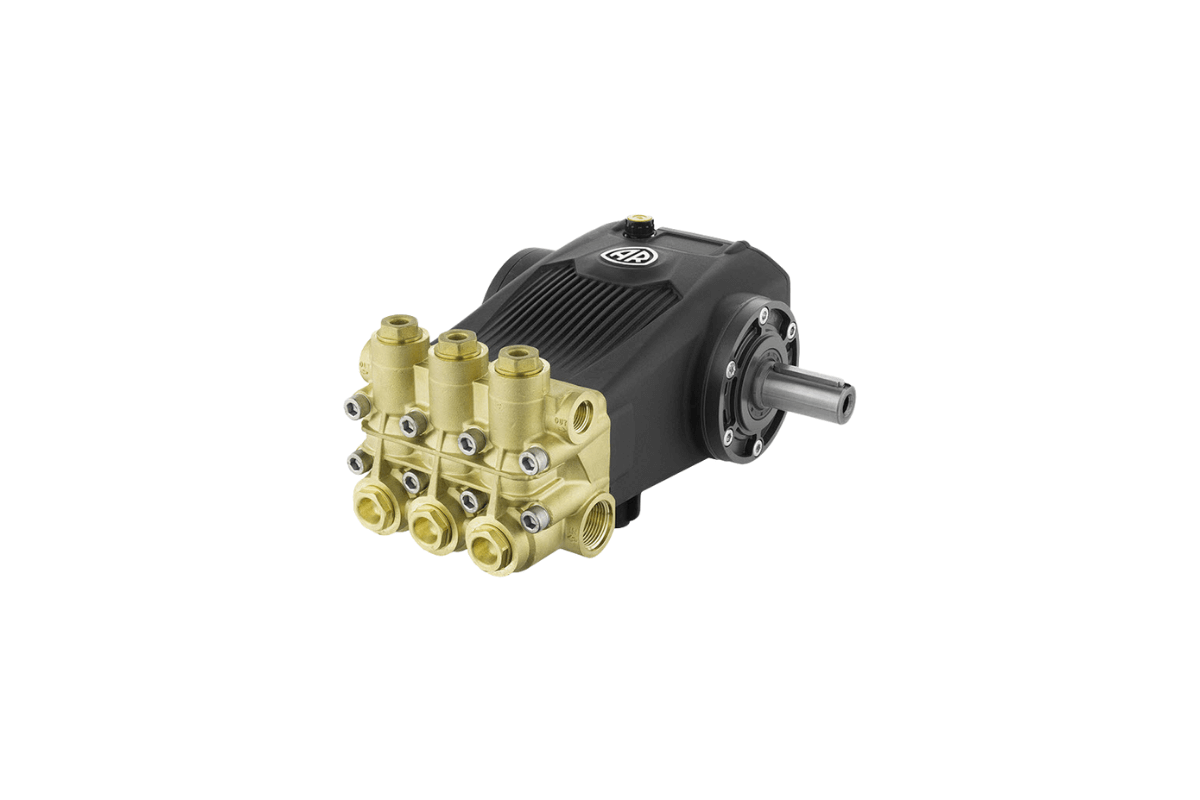

RF Series

When the job calls for uncompromising power, durability, and uptime, the Annovi Reverberi RF Series delivers. Engineered in Italy with precision materials, the RF pump family is built for the most demanding industrial cleaning and process applications. With flows up to 10.3 GPM and pressures nearing 5,800 PSI, these solid shaft pumps are trusted worldwide in industries where downtime is simply not an option.
From mining and construction to marine, food processing, and hydrostatic testing, the AR RF Series provides maximum cleaning force, long-term serviceability, and proven industrial performance.

Performance at a Glance

• Flow Range: 5.8 – 10.3 GPM (22–39 L/min)
• Pressure Range: 5,800 – 5,810 PSI
• RPM: 1450 (low RPM operation for cooler, longer life)
• Bore Diameter: 22 mm
• Stroke: 17.5–23 mm depending on model
• Oil Capacity: 1.07 gallons (SAE30 recommended)
• List Price: $2,696.00 (all models)

This blend of high volume and high pressure makes the RF a true industrial workhorse.

Key Engineering Features
Every AR RF pump is designed with heavy-duty, high-wear components for continuous use in extreme environments:

• Heavy-Duty Brass Head → Corrosion resistant and designed for industrial longevity.
• Bronze Connecting Rods → Provide superior strength under high stress.
• Ceramic Plungers → Resist abrasion and extend service intervals.
• Oversized Oil Capacity (1.07 gal) → Keeps the crankcase cool and lubricated during long-duty cycles.
• Solid 30 mm Shaft → Works with direct drive or pulley systems for flexible integration.
• Stainless Steel Valves → Ensure smooth, consistent flow at high PSI.
• Rebuildable Design → Fully supported with AR parts and kits for long-term ownership.

Model Breakdown
The RF Series includes several variants, each tuned for different flow and stroke needs while maintaining nearly 6,000 PSI performance:

• RF22.400N
  • Flow: 5.8 GPM
  • Pressure: 5,800 PSI
  • Stroke: 22 mm
  • Weight: 48.5 lbs
  • Crankshaft Stamp: 1
• RF27.400N
  • Flow: 7.1 GPM
  • Pressure: 5,800 PSI
  • Stroke: 17.5 mm
  • Weight: 48.5 lbs
  • Crankshaft Stamp: 2
• RF36.400N
  • Flow: 9.5 GPM
  • Pressure: 5,800 PSI
  • Stroke: 23 mm
  • Weight: 48.5 lbs
  • Crankshaft Stamp: 3
• RF39.400N
  • Flow: 10.3 GPM
  • Pressure: 5,810 PSI
  • Stroke: 22 mm
  • Weight: 48.5 lbs
  • Crankshaft Stamp: 4

With this lineup, operators can match flow and PSI requirements to the job at hand—whether cleaning a municipal sewer main or prepping steel surfaces in a shipyard.

Applications for the RF Series
The RF pump line is designed for industries where downtime is costly and reliability is critical:

• Mining & Construction – Cleaning heavy machinery, excavators, and trucks in the harshest conditions.
• Shipyards & Marine Industry – Hull cleaning, barnacle removal, corrosion control, and offshore maintenance.
• Industrial Surface Prep – Rust, paint, and coating removal from bridges, steel structures, and infrastructure.
• Pipe & Tank Cleaning – Oil, gas, and wastewater facilities rely on high PSI for sanitation and flow restoration.
• Municipal & Government Use – Hydro-demolition, graffiti removal, and large-scale infrastructure cleaning.
• Manufacturing & Food Processing – USDA-compliant sanitation with hot water compatibility.
• Hydrostatic Testing – Provides the high-pressure water supply required for pipeline and vessel testing.

By offering both high volume and high PSI, the RF is one of the most versatile pumps in AR’s industrial lineup.

Maintenance & Service
Unlike disposable consumer pumps, the RF Series is fully serviceable and rebuildable. AR backs the series with dedicated parts and kits, ensuring operators get years of reliable use.

• Specialty Oil:
  • AR645107 – SAE30 Oil (1.07 gal) – $183.60
• Repair Kits:
  • AR47548 – Valve Kit (6 qty) – Call for pricing
  • AR47549 – Piston Kit Ø22 (3 qty) – Call for pricing
  • AR47551 – Water Seal Kit Ø22 (3 qty) – Call for pricing
  • AR47550 – Oil Seal Kit (3 qty) – Call for pricing
  • AR47552 – Piston Guide Kit Ø22 (3 qty) – Call for pricing

Best Practices for Longevity:

• Perform regular oil changes using SAE30 non-detergent oil.
• Replace seals and valves at scheduled intervals.
• Monitor pump pressure and flow to avoid cavitation or overheating.
• Store pumps in dry, clean environments when not in use.

By following a consistent maintenance plan, RF pumps can last tens of thousands of hours in heavy-duty cycles.

Benefits to Operators
Operators who choose the RF Series gain clear advantages:

• High Volume & High Pressure Together – Efficient cleaning for the biggest jobs.
• Continuous Duty Ready – Oversized oil system keeps the pump cool.
• Rebuildable Design – Extends service life and reduces cost of ownership.
• Industrial Proven – Used globally in energy, marine, mining, and infrastructure.
• Flexible Integration – Compatible with skid mounts, trailers, or stationary wash systems.

Why Choose the RF Series?
The AR RF Series is not designed for entry-level users—it’s built for professional contractors, municipalities, and industrial operators who require maximum performance and uptime.

• Durable Engineering – Built for years of punishing environments.
• Powerful Output – Up to 10.3 GPM at nearly 6,000 PSI.
• Low RPM Operation – Runs cooler and extends service life.
• Trusted Global Brand – Backed by AR’s reputation and parts support network.

When pressure, flow, and reliability are critical, the RF Series delivers without compromise.

Conclusion
The AR RF Series sets the benchmark for industrial-grade solid shaft pumps. With its robust construction, high-pressure performance, and serviceable design, it empowers industries to handle the toughest cleaning and process challenges.
From hydrostatic testing and pipe cleaning to marine hull maintenance and mining equipment washdowns, the RF pump ensures consistent results, minimal downtime, and maximum durability.
If your operation demands extreme-duty cleaning power, the AR RF Series is the pump line that will stand the test of time.
