An unloader sized for a contractor rig will not work on a facility system. Once flow climbs past what the valve’s ports can pass, the unloader itself becomes the restriction: pressure builds where it should not, bypass water heats, and the valve fails early.

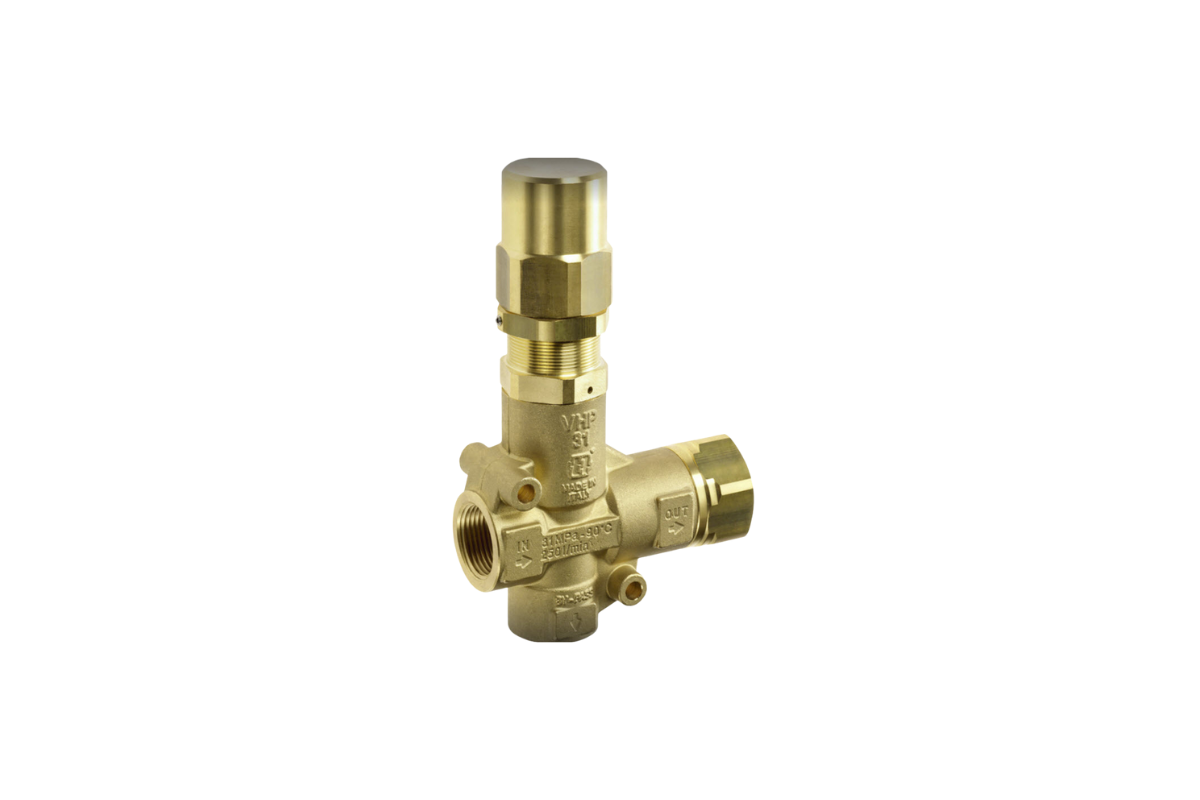

The VHP31/250-170 is the high-flow end of the unloader range: 1 in inlet, outlet and bypass ports, rated 2,465 PSI, brass body, adjustable spring.

VHP31/250-170 specification

• Max pressure: 2,465 PSI
• Ports: 1 in inlet, outlet and bypass
• Spring: gray, adjustable for pressure regulation
• Body: brass
• Weight: 2.5 lbs
• Dimensions: 8 x 5 x 5 in
• Brand: Mecline, Italy

Confirm the flow rating against AR’s spec sheet for your system before specifying. Port size and pressure are the published figures; the flow capacity depends on the spring and the setting.

Why port size is the whole story

Every unloader does the same job: when the gun closes, pressure spikes, the valve lifts, and water diverts to bypass instead of deadheading the pump.

What changes with scale is the plumbing. A 3/8 in bypass port is fine on a 4 GPM rig. On a system moving tens of gallons per minute, that same port turns bypass into a restriction, which means pressure does not drop properly, water heats fast, and the valve seat erodes.

1 in ports throughout, including the bypass, are what make high-flow bypass work.

Where a valve this size belongs

• Multi-gun systems: several spray stations fed from one pump
• Overhead wash booms for large equipment
• Dust suppression in mining and construction
• Food processing with multiple simultaneous cleaning stations
• Tank wash rigs running continuous flow
• Multi-bay truck washes handling dozens of vehicles a day
• Agriculture: tractors, harvesters, poultry houses, hog barns

The common thread is a facility system rather than a machine. If one person holds one gun, this is the wrong valve.

Choosing across the unloader range

Pressure and flow pull in opposite directions, and the range reflects that.

• Small rigs, up to about 12 GPM: Mini-Matic, Gymatic and VRT3 class valves
• Mid-range, higher pressure: VRT100-330D at 4,800 PSI on 1/2 in NPT, with dual-port and stainless versions available
• Ultra high pressure: VHP70-700 at 10,150 PSI, VHP80-800 at 12,800 PSI in stainless
• High flow, moderate pressure: VHP31/250-170

Match the valve to whichever of the two your system is pushing on. A valve rated for both extremes does not exist.

Installing the VHP31/250-170

• Match or exceed the port size in your plumbing. Fitting a 1 in valve into 1/2 in pipe defeats the purpose entirely.
• Keep the bypass run short and direct. Sweeping bends, no tight elbows.
• Add thermal relief, or return bypass to a supply tank. At high flow, bypass water heats quickly, and the tank is what absorbs it.
• Mount it solidly. Vibration stresses a brass body, and a cracked body at 2,465 PSI is a serious failure.
• Filter the supply. Large systems move more water and therefore more contamination past the valve seat.

VHP31/250-170 maintenance

• Inspect weekly for leaks, noise or wandering pressure
• Treat seals as consumables in high-use facilities and replace them annually rather than on failure
• Keep rebuild kits on hand: springs, poppets and O-rings
• Flush regularly, because scale and detergent residue shorten valve life

On a facility system the stakes are different from a single washer. An unloader failure here does not stop one operator, it stops every station fed by that pump.

Browse the full regulator and unloader range, or send your total system flow and working pressure and you will get a valve matched to both.
