AR XWL Series Solid Shaft Pumps

When it comes to high-performance industrial pressure washing and fluid handling, reliability is non-negotiable. The Annovi Reverberi (AR) XWL Series solid shaft pumps are engineered to deliver outstanding performance in demanding environments. These pumps are trusted in applications where consistent flow, high pressure, and long service life are essential.

The XWL family offers a range of flow outputs from 10.8 GPM up to 13.2 GPM, with pressures topping out at 3,000 PSI. Designed for pulley driving or direct electric motor coupling, these units are purpose-built for commercial and industrial duty cycles where downtime is costly and durability is king.

Key Specifications

Each XWL model is designed around the same rugged platform, with variations in flow and stroke size to meet different industrial requirements.

• Operating Speed: 1450 RPM
• Shaft Type: 24 mm solid shaft (N version)
• Oil Capacity: 31.8 oz
• Max Water Temp: 140°F
• Pump Head Material: Brass with nickel-plated options available
• Connecting Rods: Aluminum or bronze depending on duty cycle

Model Breakdown

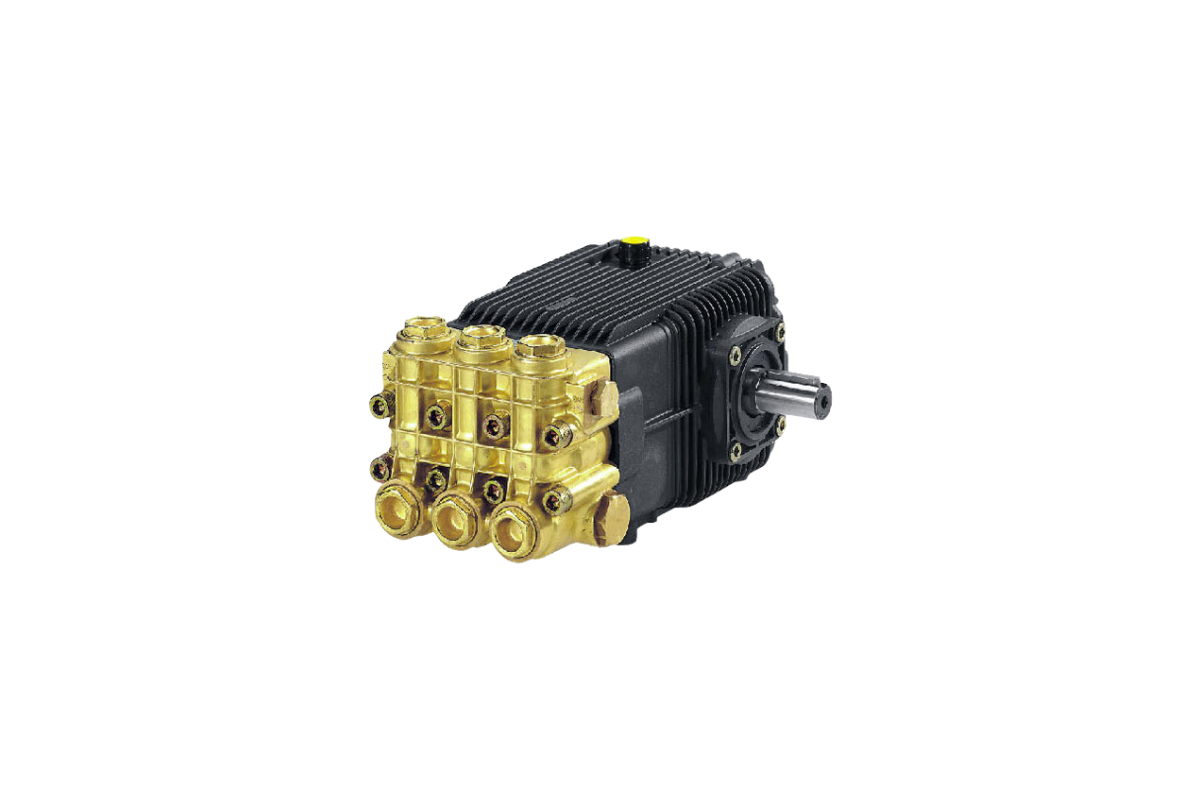

• XWL50.15N – 13.2 GPM, 2200 PSI, 20.0 EBHP, weight 34 lbs
• XWL55.14N – 14.5 GPM, 2000 PSI, 20.0 EBHP, weight 34 lbs
• XWL60.13N – 15.9 GPM, 2000 PSI, 20.7 EBHP, weight 34 lbs
• XWL65.12N – 17.2 GPM, 1740 PSI, 21.0 EBHP, weight 34 lbs
• XWL70.12N – 18.5 GPM, 1740 PSI, 22.0 EBHP, weight 34 lbs
• XWL70.12HN – 18.5 GPM, 1740 PSI, 22.0 EBHP, weight 34 lbs (high-output variant with extended stroke)

Why Choose the XWL Series?

The XWL series strikes the perfect balance between flow and pressure, making it versatile across a wide range of industries. AR has engineered these pumps with oversized bearings, premium seal kits, and a robust crankcase design to handle long run times and heavy loads.

Here’s why contractors and facility managers choose the XWL:

• Heavy-Duty Brass Head – Corrosion-resistant for long-term durability.
• Nickel-Plated Options – Extra protection against aggressive water conditions.
• Bronze & Aluminum Connecting Rods – Engineered for strength, thermal stability, and smoother operation.
• 1450 RPM Low Speed Operation – Reduces wear, increases service life, and lowers noise levels.
• Standardized Mounting – Compatible with AR rail kits, making retrofits or new builds fast and simple.
• Service-Friendly Design – Readily available repair kits for valves, pistons, seals, and guides keep maintenance simple.

Industry Applications

The XWL pumps are true workhorses for high-demand cleaning and processing environments. Their flow and pressure balance makes them suitable for both cleaning contractors and specialized industries.

Common Applications Include:

• Fleet & Vehicle Washing – Trucking fleets, bus depots, and rental companies.
• Food Processing Plants – Sanitation and USDA-compliant washdown.
• Municipalities – Sidewalk cleaning, graffiti removal, and facility maintenance.
• Construction & Heavy Equipment – Excavators, loaders, and concrete trucks.
• Manufacturing & Recycling Facilities – General cleaning, degreasing, and waste management operations.
• Agriculture & Farming – Hog barns, poultry houses, and crop equipment sanitation.
• Marine & Port Services – Vessel washing, dock sanitation, and equipment cleaning.

Parts & Service Support

Every pump will eventually need seal or valve maintenance — and AR makes it easy with factory-supplied parts.

Available Repair Kits:

• Valves (AR42835) – $217.28
• Pistons (AR43444) – $389.36
• Water Seals (AR43446) – $241.93
• Oil Seals (AR43445) – $73.51
• Hot Water Seals (AR46826) – $802.28

Special Mounting Kits:

• Rail Kit 1-1/4” (AR2748) – $32.13
• Rail Kit 2-1/2” (AR2748H) – $90.84
• U-Bracket Kit 1-1/2” (AR2748U) – $135.89
• Oil (16 oz, AR64516) – $15.80

By keeping maintenance streamlined, operators minimize downtime and keep pumps in service longer.

Final Thoughts

The AR XWL Series solid shaft pumps are industrial-grade solutions designed to withstand punishing environments. With flows up to 13.2 GPM and pressures of 3,000 PSI, these pumps offer both versatility and staying power. Whether you’re managing a commercial fleet, running a food processing plant, or operating in municipal cleaning, the XWL delivers dependable performance with a low cost of ownership.

When reliability matters and uptime is critical, the XWL family has proven itself in real-world industrial duty.
